Chevy Truck
>>
2001
>>
K Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
System Diagram
>>

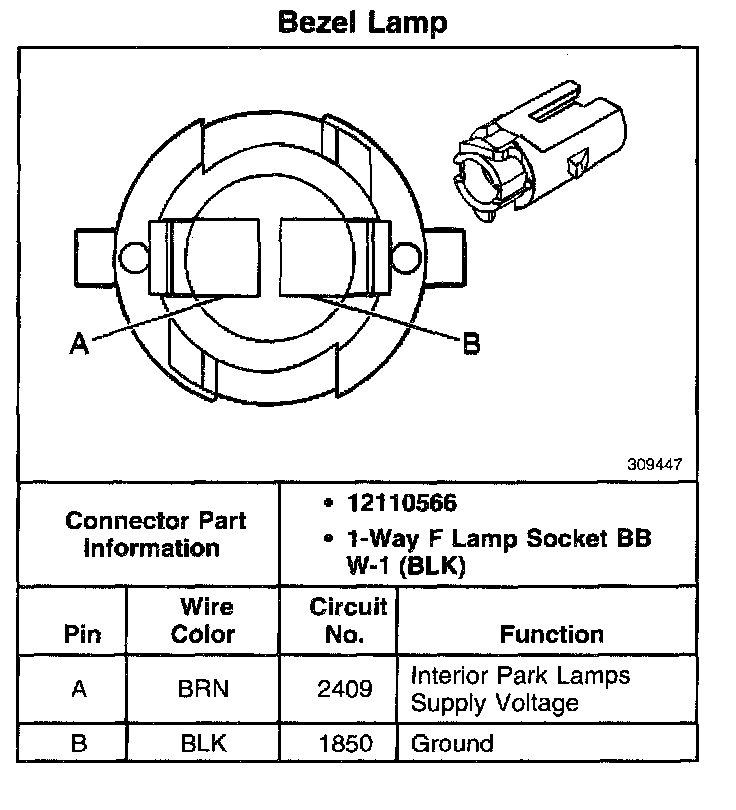

Bezel Lamp
Bezel Lamp
Bezel Lamp:
