Chevy Truck
>>
2001
>>
K Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Doors
>>
Door Contactor - Right-C3
Door Contactor - Right-C3

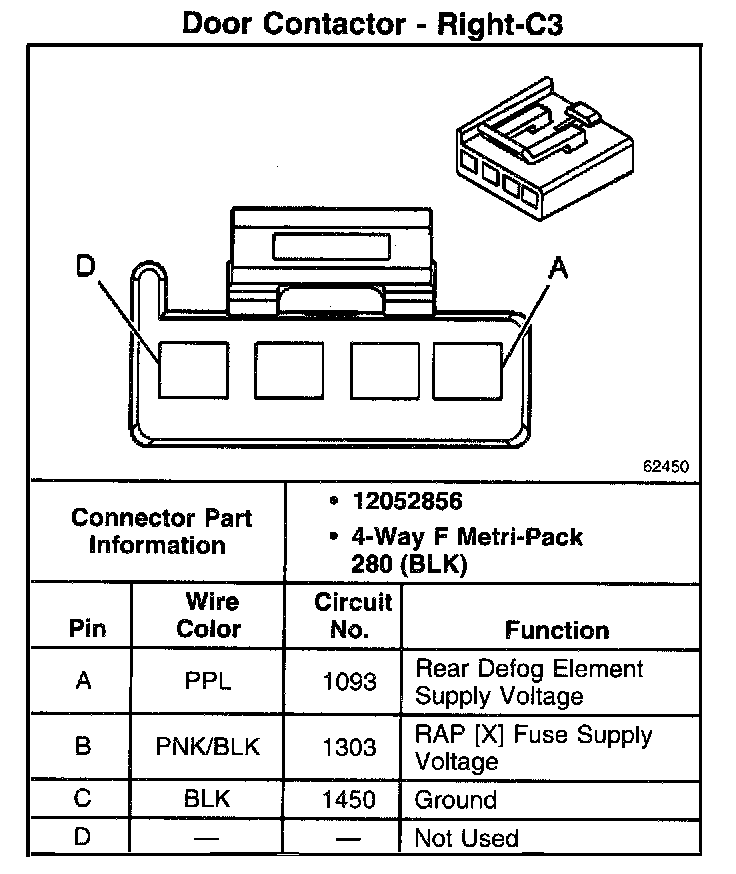

Door Contactor - Right-C3:
