Chevy Truck
>>
2001
>>
K Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
>>

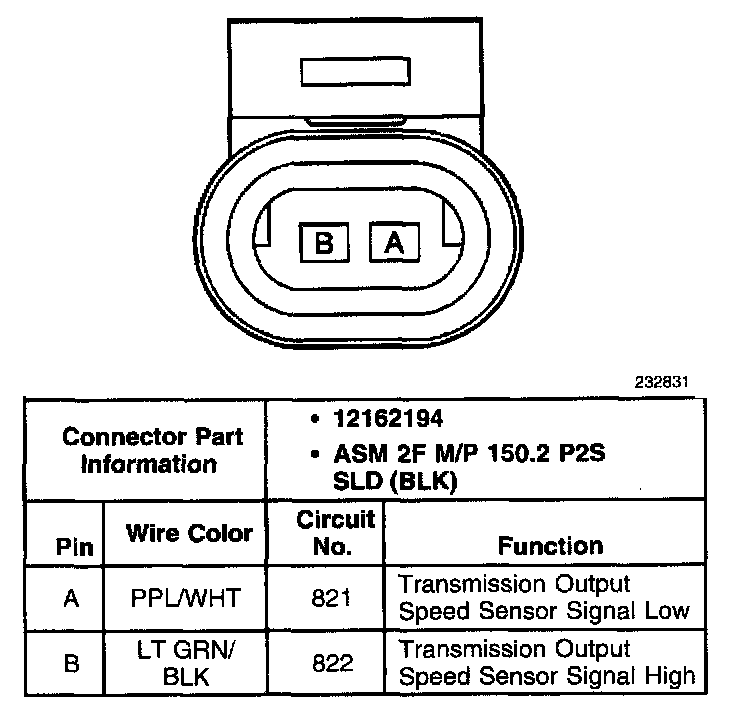

Transmission Output Shaft Speed (at OSS) Sensor Connector
Transmission Output Shaft Speed (at OSS) Sensor Connector
