Coolant Level Switch, Engine Oil Level Switch And Generator

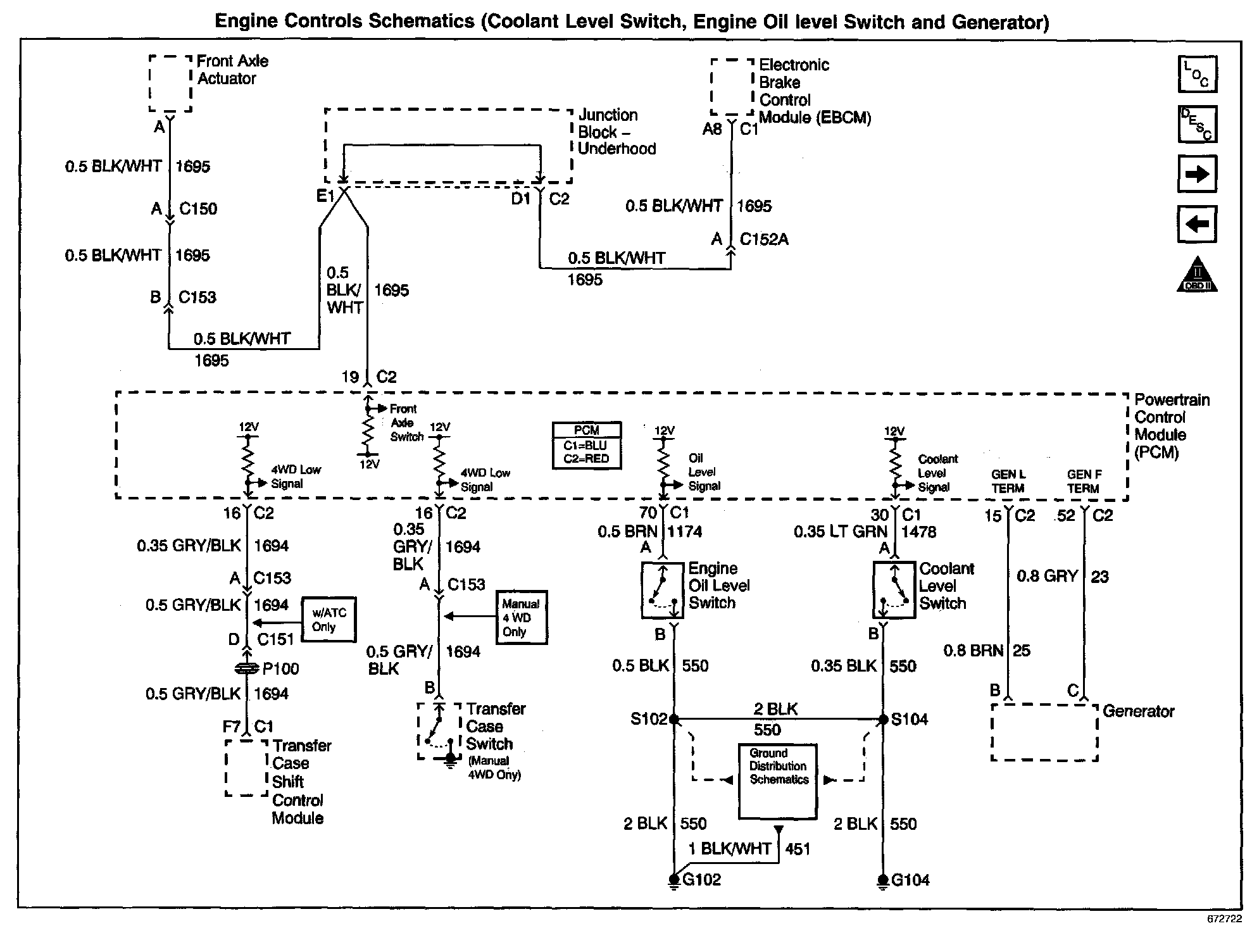

Engine Controls Schematics: Coolant Level Switch, Engine Oil Level Switch And Generator:
