77. Clutch Pilot Bearing Installation

Clutch Pilot Bearing Installation (C/K/C350OHD)

Caution: Refer to Safety Glasses Caution in Service Precautions.

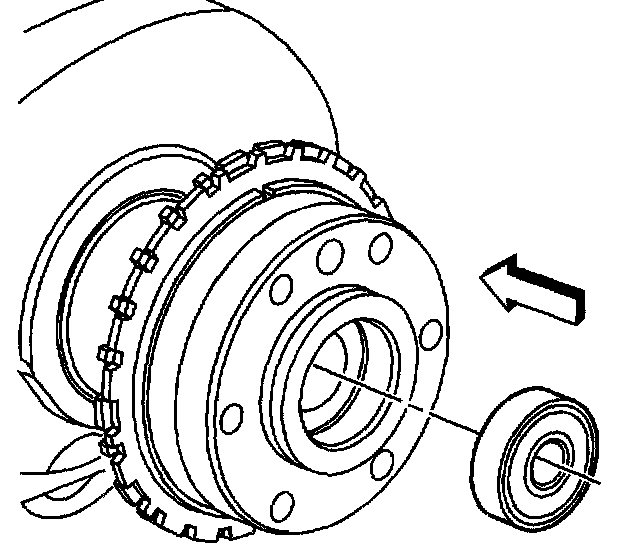

1. Install the NEW clutch pilot bearing.





Important: Make sure the bearing is installed parallel to the rear of the crankshaft.

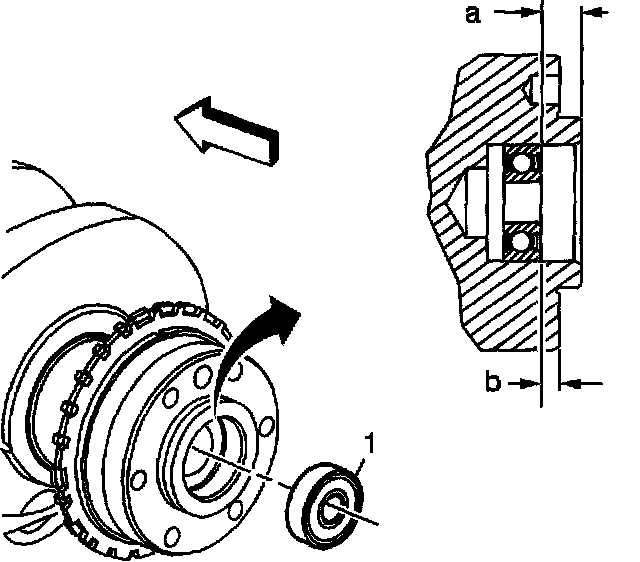

2. Measure to ensure the proper installation depth is obtained. The bearing (1) should be (A) 14.650 - 15-650 mm (0.577 - 0.616 inch) from the lip of the crankshaft, or (13) 6.400 - 7.400 mm (0.252 - 0.291 inch) from the crankshaft flange.
