Air Injection Vacuum Control Solenoid Valve
Air Injection Vacuum Control Solenoid Valve

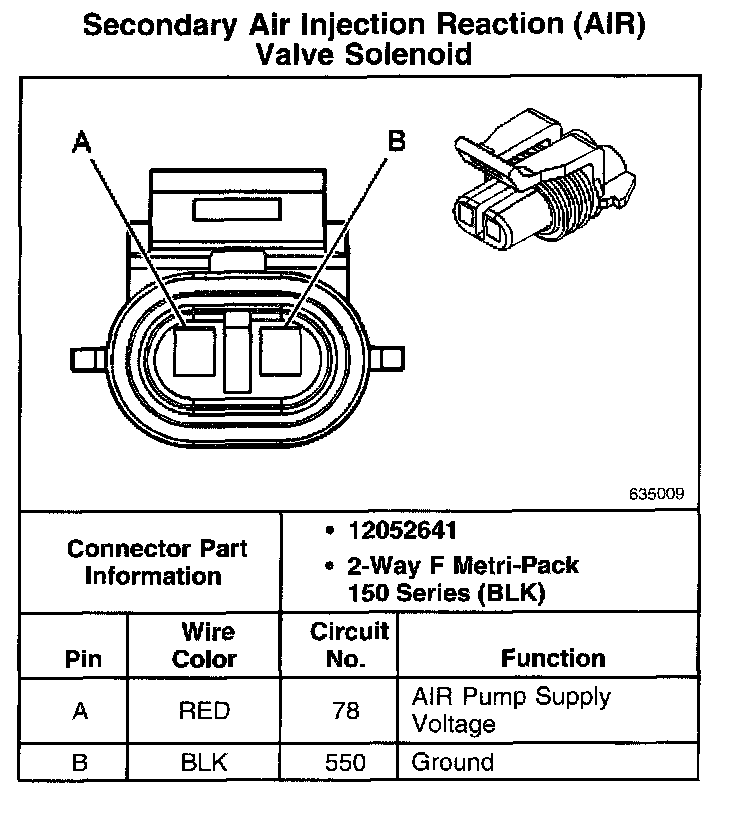

Secondary Air Injection Reaction (AIR) Valve Solenoid:
