Rear Quarter Lower Trim Panel Replacement

Rear Quarter Lower Trim Panel Replacement

Removal Procedure

1. Remove the pocket from the lower panel, if equipped.

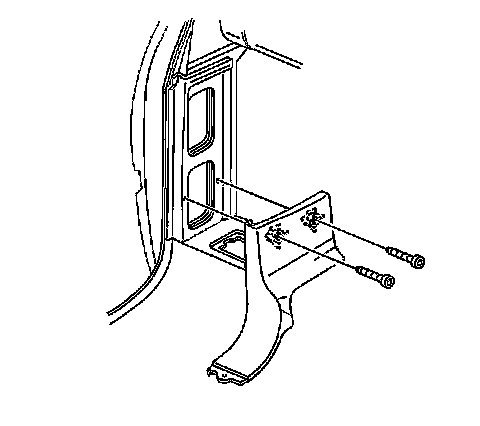

2. Remove the lower panel screws.
3. Remove the lower rear quarter trim panel from the vehicle.



Installation Procedure





1. Install the lower rear quarter trim panel to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the lower rear quarter trim panel screws.

Tighten the screws to 6 N.m (53 lb in).

3. Install the pocket to the lower panel, if equipped.
