Door Lock Switches And Relays (Base)
Door Lock Switches And Relays (Base)

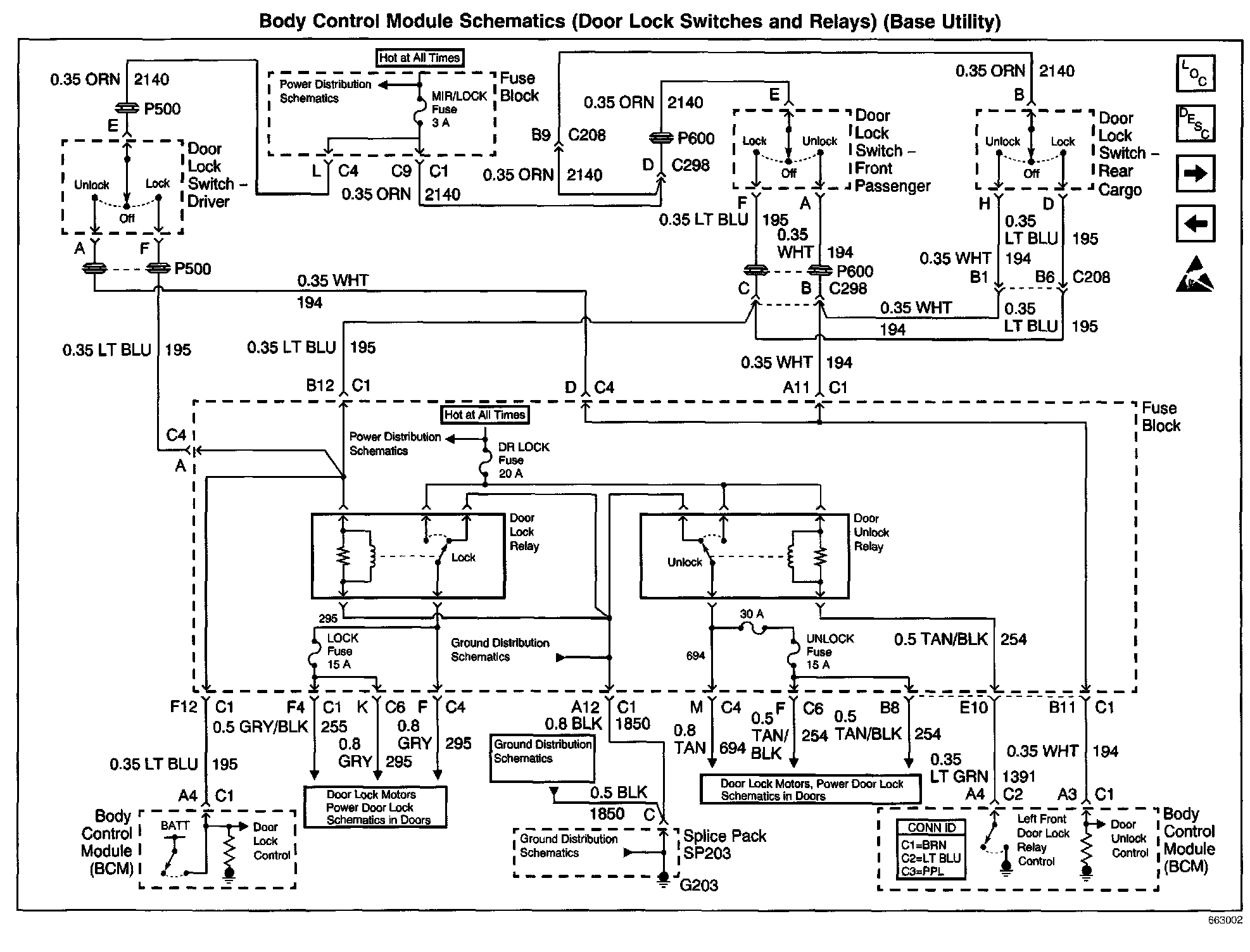

Body Control Module Schematics: Door Lock Switches And Relays (Base Utility):
