Chevy Truck
>>
2001
>>
K 1500 Truck 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

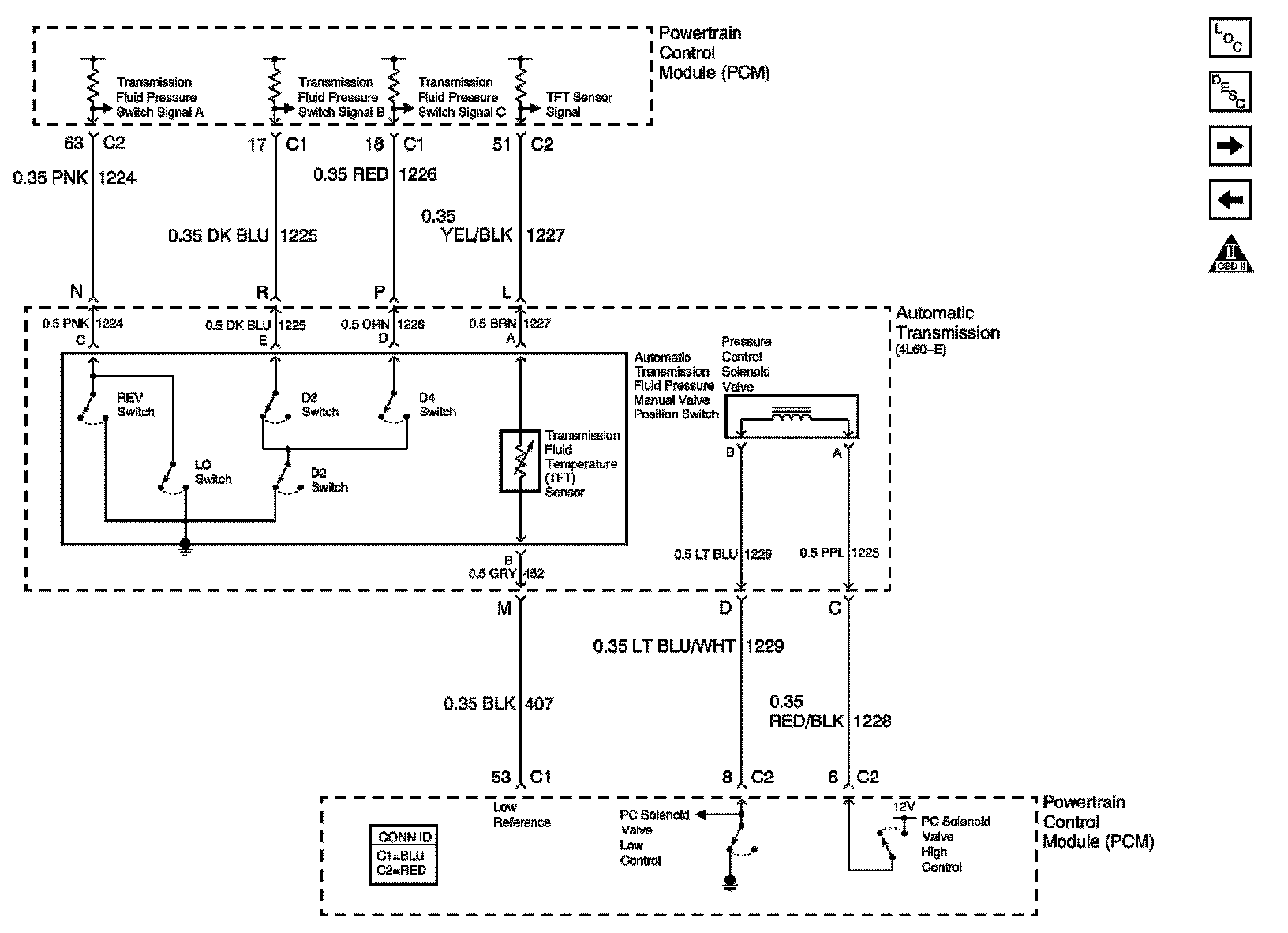

TFT Sensor and Pressure Control Solenoid
TFT Sensor and Pressure Control Solenoid
