Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2001
>>
Express 3/4 Ton Van V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

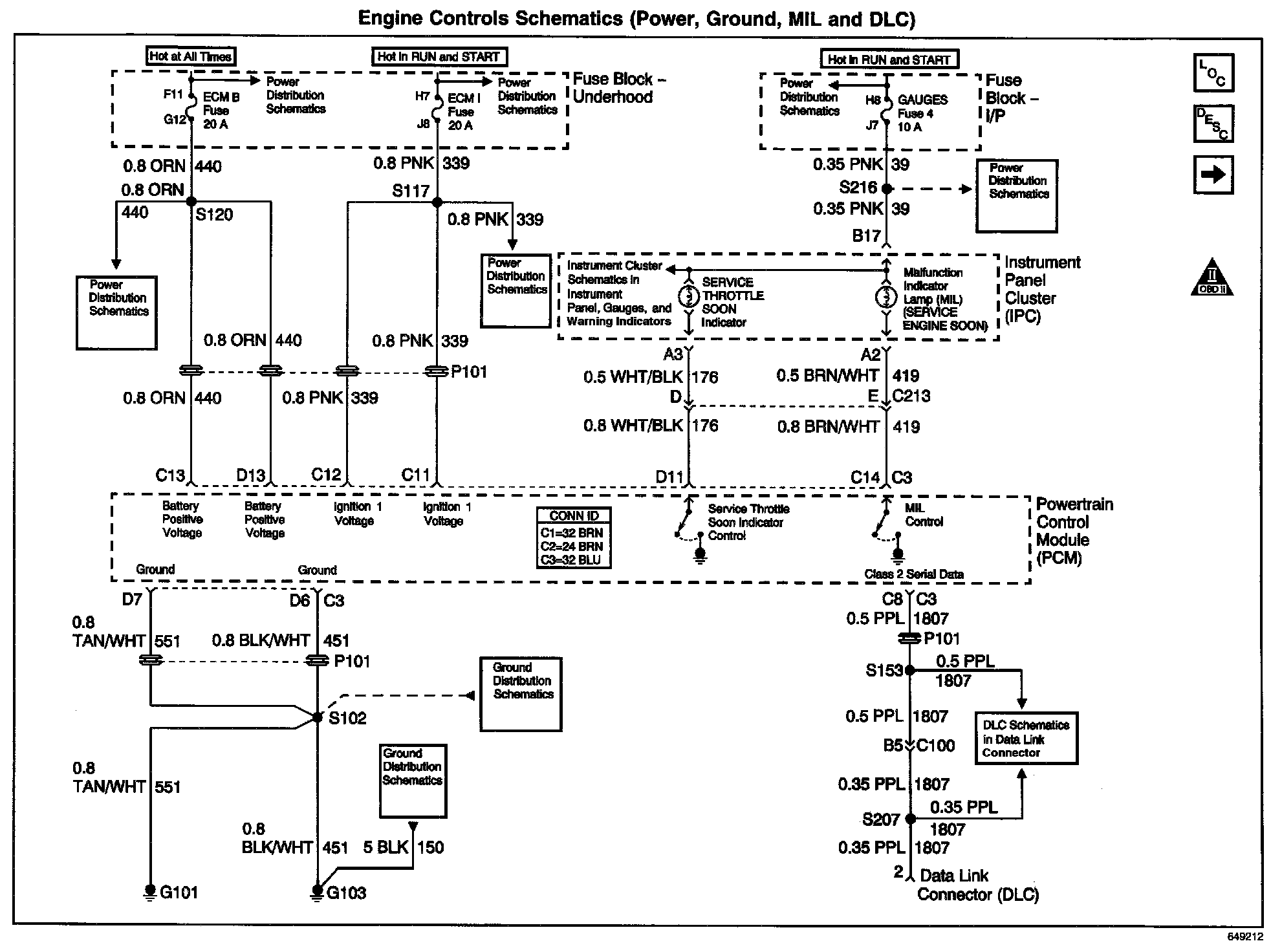

Engine Controls Schematics: Power, Ground, MIL And DLC:
