Chevy Truck
>>
2001
>>
Express 3/4 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
BI-Fuel/Alternative Fuels
>>
C001
C001

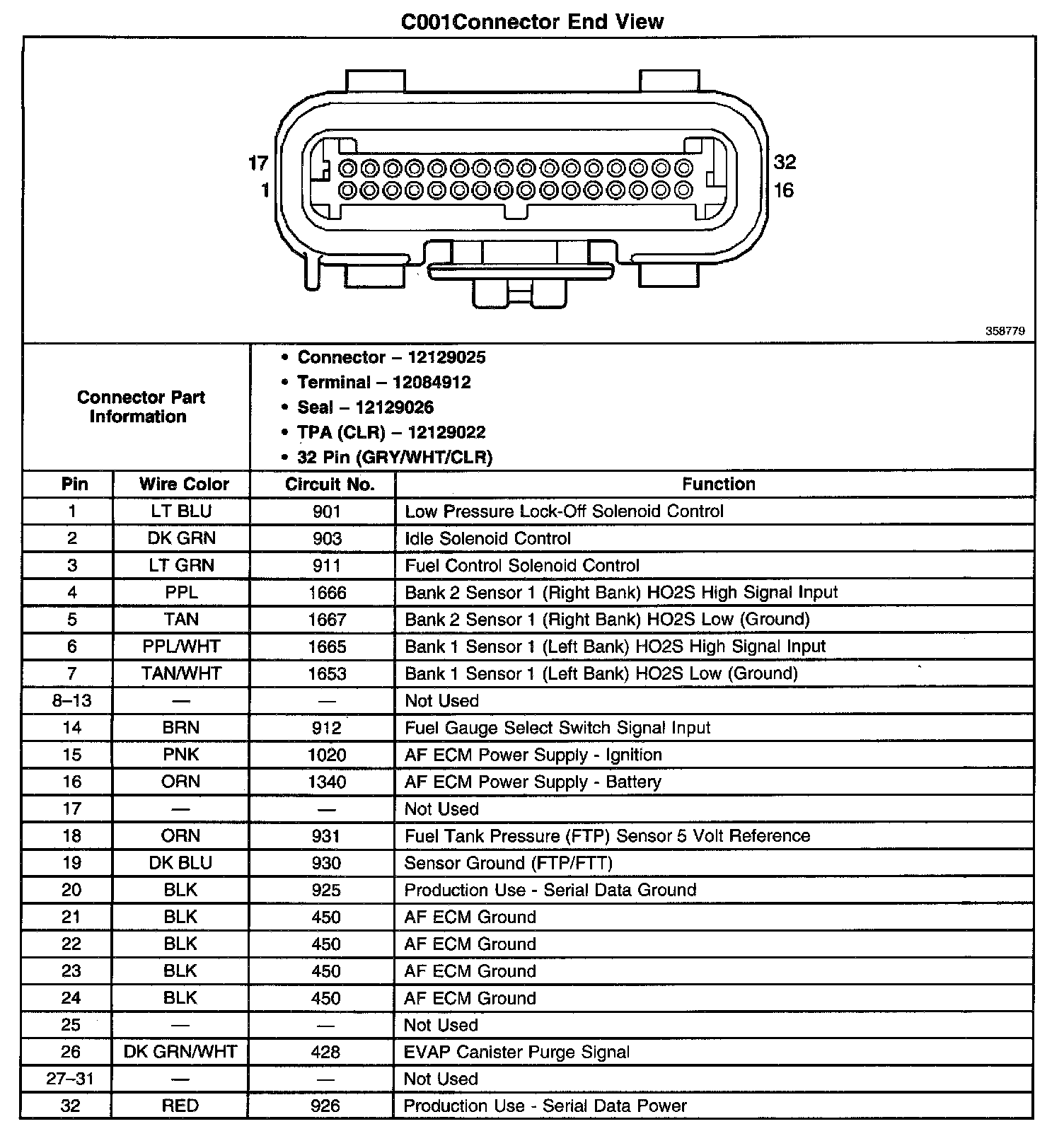

C001 Connector End View:
