Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
System Diagram

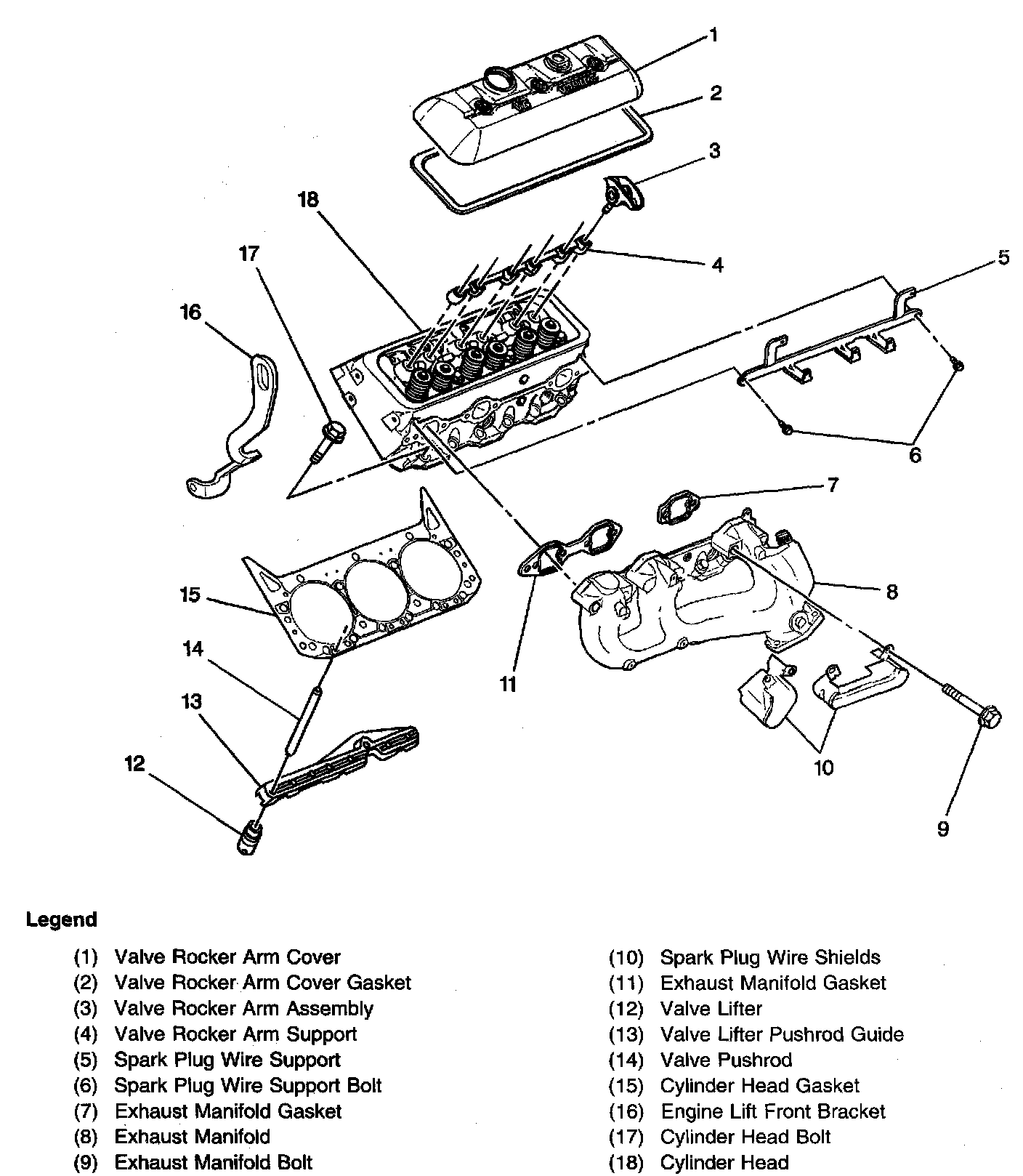

Upper Engine View 1

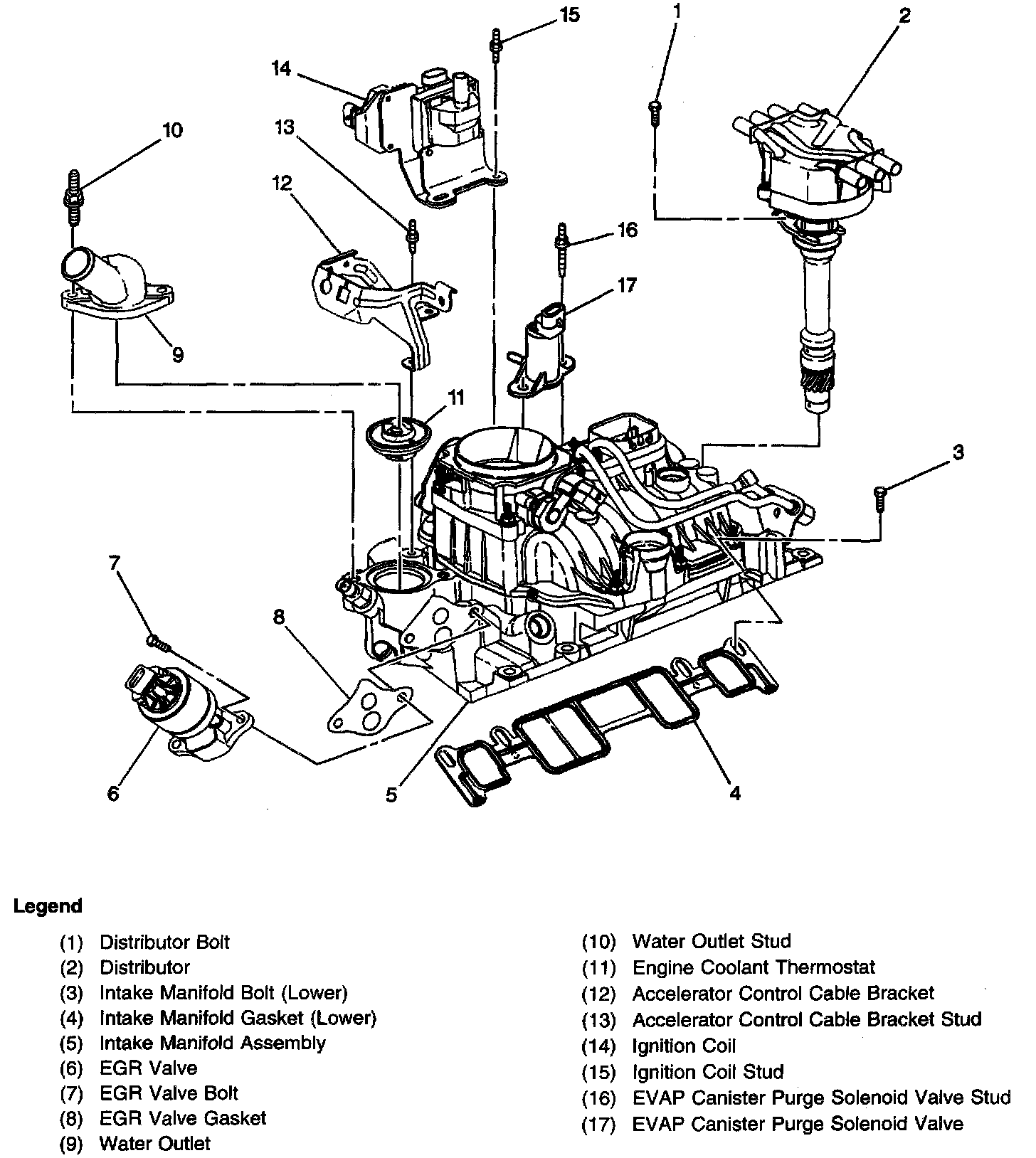

Upper Engine View 2

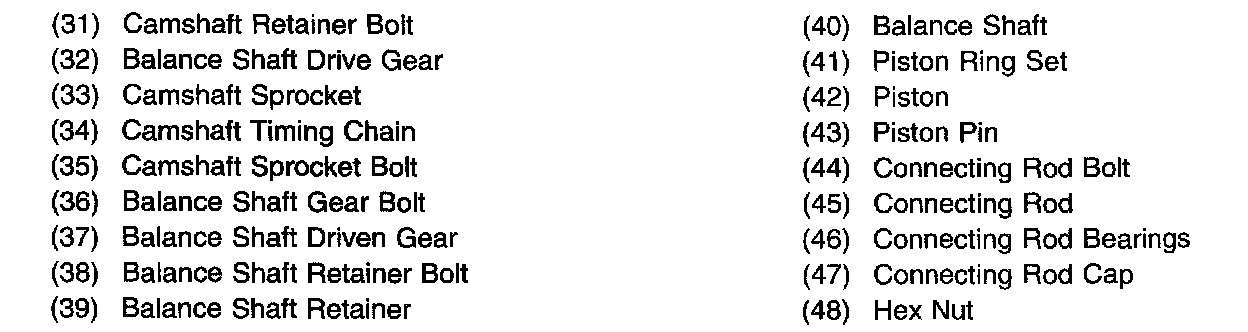

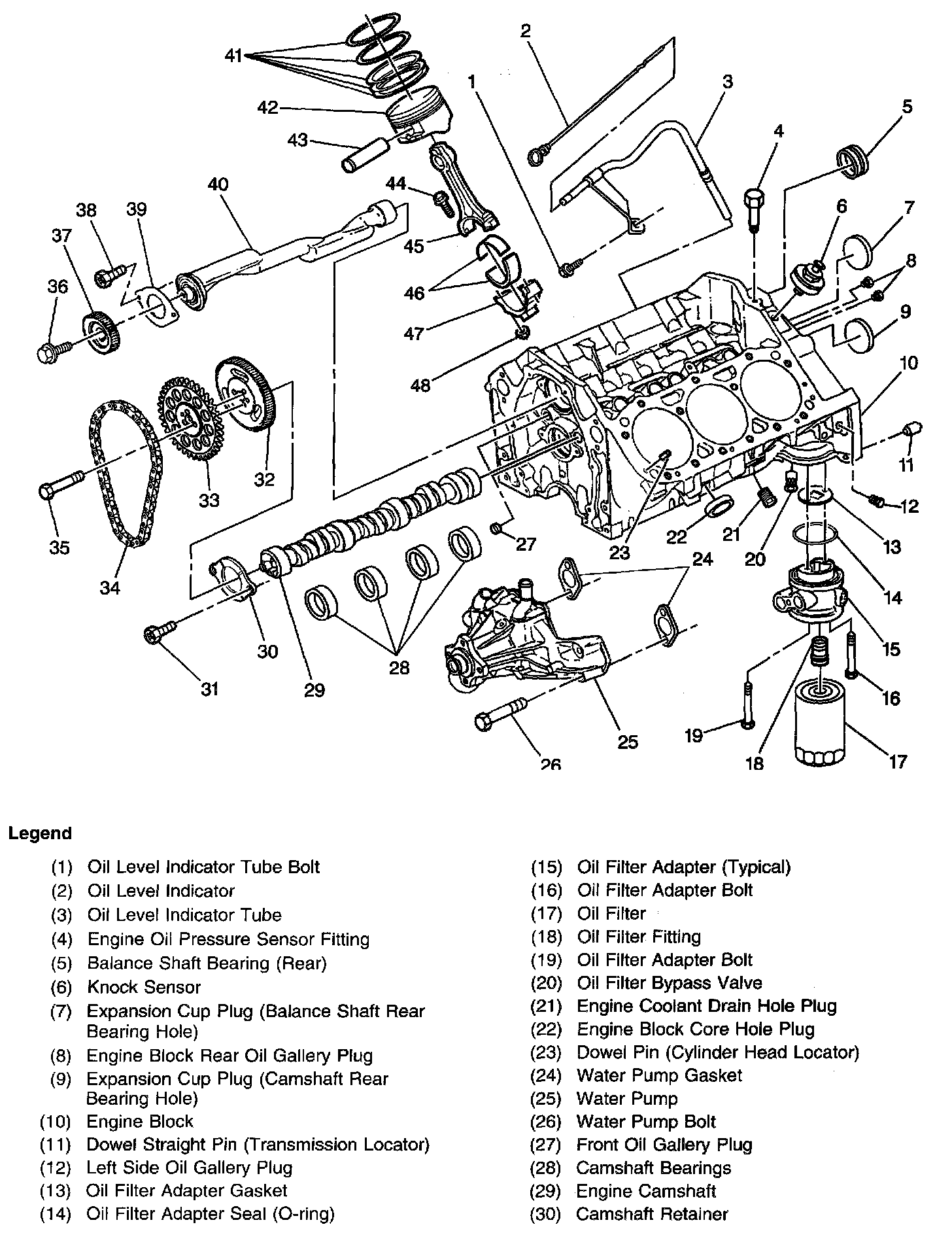

Lower Engine View 1

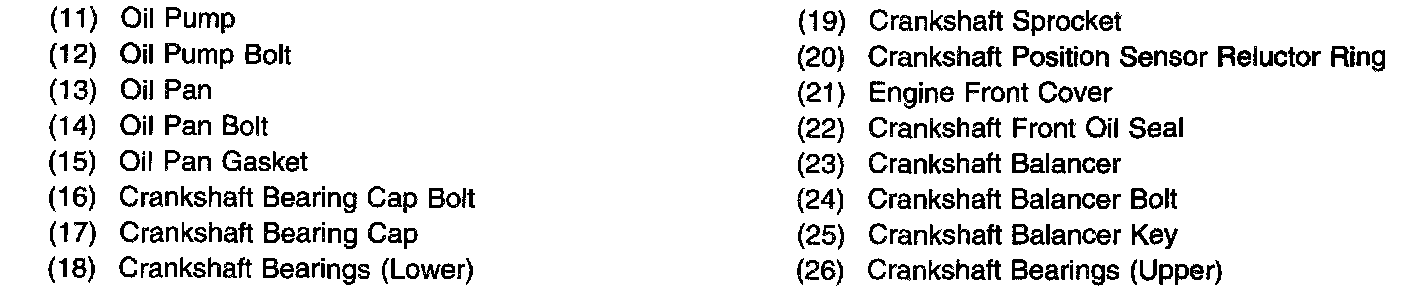

Lower Engine View 2
