Fuel Injector Controls

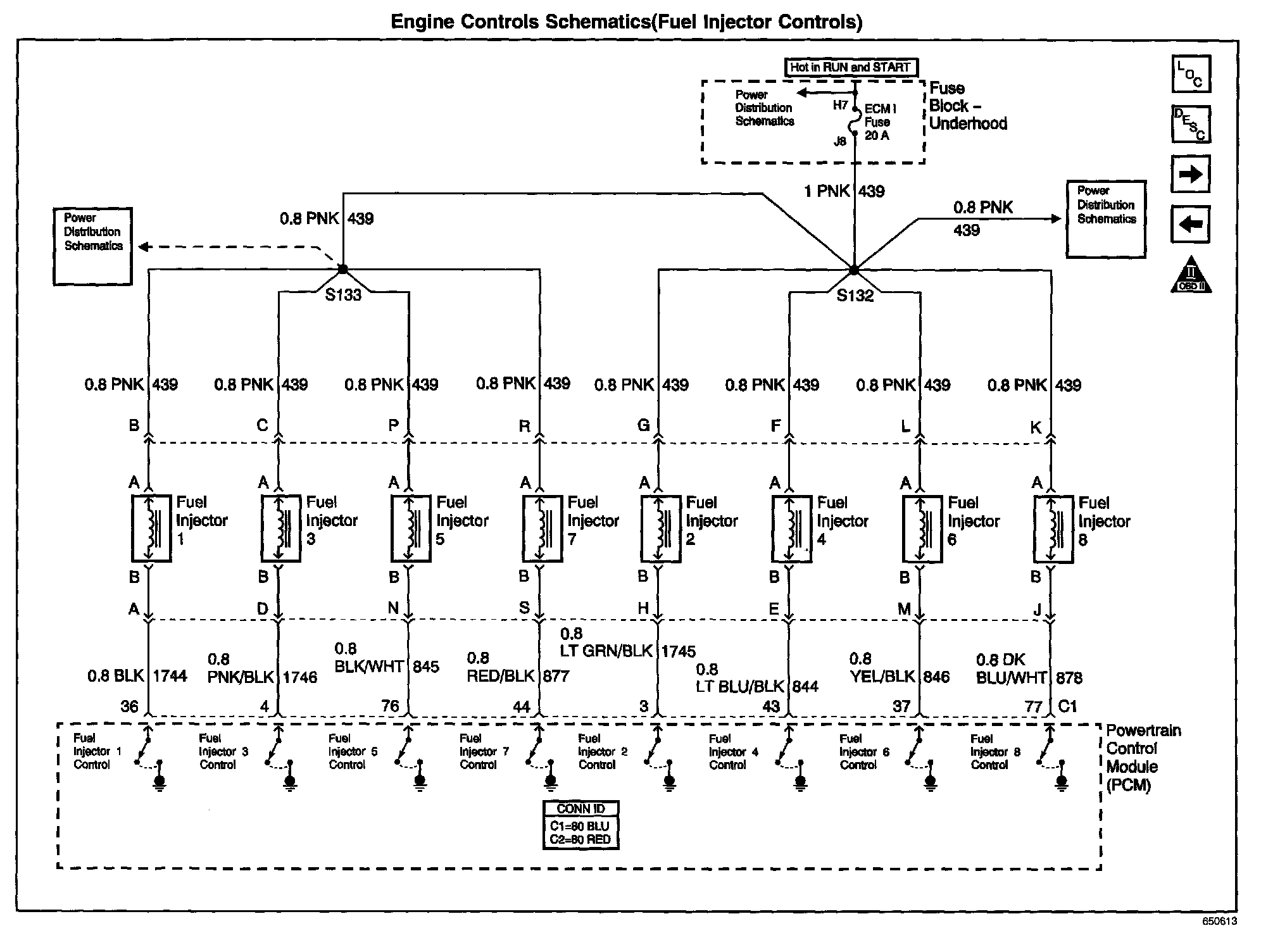

Engine Controls Schematics: Fuel Injector Controls - Standard Models (Non-Alternative Fuels):
