Engine Data Sensors, FTP And FTT

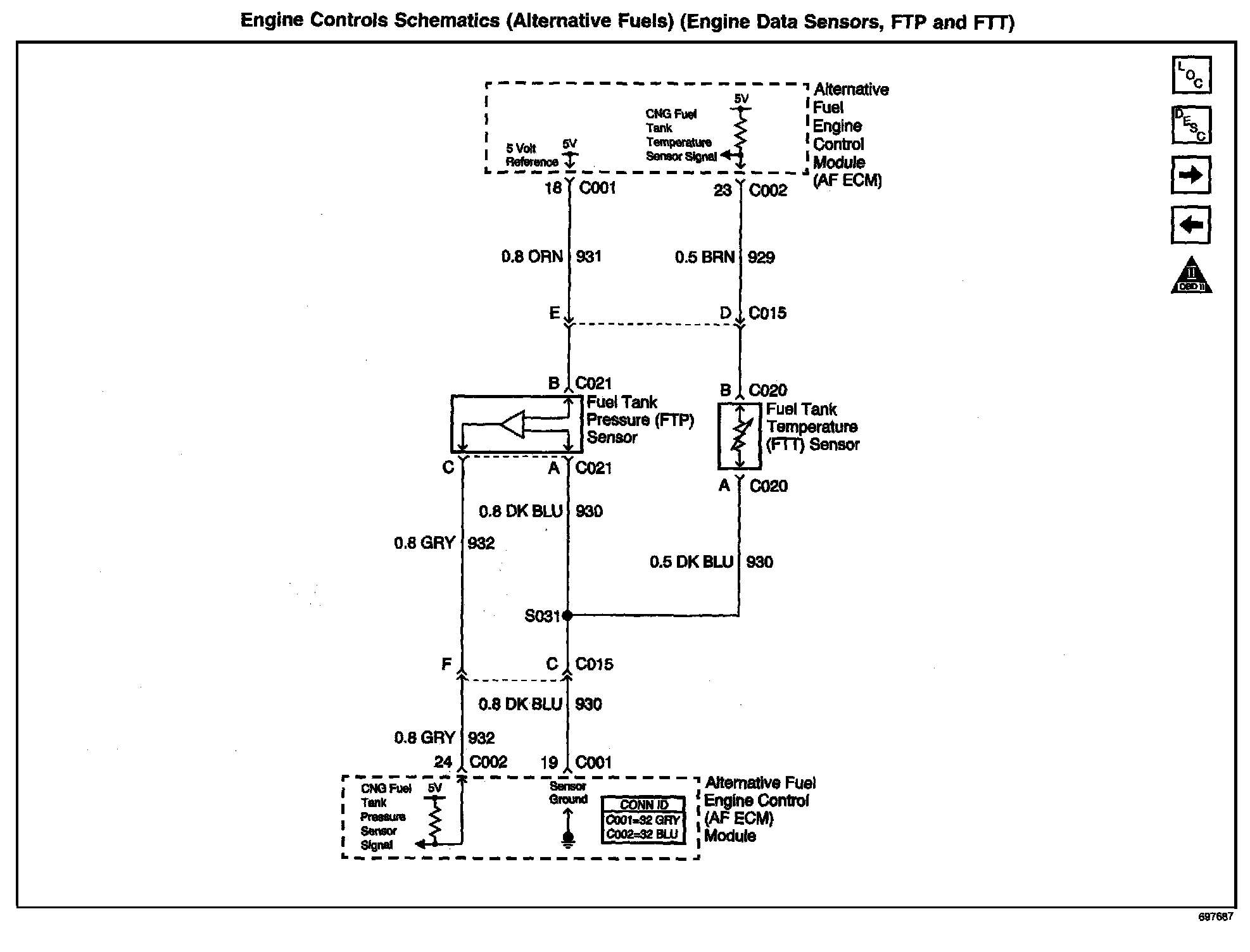

Engine Controls Schematics: Alternative Fuels (Engine Data Sensors, FTP And FTT):
