Home >> Chevy Truck >> 2001 >> Express 1/2 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Theft Deterrent System Schematics (Export Only) >> Rear Lamps

Rear Lamps

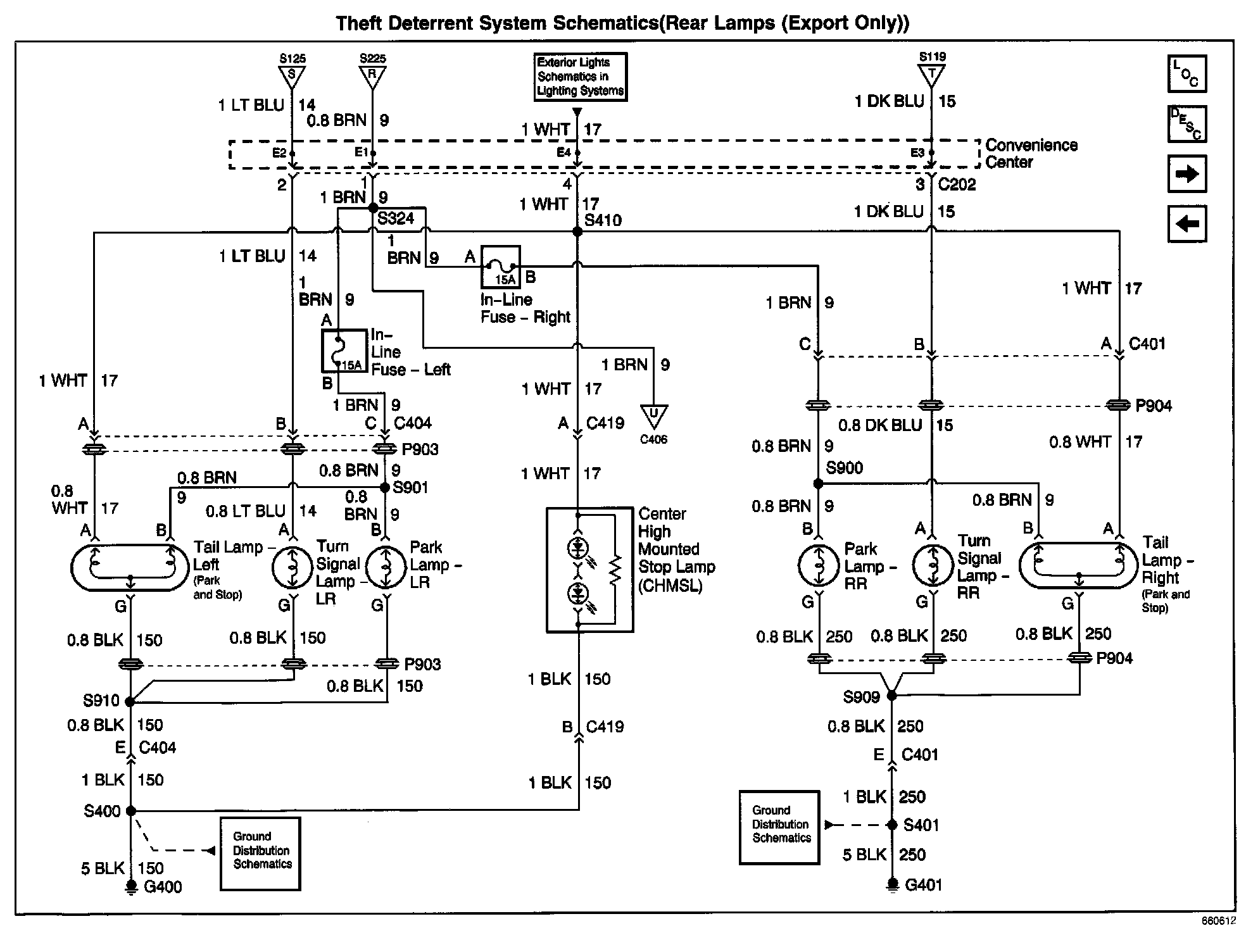

Theft Deterrent System Schematics: Rear Lamps (Export Only):
