Home >> Chevy Truck >> 2001 >> Express 1/2 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Theft Deterrent System Schematics (Export Only) >> License Plate Lamps

License Plate Lamps

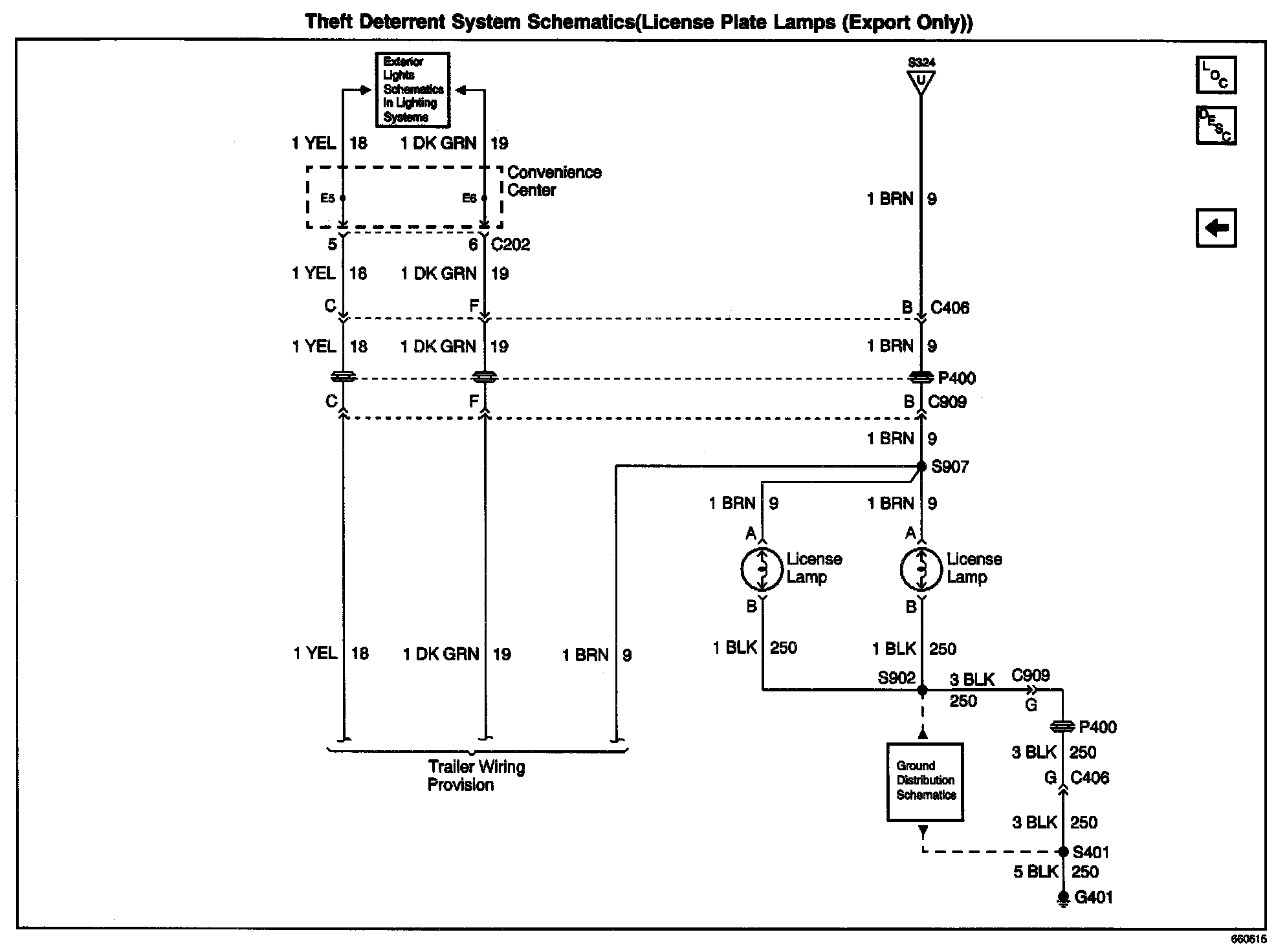

Theft Deterrent System Schematics: License Plate Lamps (Export Only):
