Refrigerant Pressure Sensor / Switch, HVAC
>>
A/C Compressor Low Pressure Cutoff Switch
A/C Compressor Low Pressure Cutoff Switch

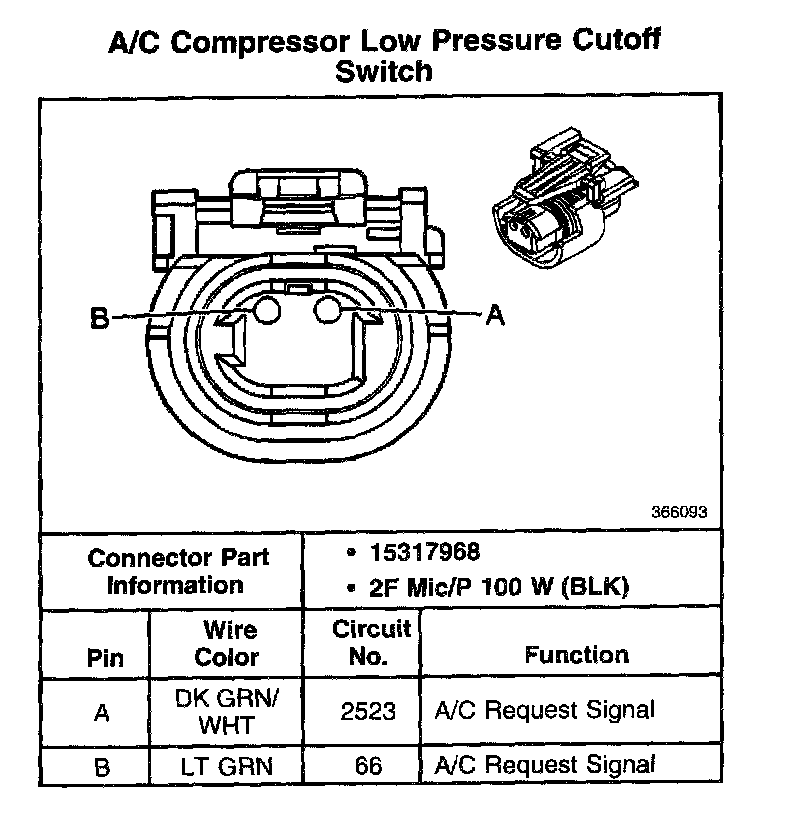

A/C Compressor Low Pressure Cutoff Switch:
