Home
>>
Chevy Truck
>>
2001
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Amplifier, Sound System
>>
Bose 2000 AMP Amplifier - 1
Bose 2000 AMP Amplifier - 1

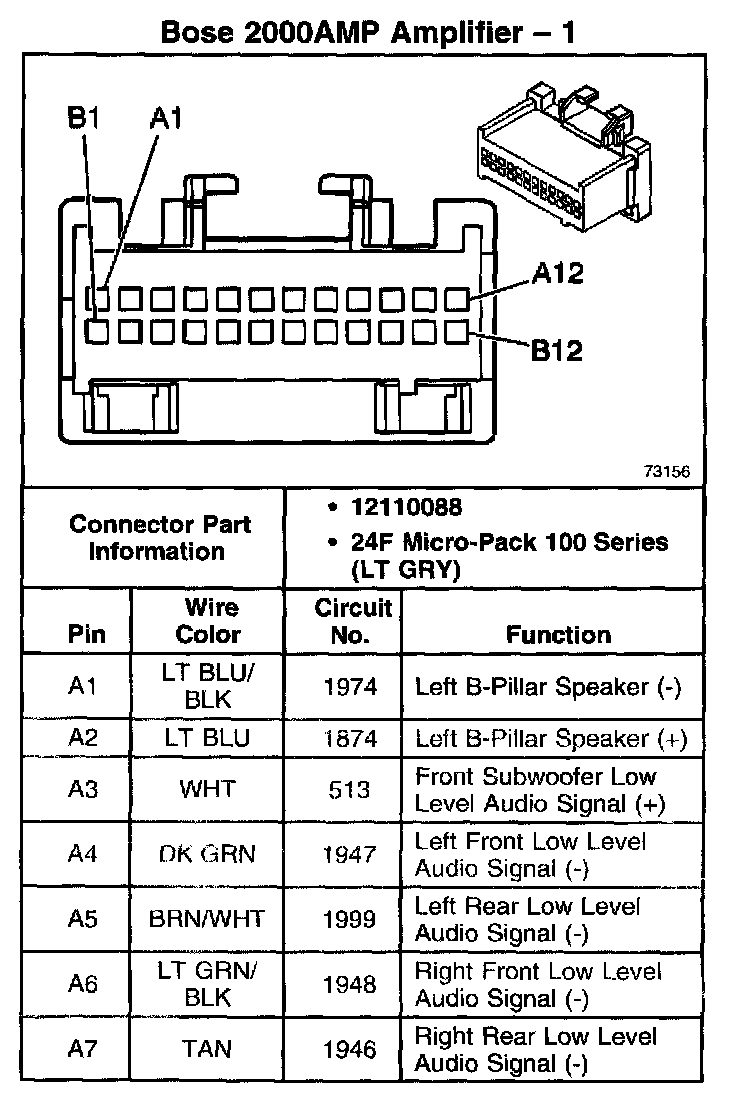

Bose 2000AMP Amplifier - 1 (Part 1 Of 2):

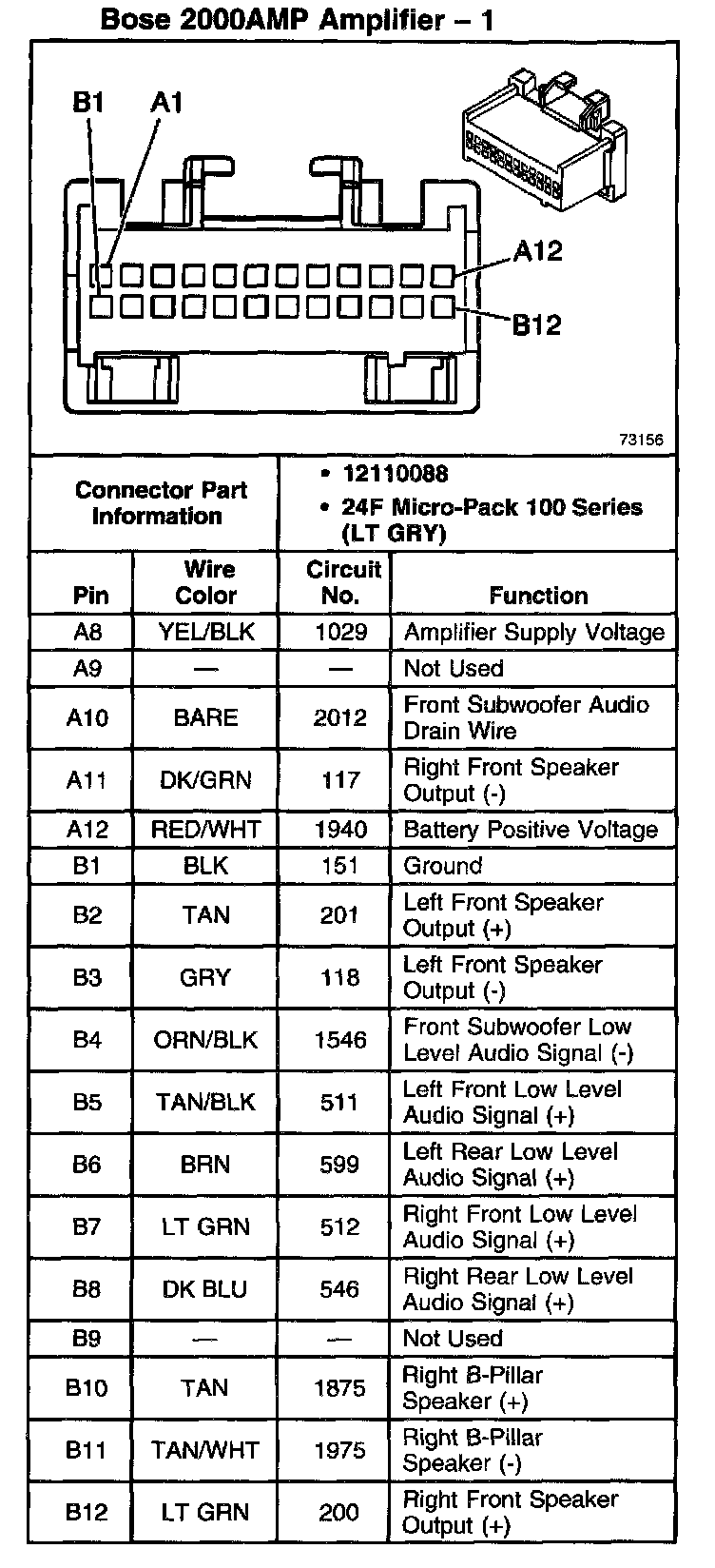

Bose 2000AMP Amplifier - 1 (Part 2 Of 2):
