Chevy Truck
>>
2001
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C400 - C499
>>
C406
C406

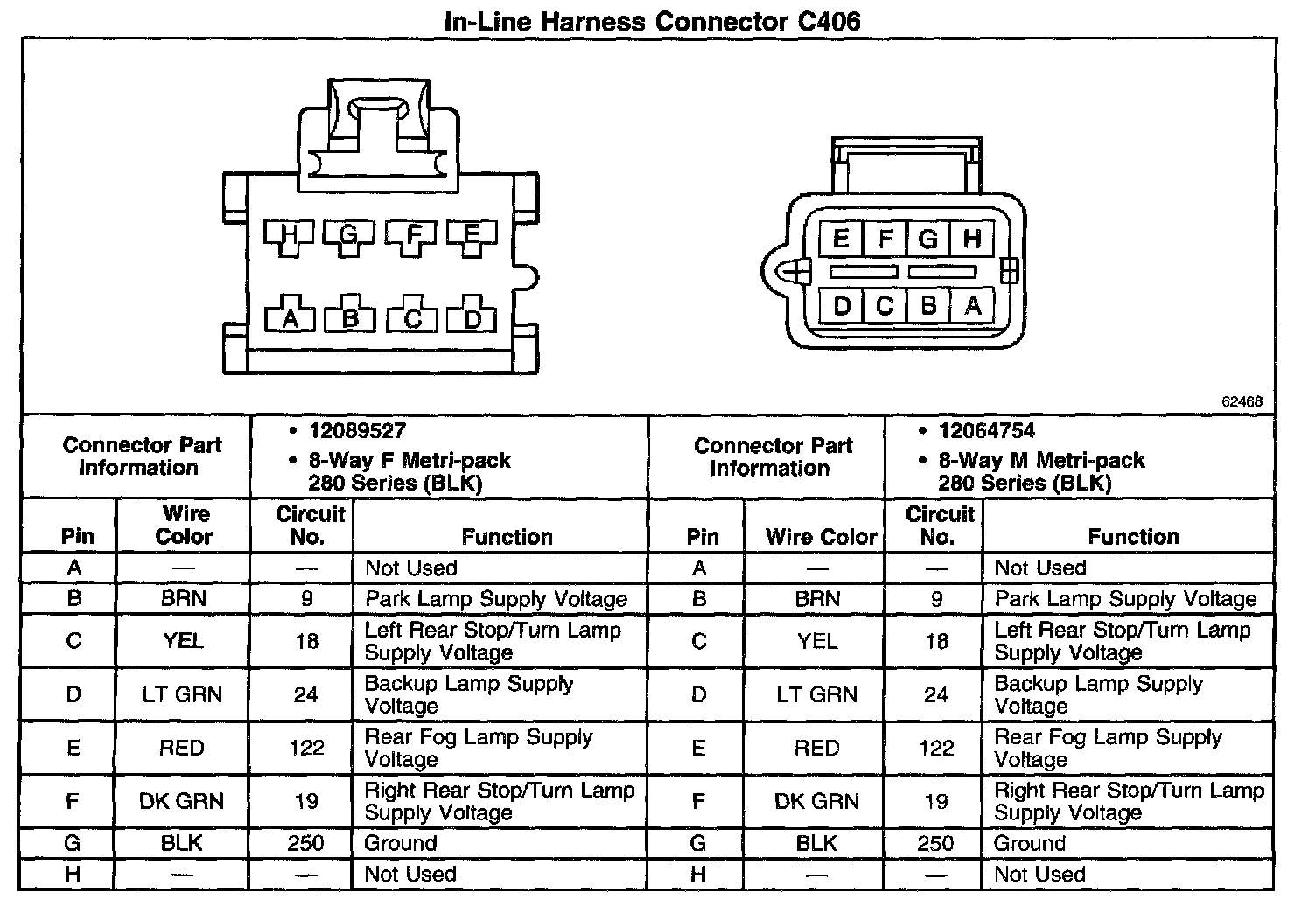

In-line Harness Connector C406:
