Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Fog/Driving Lamp Switch
Fog/Driving Lamp Switch

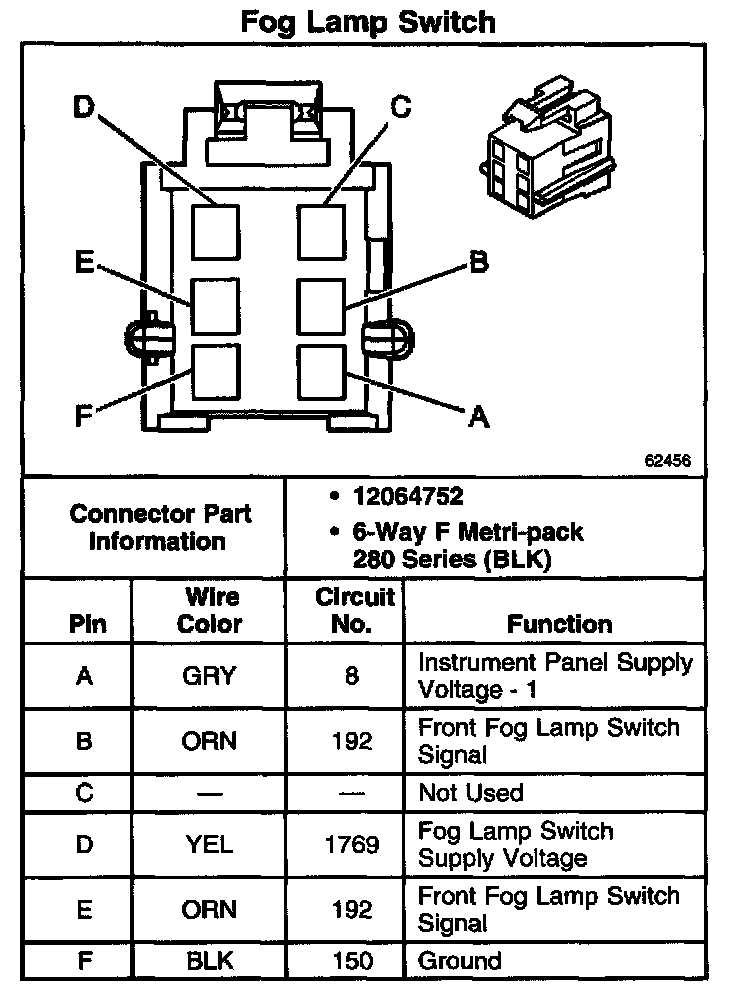

Fog Lamp Switch:

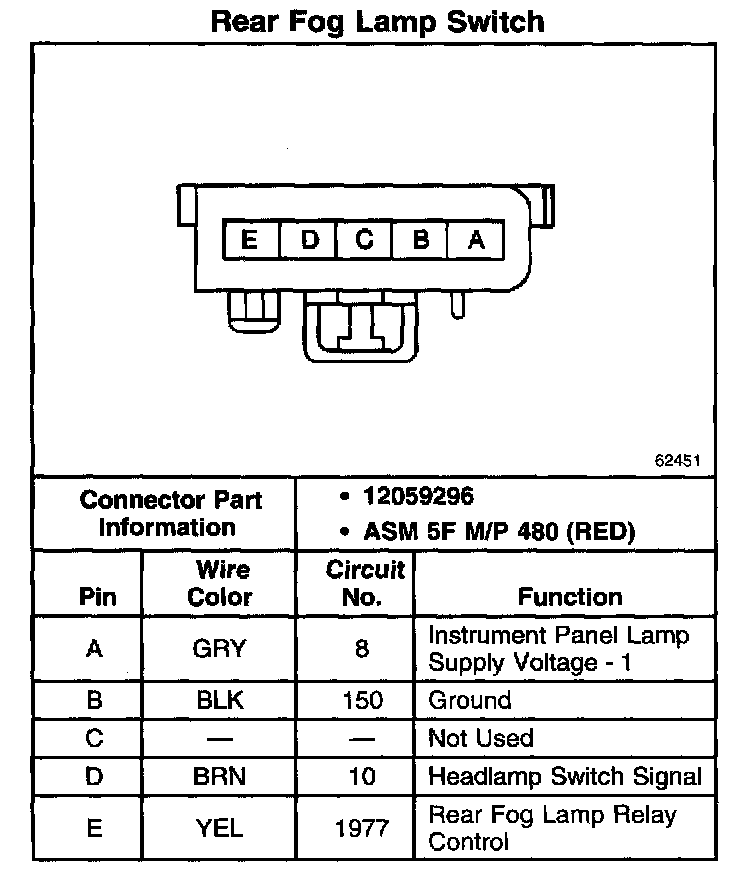

Rear Fog Lamp Switch:
