Chevy Truck
>>
2001
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Heater and A/C Controller C3
Heater and A/C Controller C3

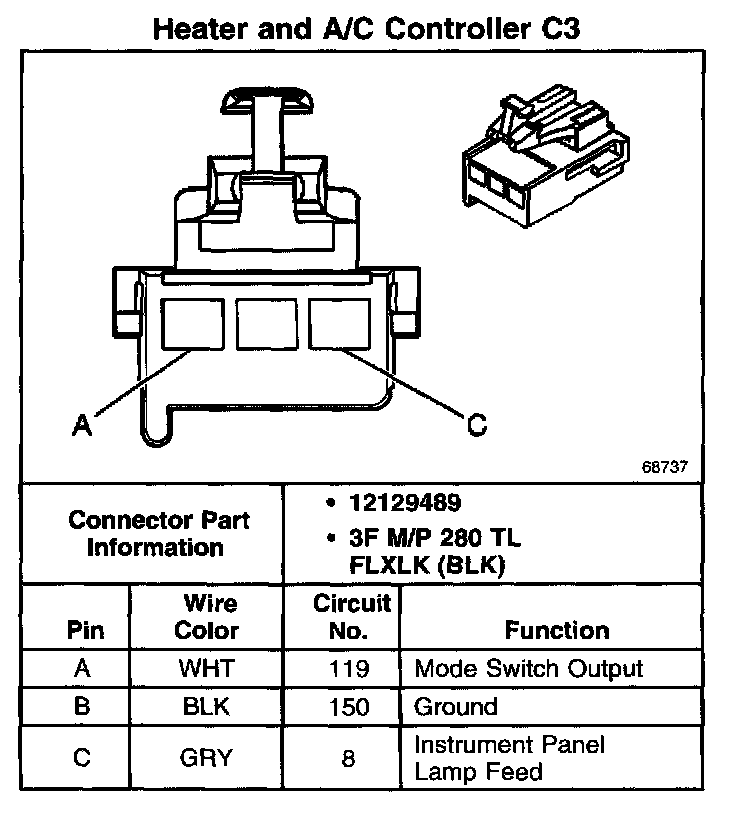

Heater And A/C Controller C3:
