Home
>>
Chevy Truck
>>
2001
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Cigar Lighter
Cigar Lighter

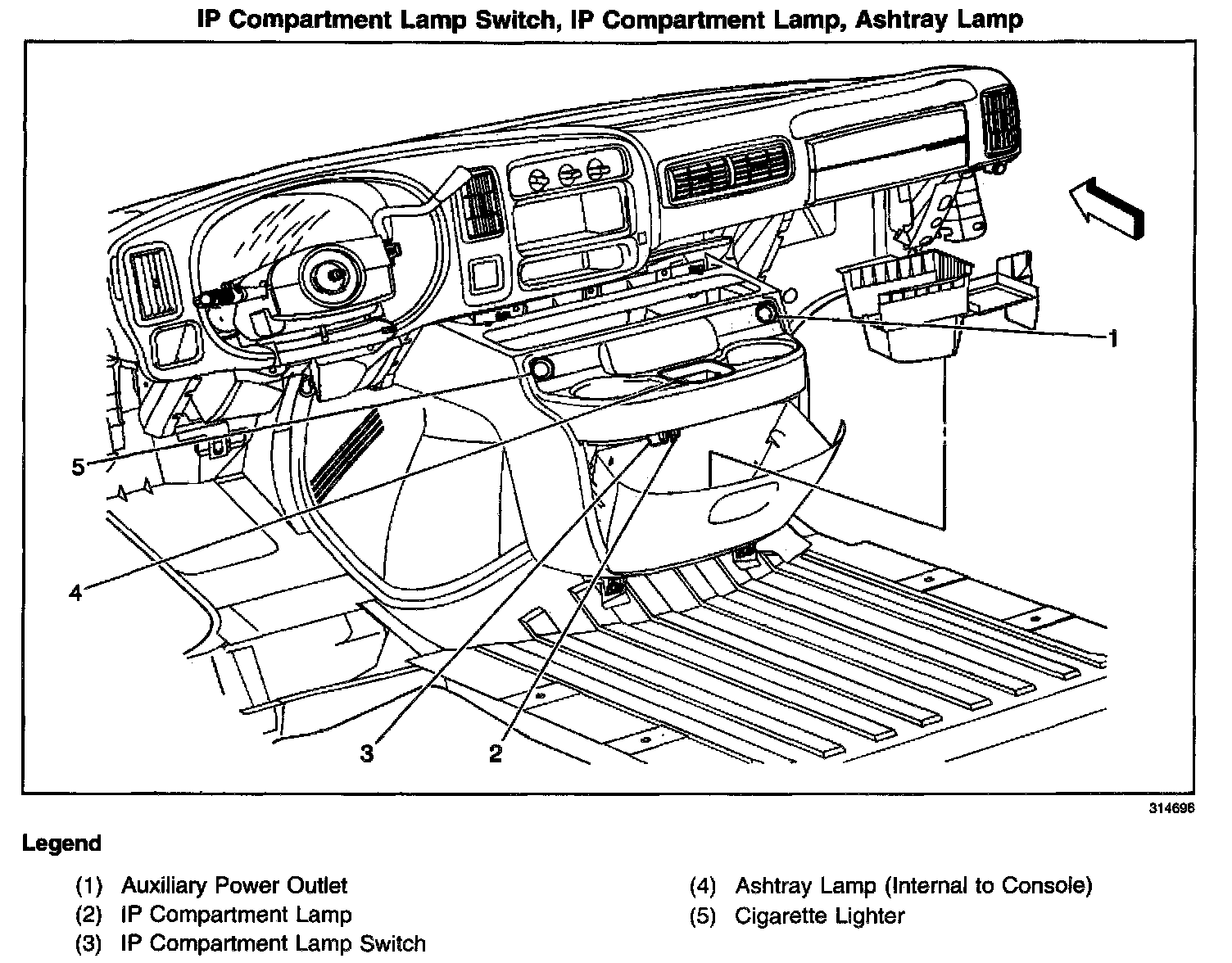

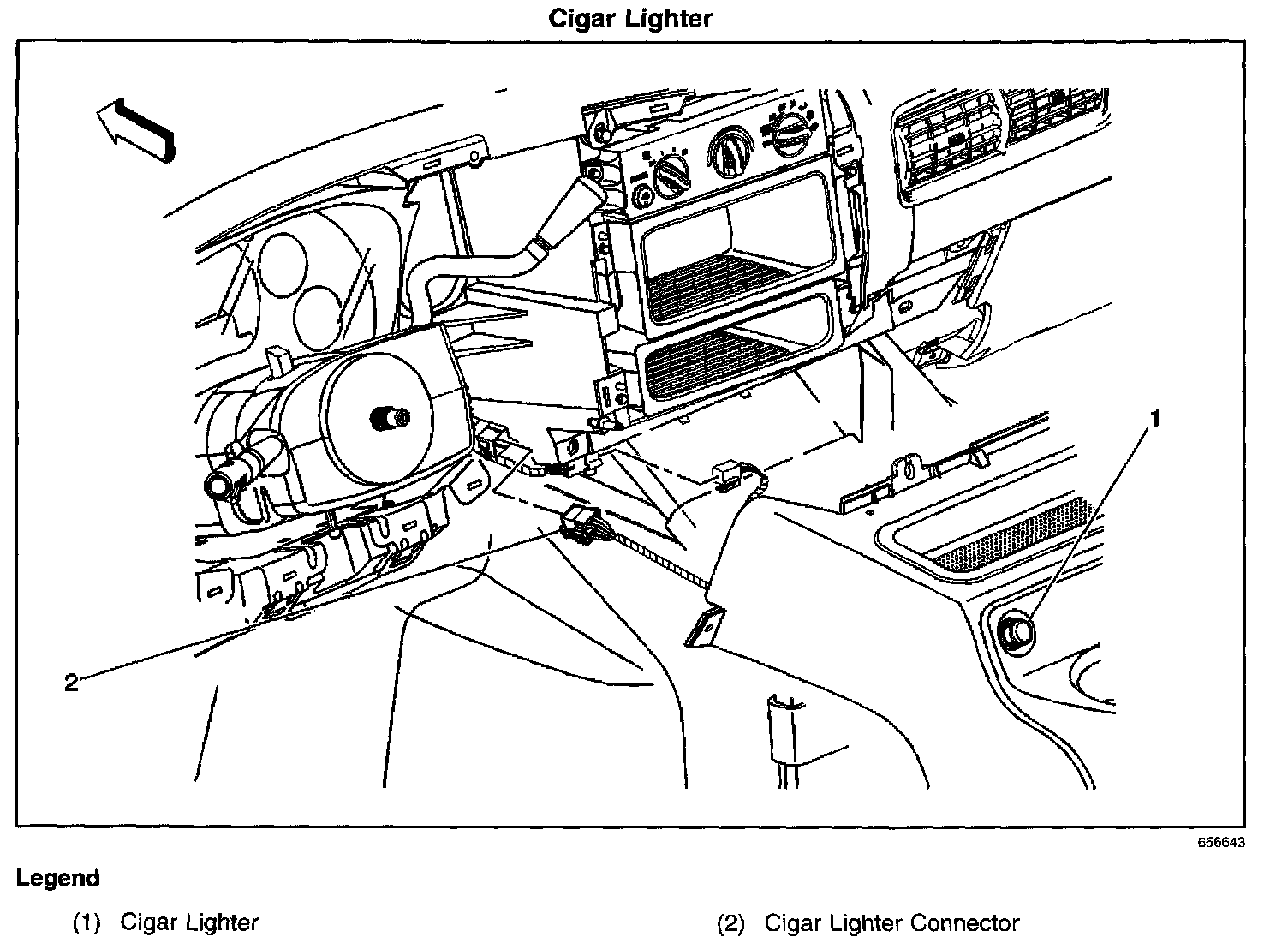

Locations View:
Locations View:
Locations View:
LH side of the center console
