Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-8.1L VIN G >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Control Module >> Diagrams >> C2

C2

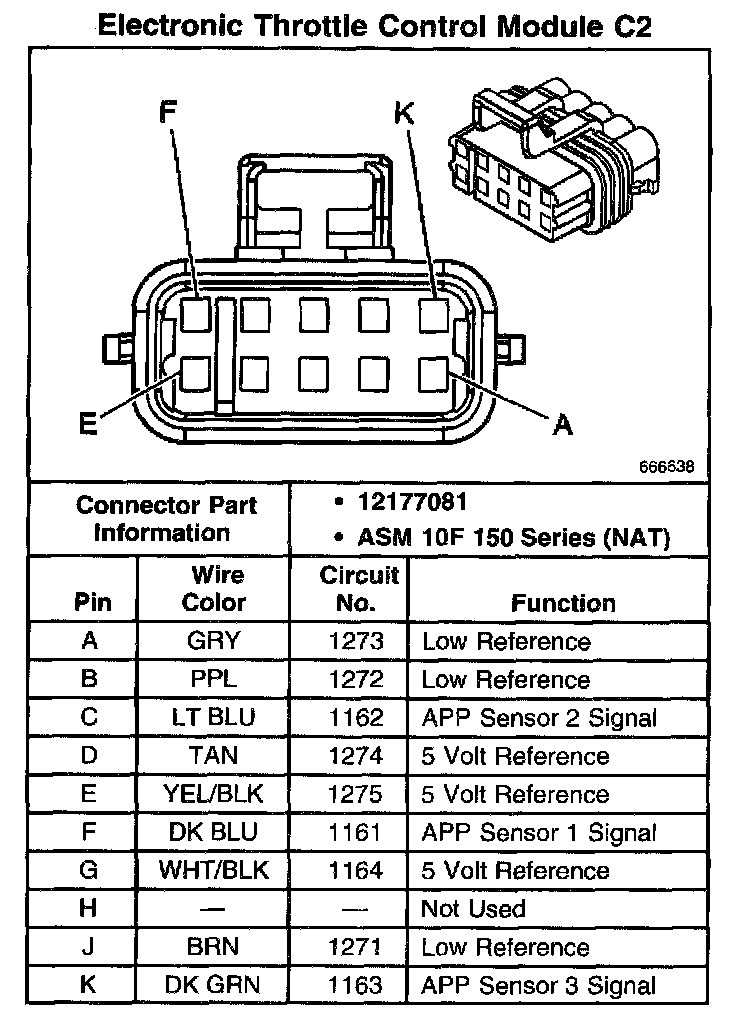

Electronic Throttle Control Module C2:
