Chevy Truck
>>
2001
>>
Express 1 Ton Van V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Theft Deterrent System Schematics (Passlock)
Theft Deterrent System Schematics (Passlock)

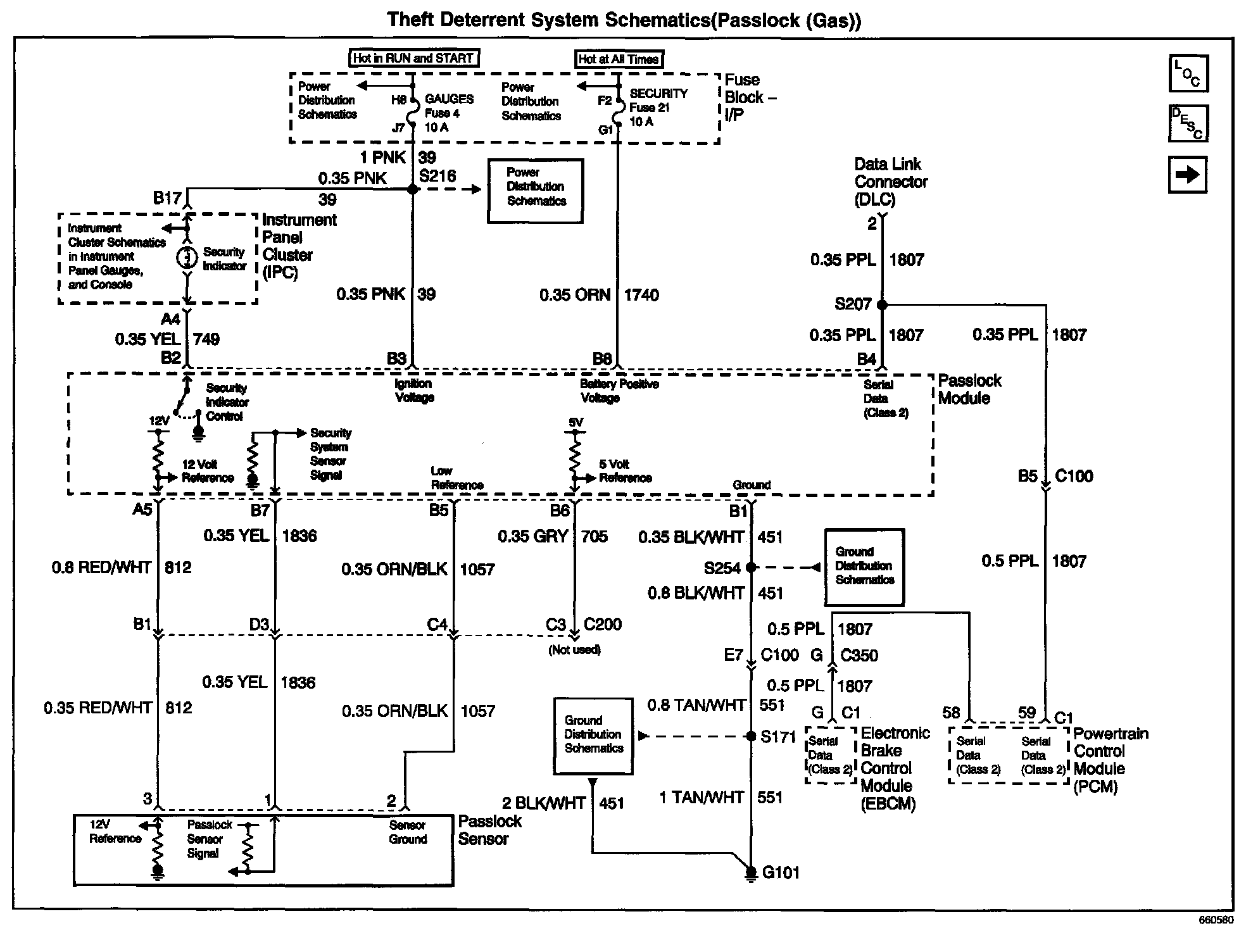

Theft Deterrent System Schematics: Passlock:
