Chevy Truck
>>
2001
>>
Express 1 Ton Van V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C124
C124

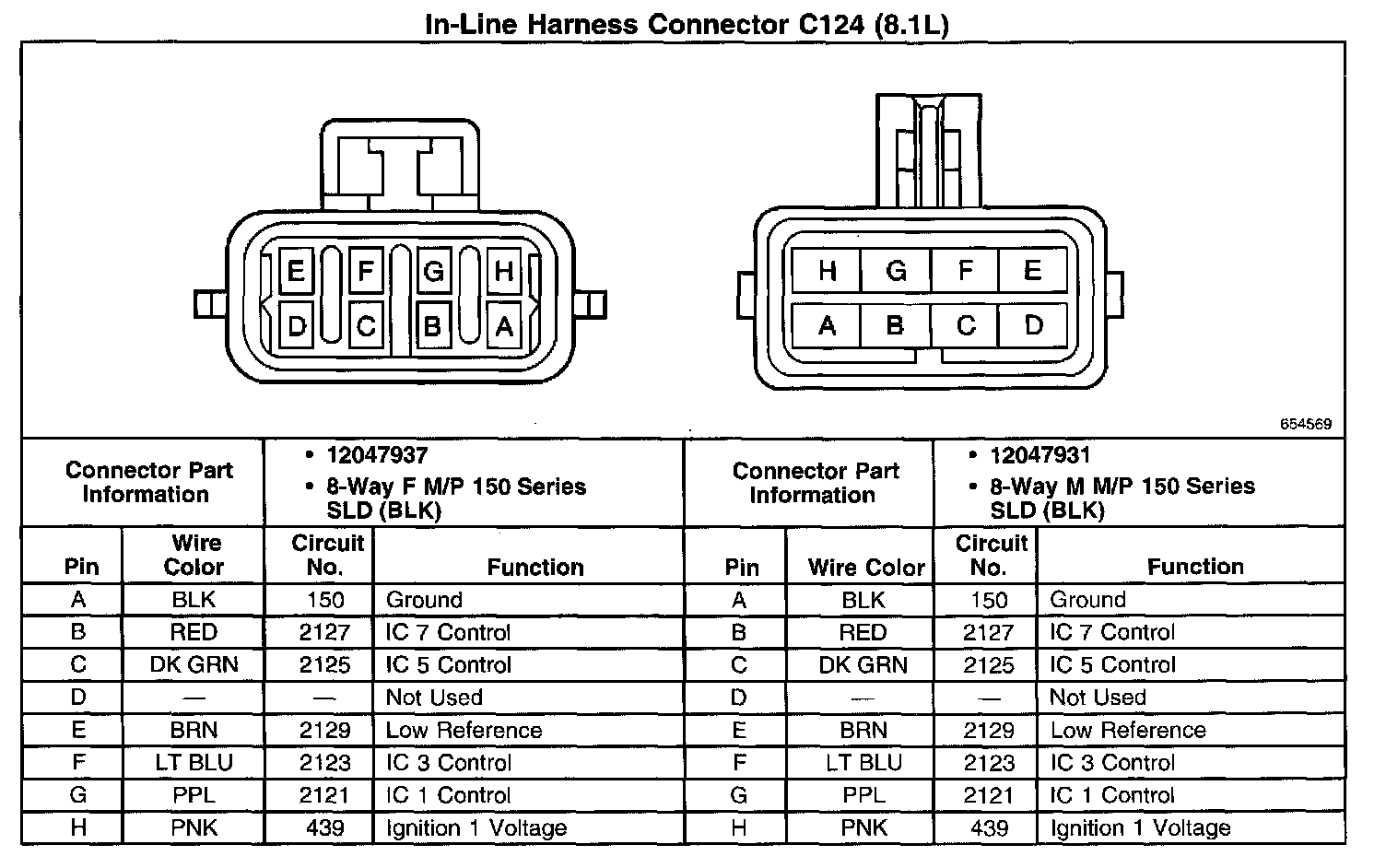

In-Line Harness Connector C124:
