Express 1 Ton Van V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
IP Relay Center Connector
IP Relay Center Connector

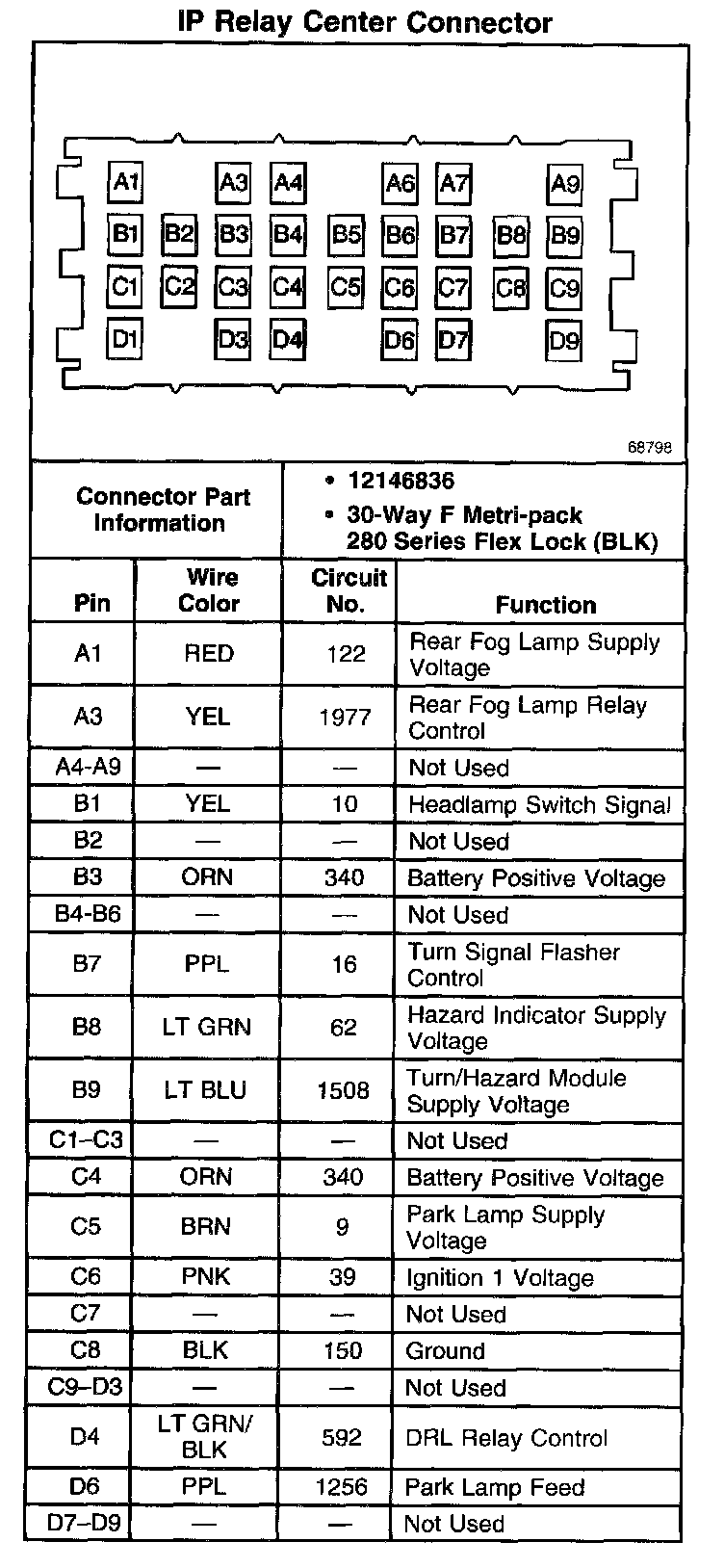

IP Relay Center Connector:
