Chevy Truck
>>
2001
>>
Express 1 Ton Van V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Injection Pump Clutch
Air Injection Pump Clutch

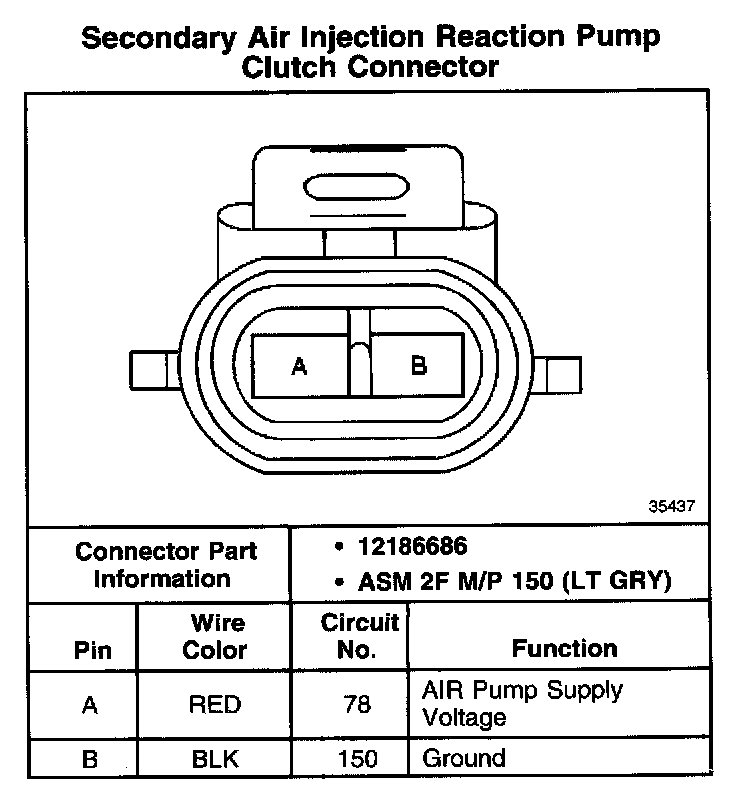

Secondary Air Injection Reaction Pump Clutch Connector:
