PARK LPS Fuses, Park Lamp Relay, Dimmer Switch
PARK LPS Fuses, Park Lamp Relay, Dimmer Switch

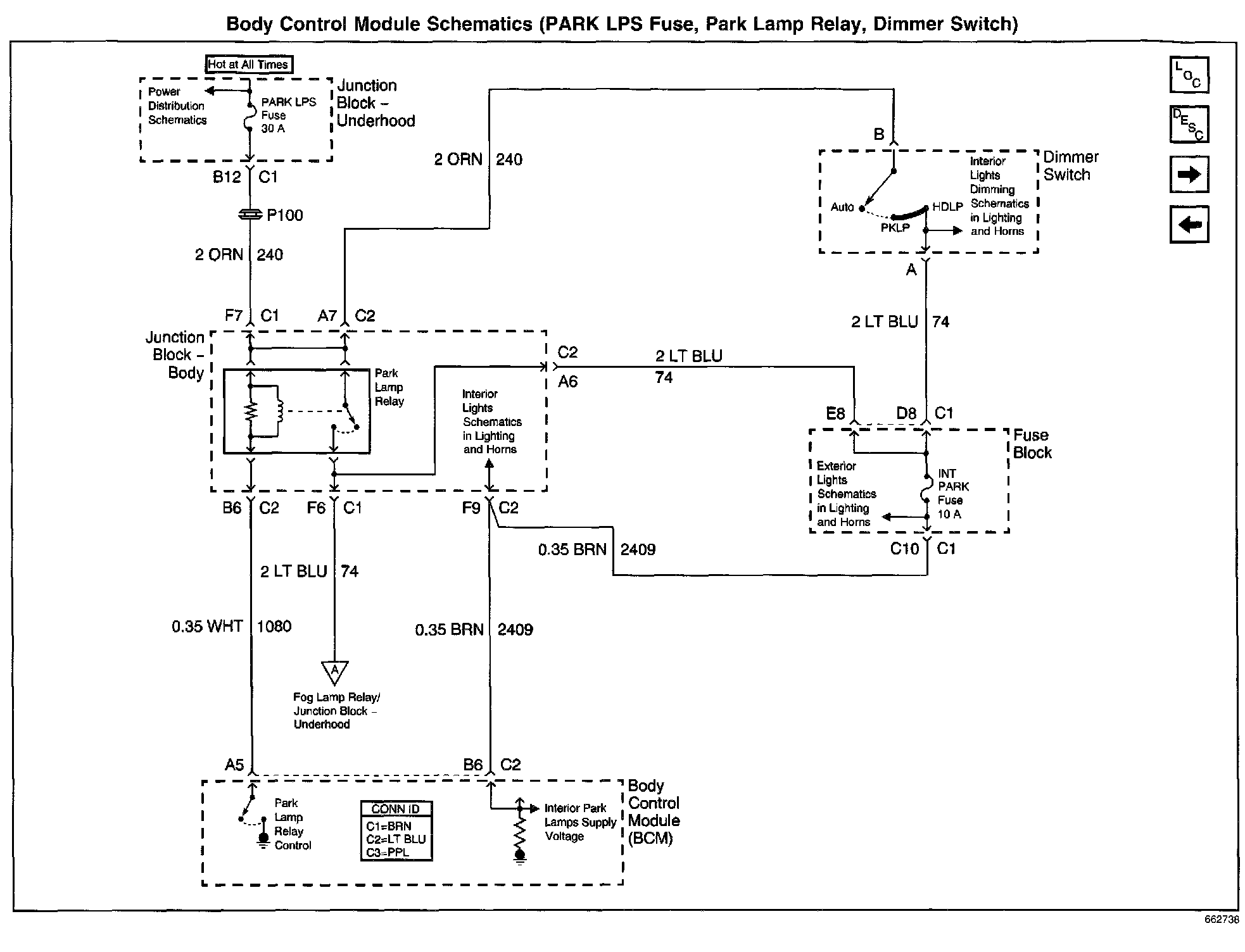

Body Control Module Schematics: PARK LPS Fuses, Park Lamp Relay, Dimmer Switch:
