Chevy Truck
>>
2001
>>
C Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate Switch
>>
Liftgate Ajar Switch - Left
Liftgate Ajar Switch - Left

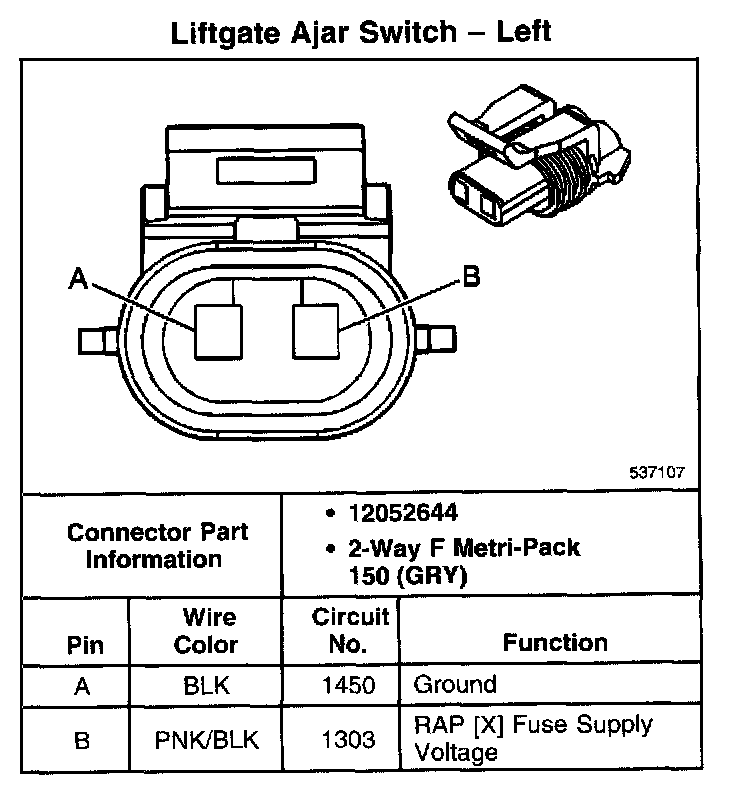

Liftgate Ajar Switch - Left:
