Chevy Truck
>>
2001
>>
C Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Lumbar/Bolster Switch - Driver (Memory Seats)
Lumbar/Bolster Switch - Driver (Memory Seats)

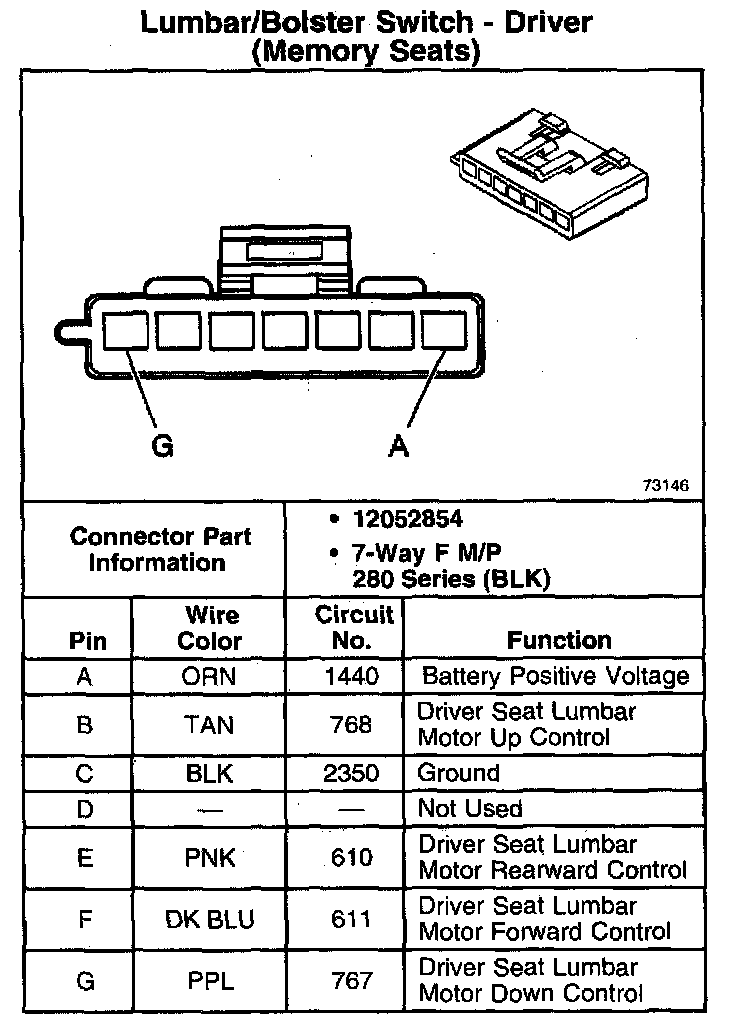

Lumbar/Bolster Switch - Driver (Memory Seats):
