Home
>>
Chevy Truck
>>
2001
>>
C 6500 Kodiak V8-8.1L VIN E
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Connector Views
Connector Views

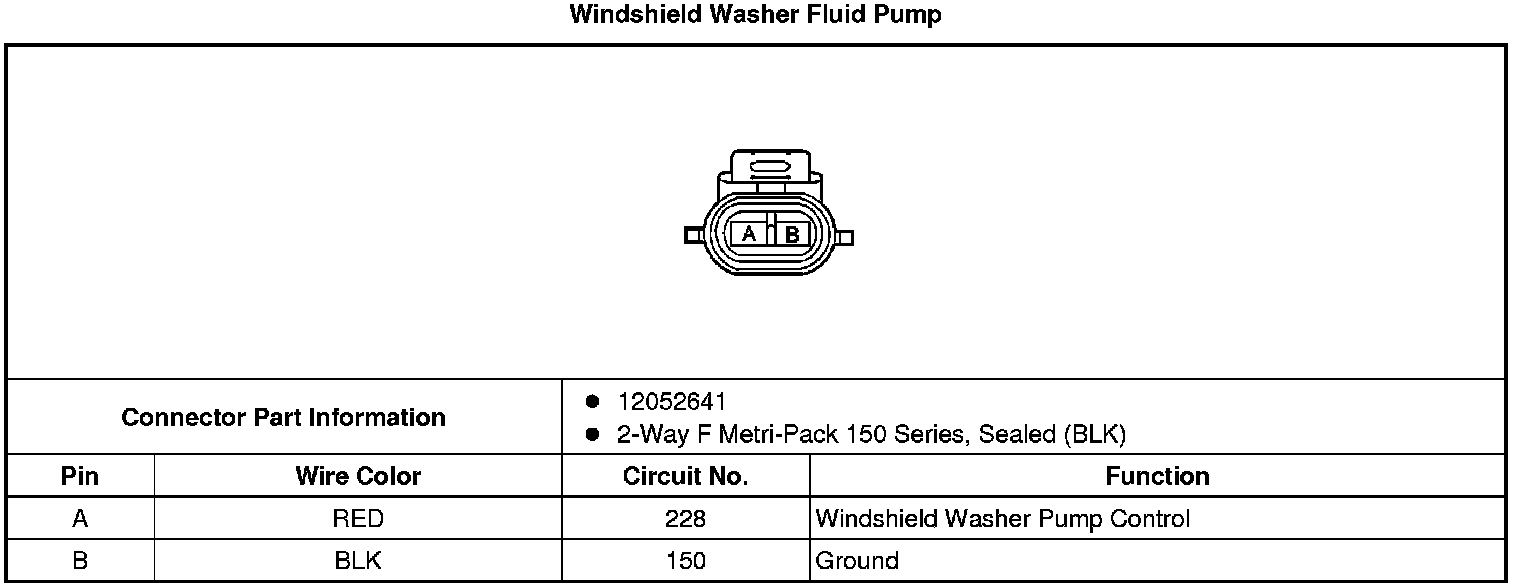

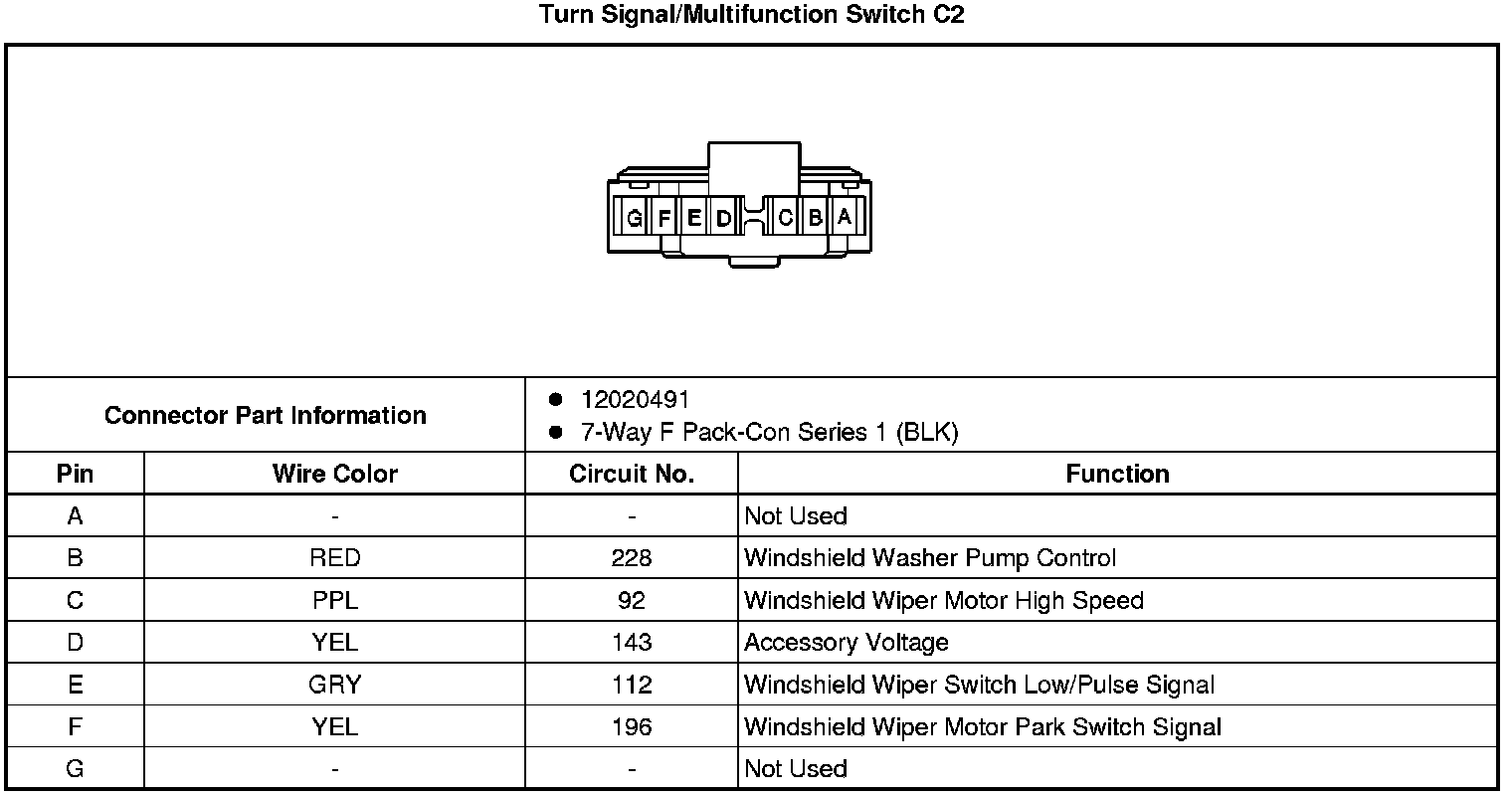

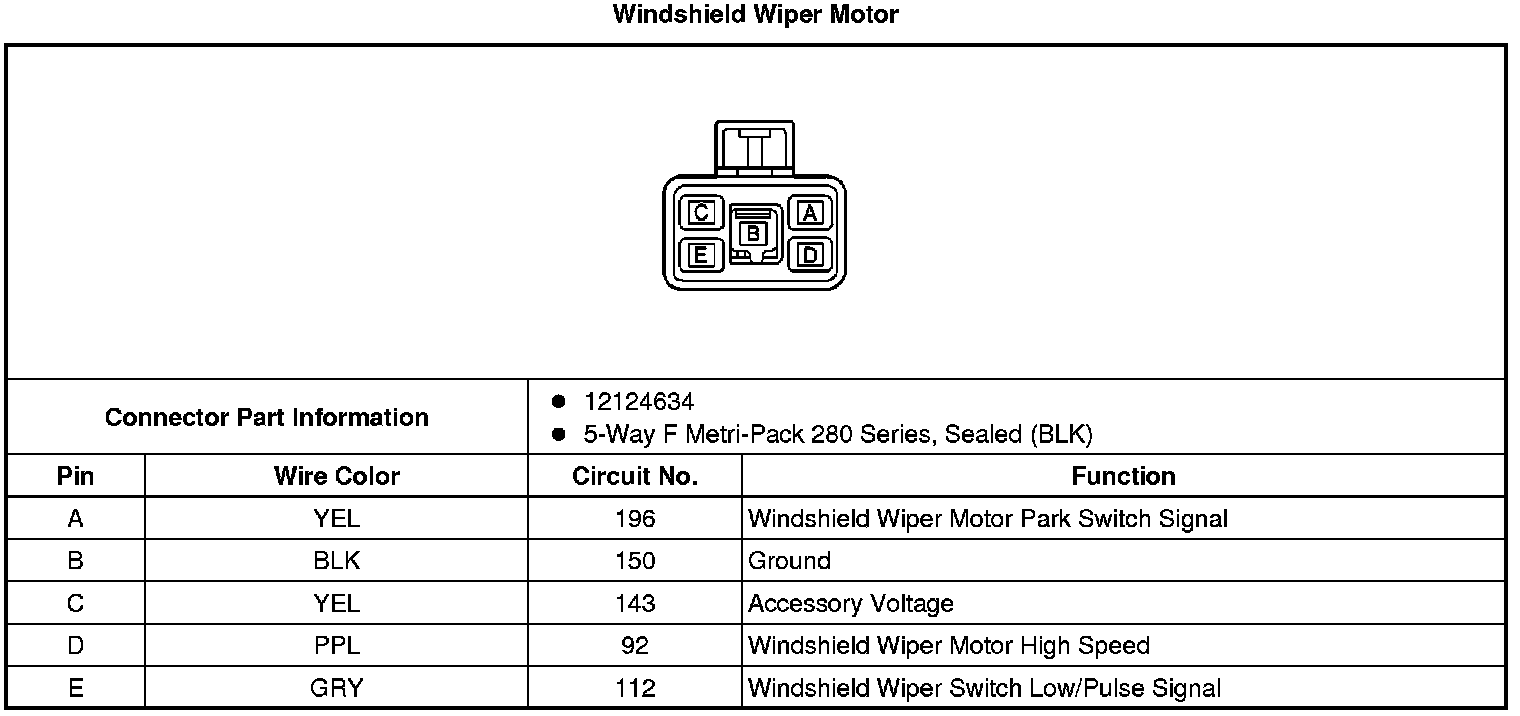

Wiper/Washer Connector End Views
