Battery Tray: Service and Repair

Battery Box Replacement

Removal Procedure

1. Remove the following items from the cover:

* The bolts
* The washers
* The nuts
* The retainer

2. Remove the cover bolts.
3. Remove the cover.




4. Remove the retainers and the battery or batteries. Refer to Battery Replacement Removal and Replacement in Engine Electrical.
5. Reposition the battery cables.
6. Remove the following items from the battery box:

* The bolts
* The washers
* The nuts

Installation Procedure

Notice: Refer to Fastener Notice in Cautions and Notices.

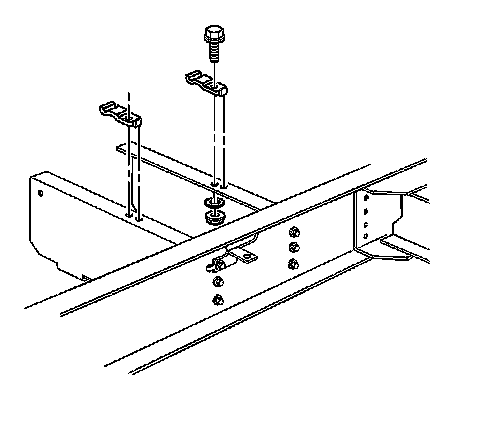

1. Install the battery box to the frame rail with the following items:

* The bolts
* The washers
* The nuts

Tighten the battery box to the frame nuts to 70 Nm (52 lb ft).




2. Install the battery or batteries to the box with the retainers and bolts. Refer to Battery Replacement Removal and Replacement in Engine Electrical.
3. Reposition the battery cables.
4. Install the cover.
5. Install the retainer and the bolt.

Tighten the retainer bolts to 30 Nm (22 lb ft).
