Compressor Clutch Relay: Service and Repair

Compressor Relay Replacement

Removal Procedure

1. Remove the compressor relay from the retaining bracket.

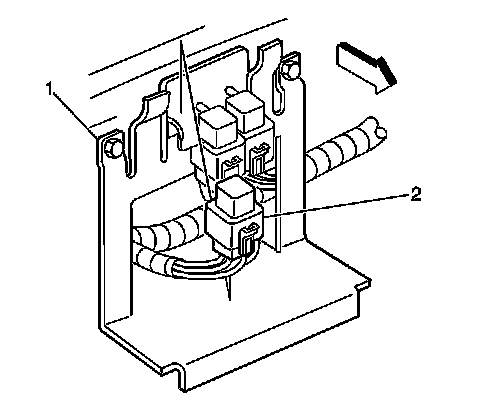

2. Disconnect the compressor relay (2) from the electrical connector.

Installation Procedure




1. Connect the compressor relay (2) to the electrical connector.
2. Install the compressor relay to the retaining bracket.
