Evaporative Emission Control Canister: Service and Repair

Evaporative Emission Canister Replacement

Removal Procedure




1. Remove the cover plate.

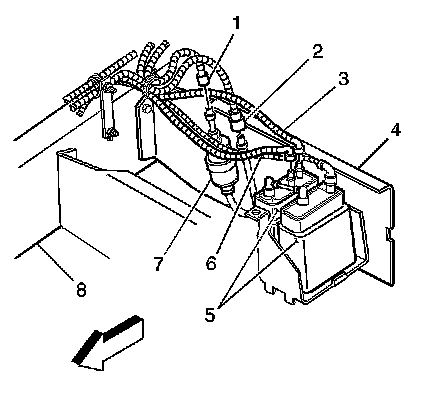

2. Disconnect the evaporative emission (EVAP) purge pipe (6) from the EVAP canister (5).
3. Disconnect the EVAP vapor pipe (3) from the EVAP canister (5).
4. Disconnect the EVAP vent pipes from the EVAP canister (5).

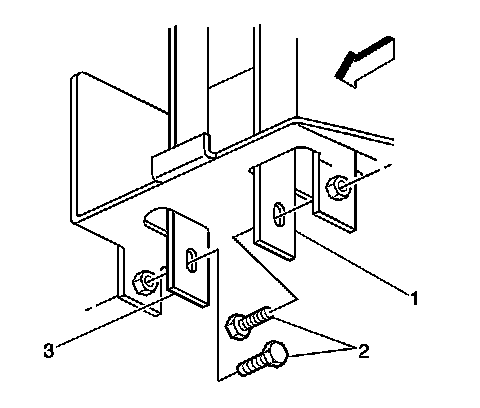

5. Remove the bolts (2) from the canister hold down brackets (1, 3).
6. Remove the canister.

Installation Procedure




1. Install the canister (5).

Notice: Refer to Fastener Notice in Cautions and Notices.




2. Install the hold down brackets (1, 3) and bolts (2) to the EVAP canister.

Tighten the EVAP canister bracket bolts (2) to 22.5 Nm (17 lb ft).




3. Connect the EVAP vent pipes to the EVAP canister (5).
4. Connect the EVAP vapor pipe (3) to the EVAP canister (5).
5. Connect the EVAP vent pipes to the EVAP canister (5).
6. Install the cover plate.
