Air Register: Service and Repair

Floor Air Outlet Replacement

Removal Procedure

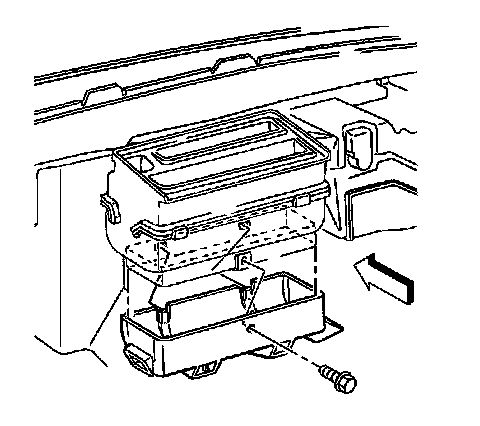

1. Remove the screw from the floor air outlet duct.
2. Remove the floor air outlet duct.

Installation Procedure




1. Install the floor air outlet duct.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screw to the floor air outlet duct.

Tighten the screw to 1.9 Nm (17 lb in).
