Home
>>
Chevy Truck
>>
2001
>>
C 6500 Kodiak V8-8.1L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Data Link Connector
>>

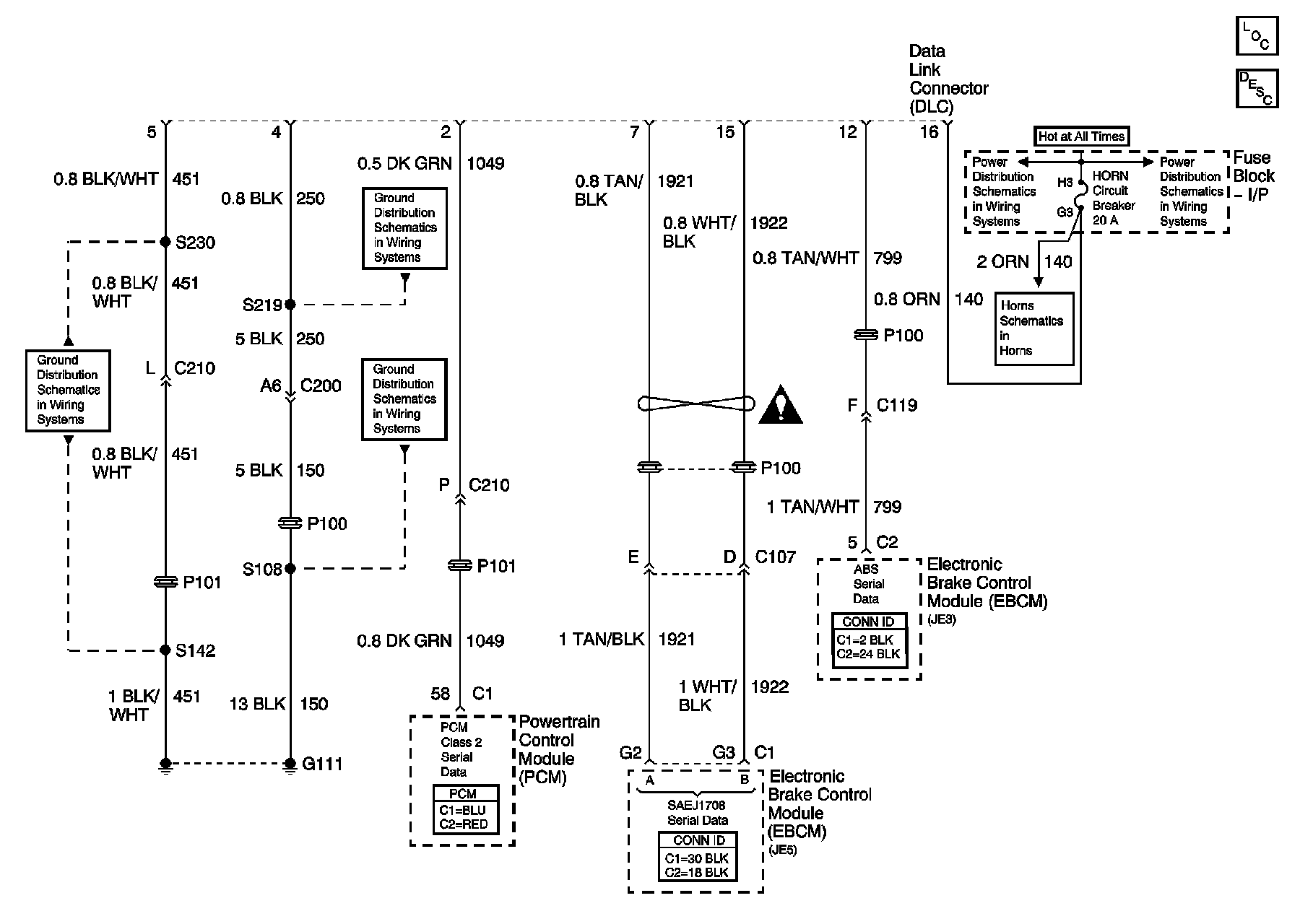

Data Link Connector Schematics (L18)
Data Link Connector Schematics (L18)
Data Link Connector Schematics (L18)
