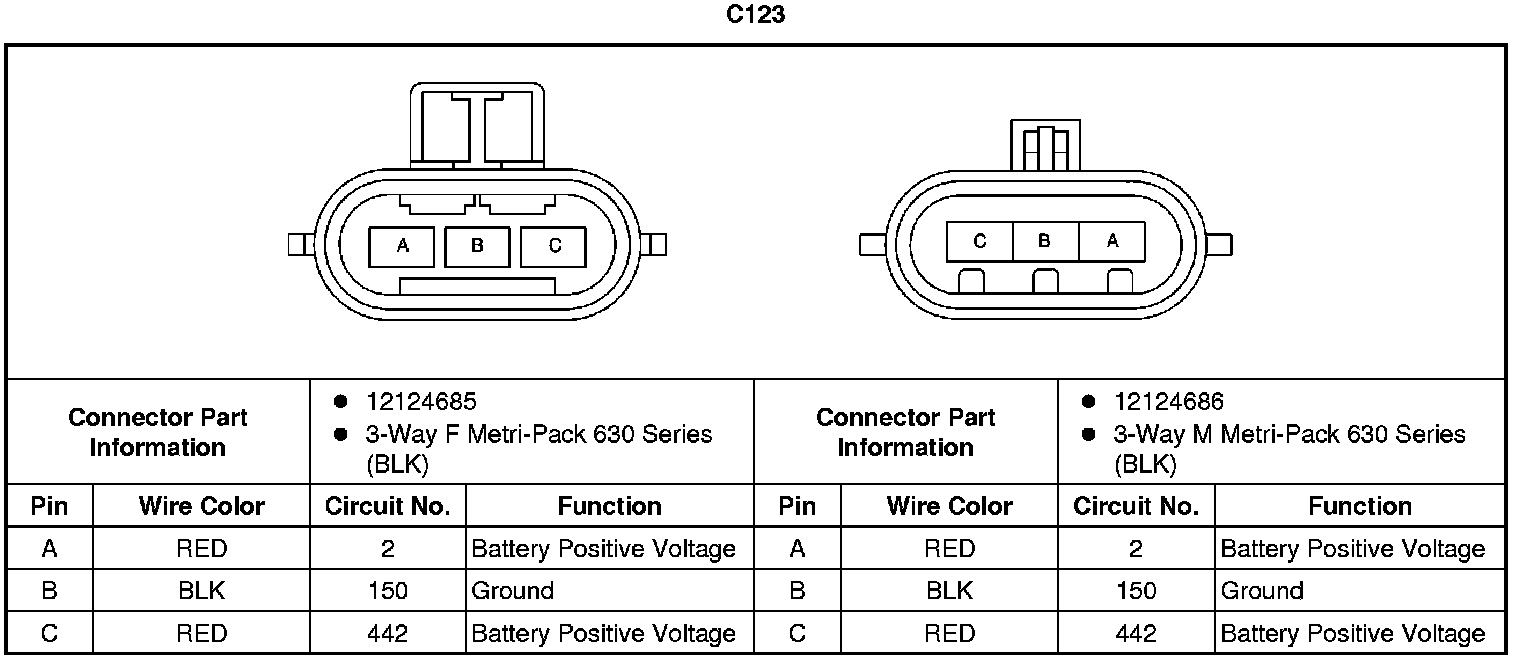

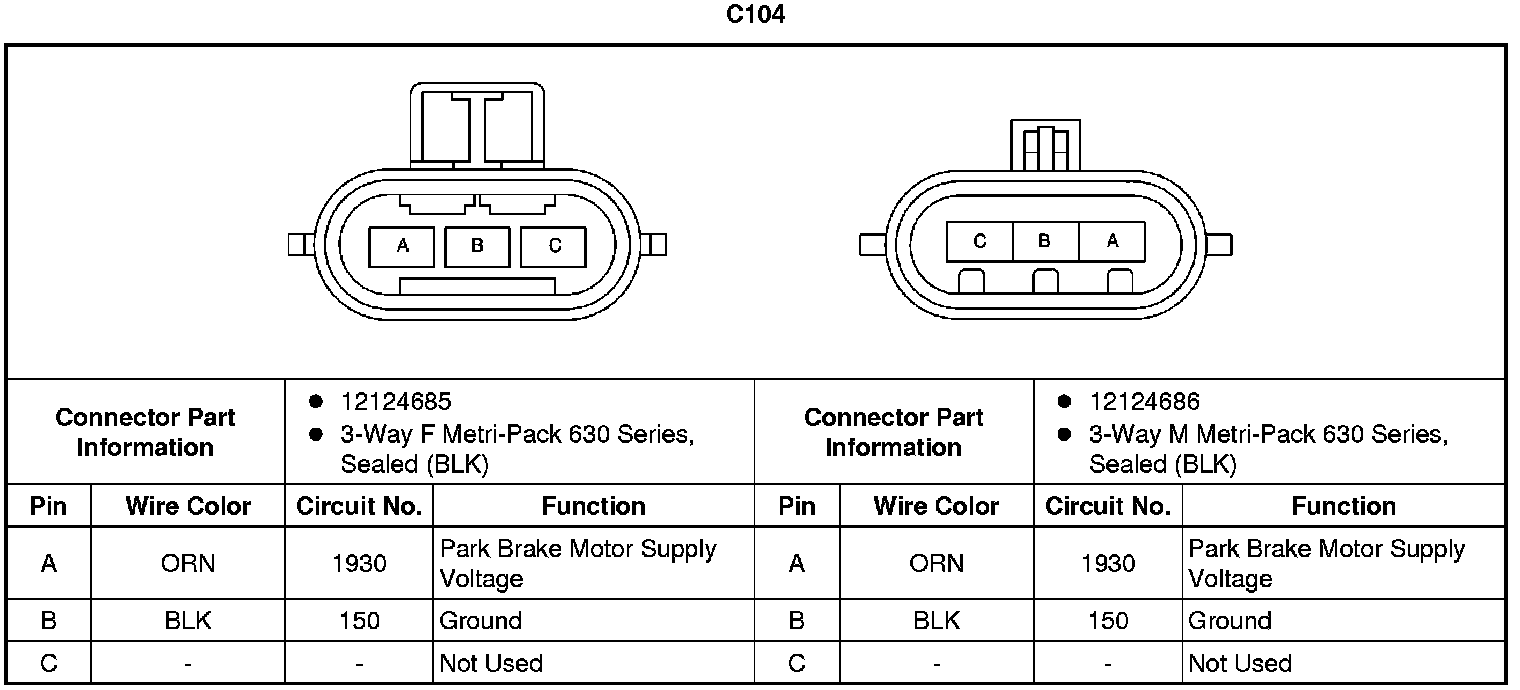

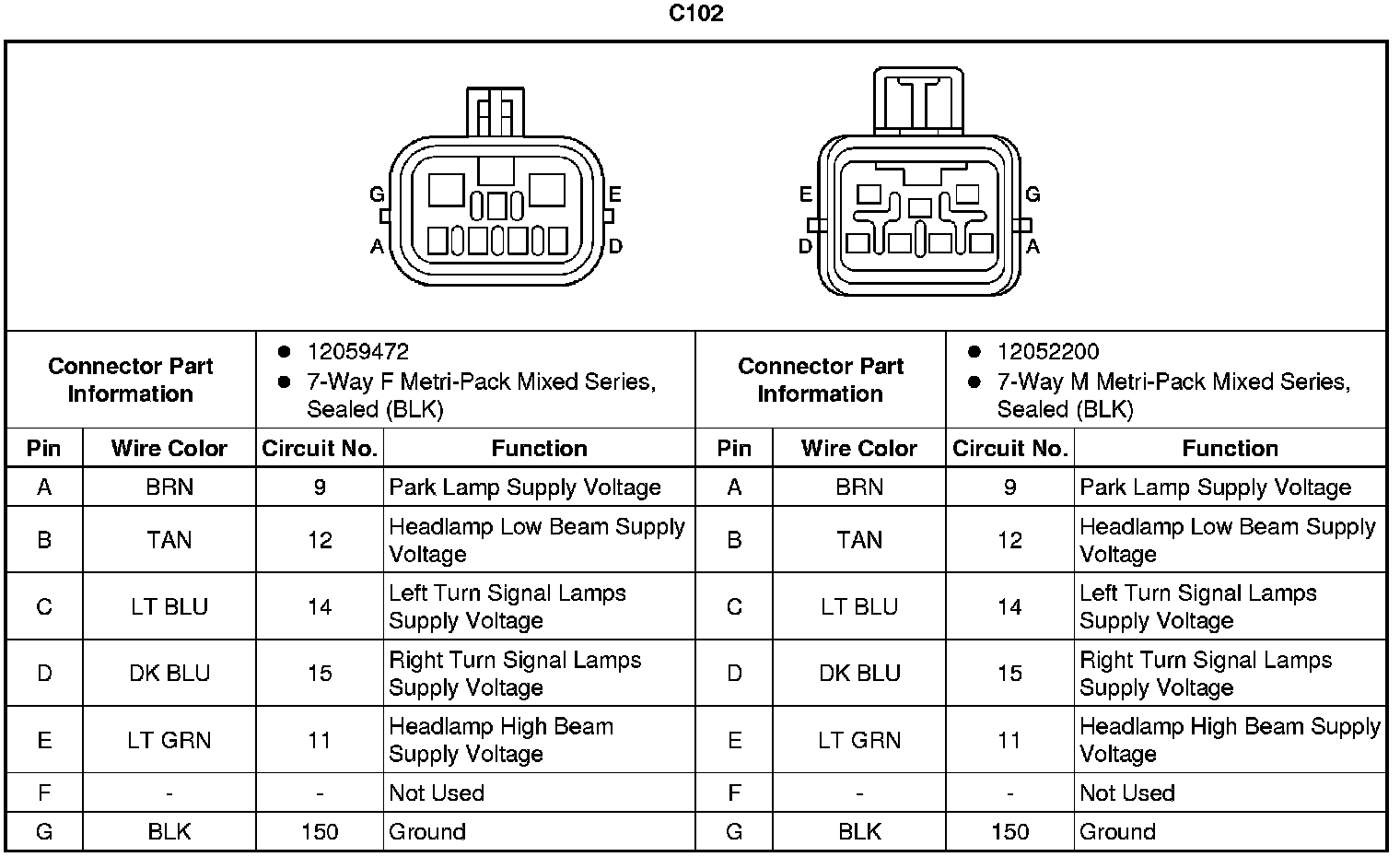

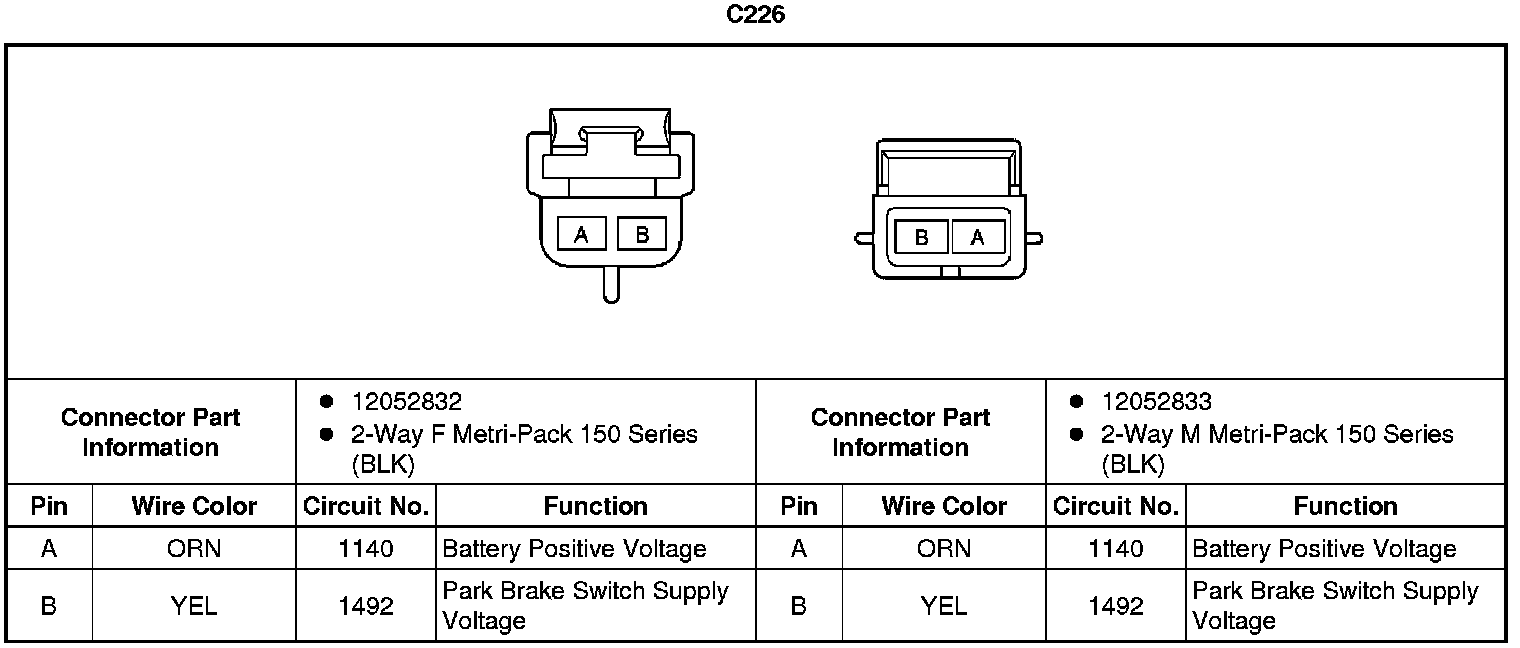

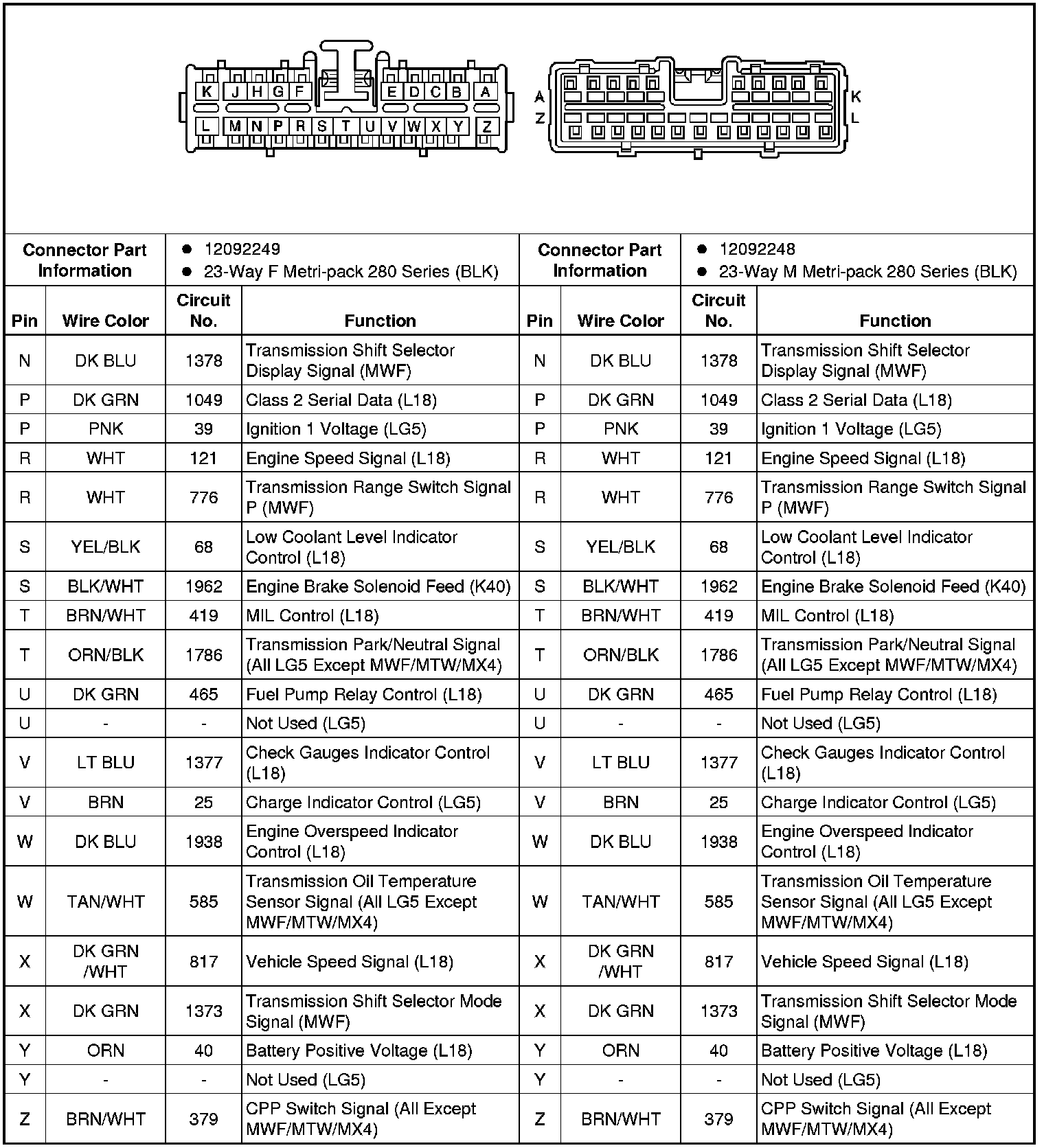

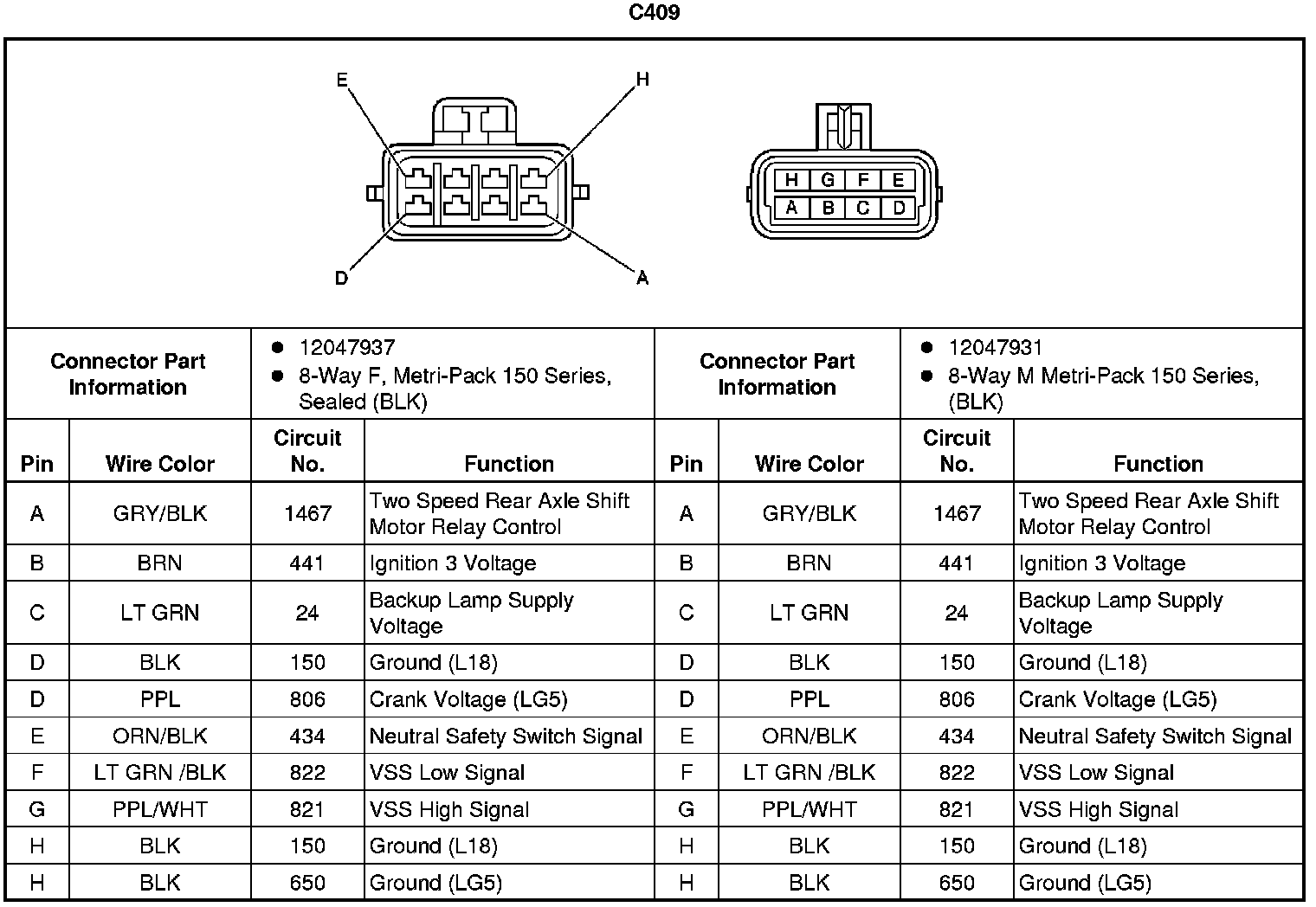

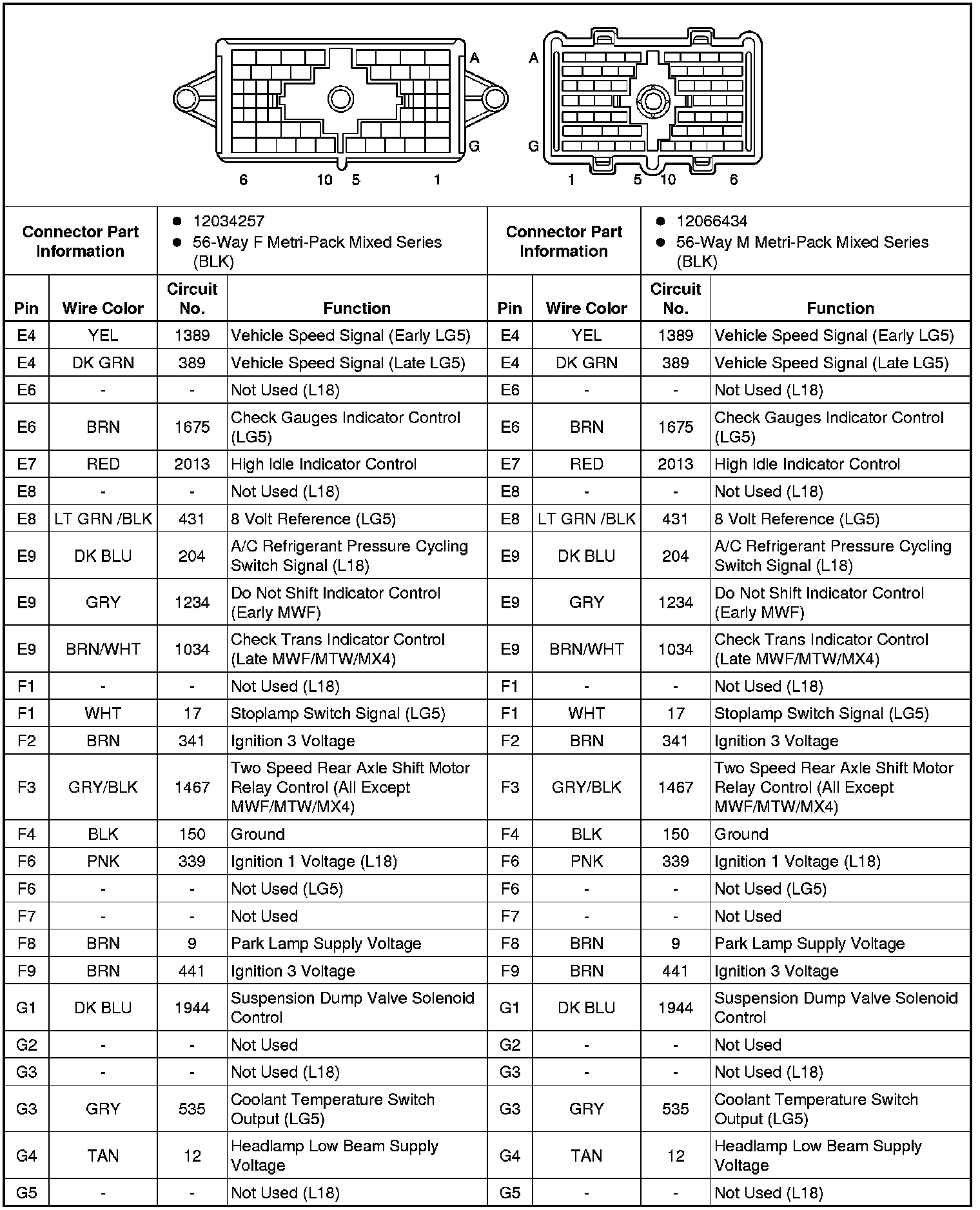

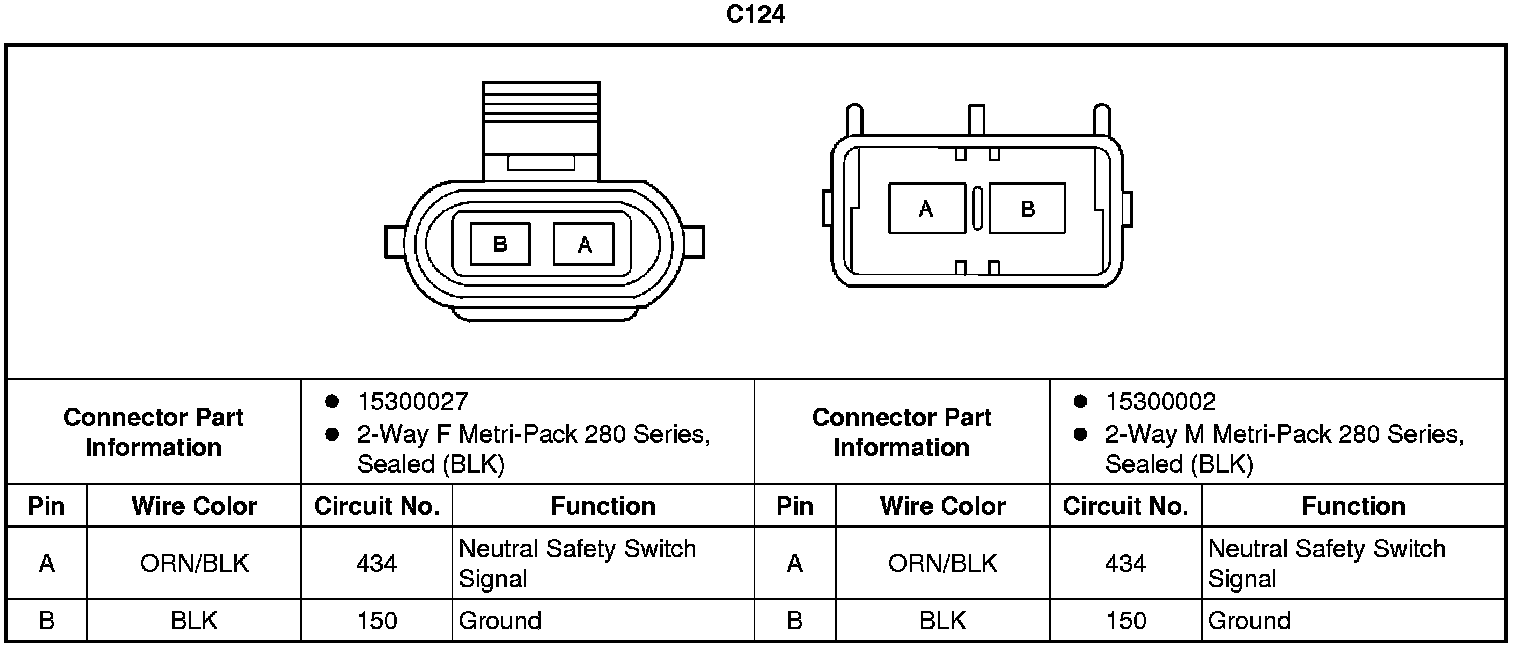

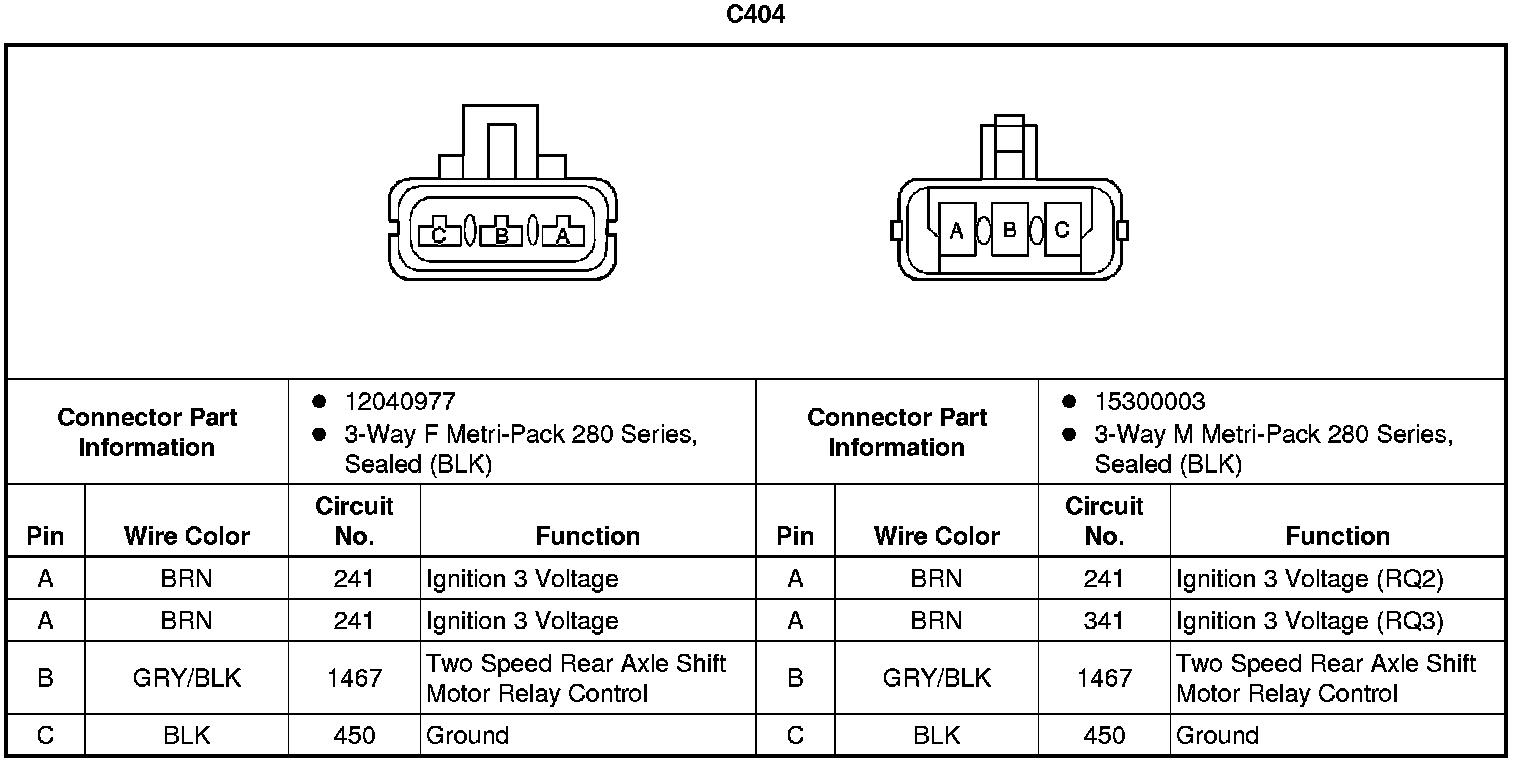

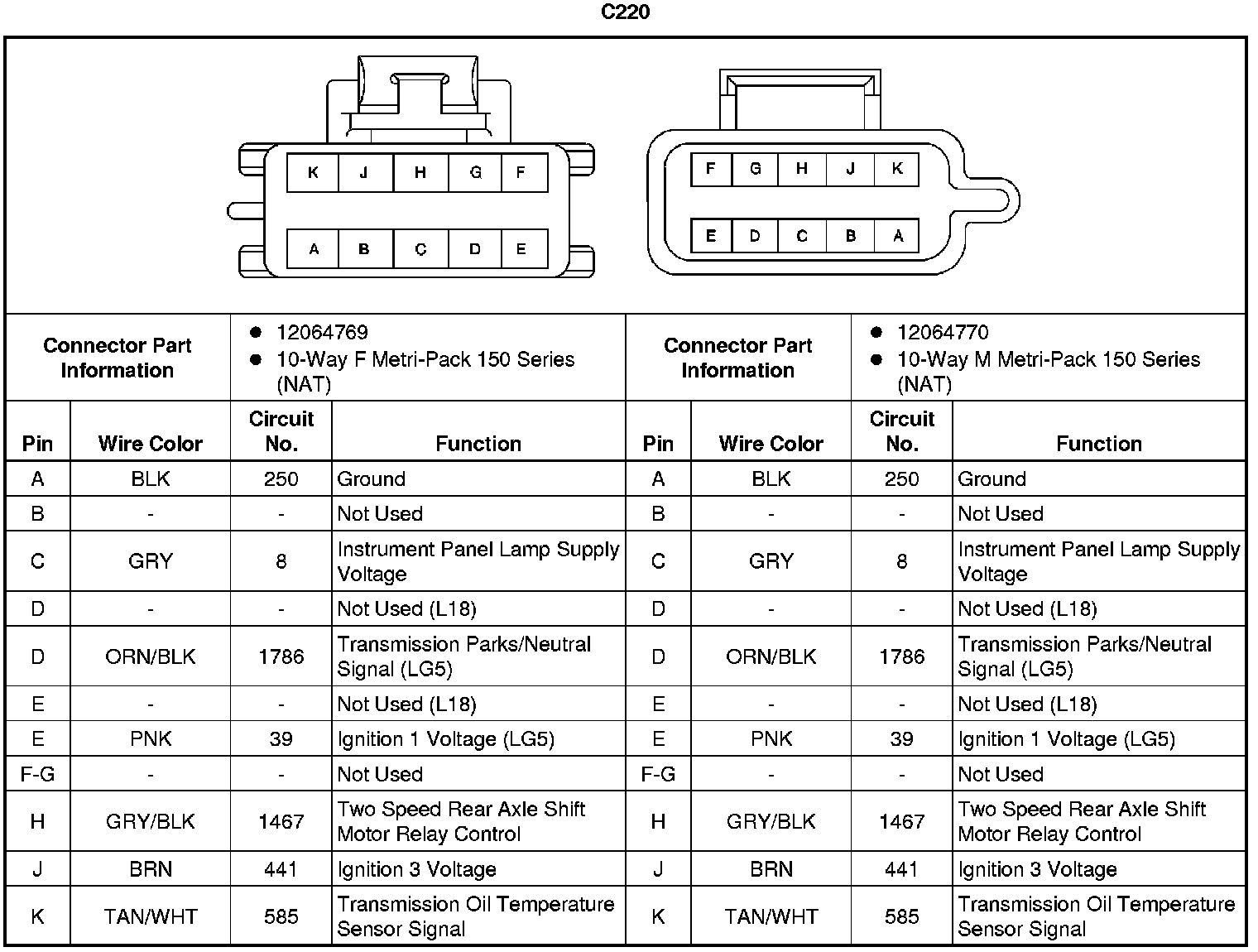

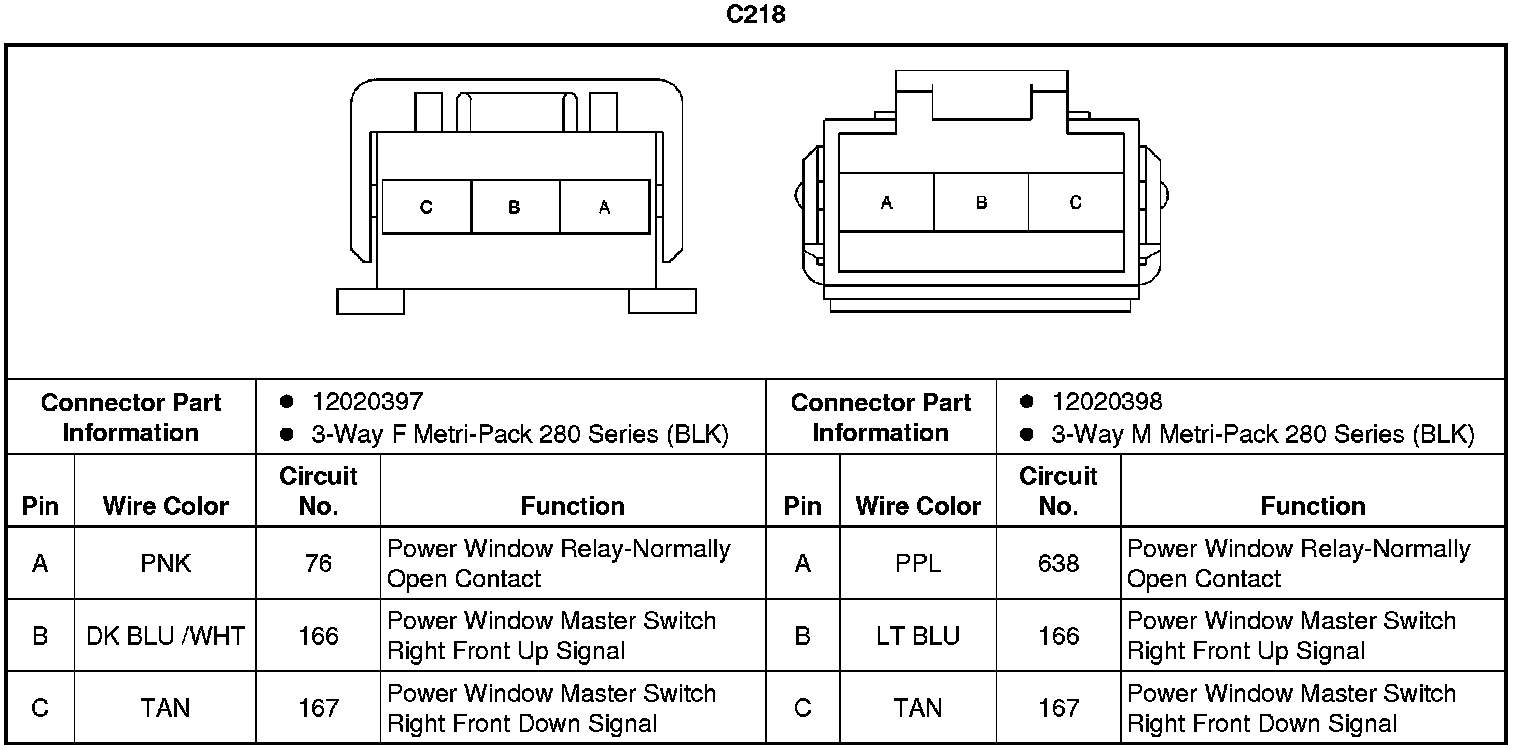

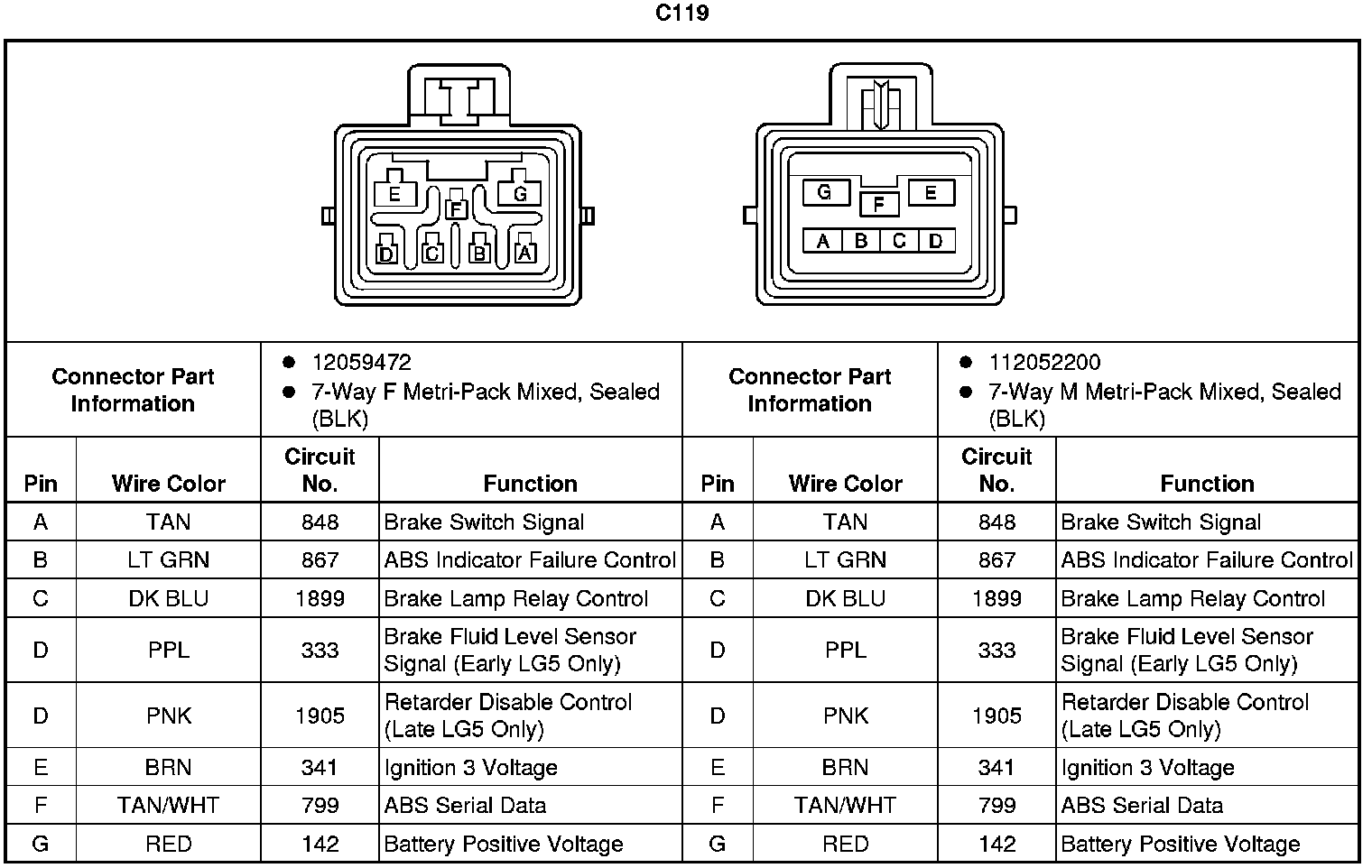

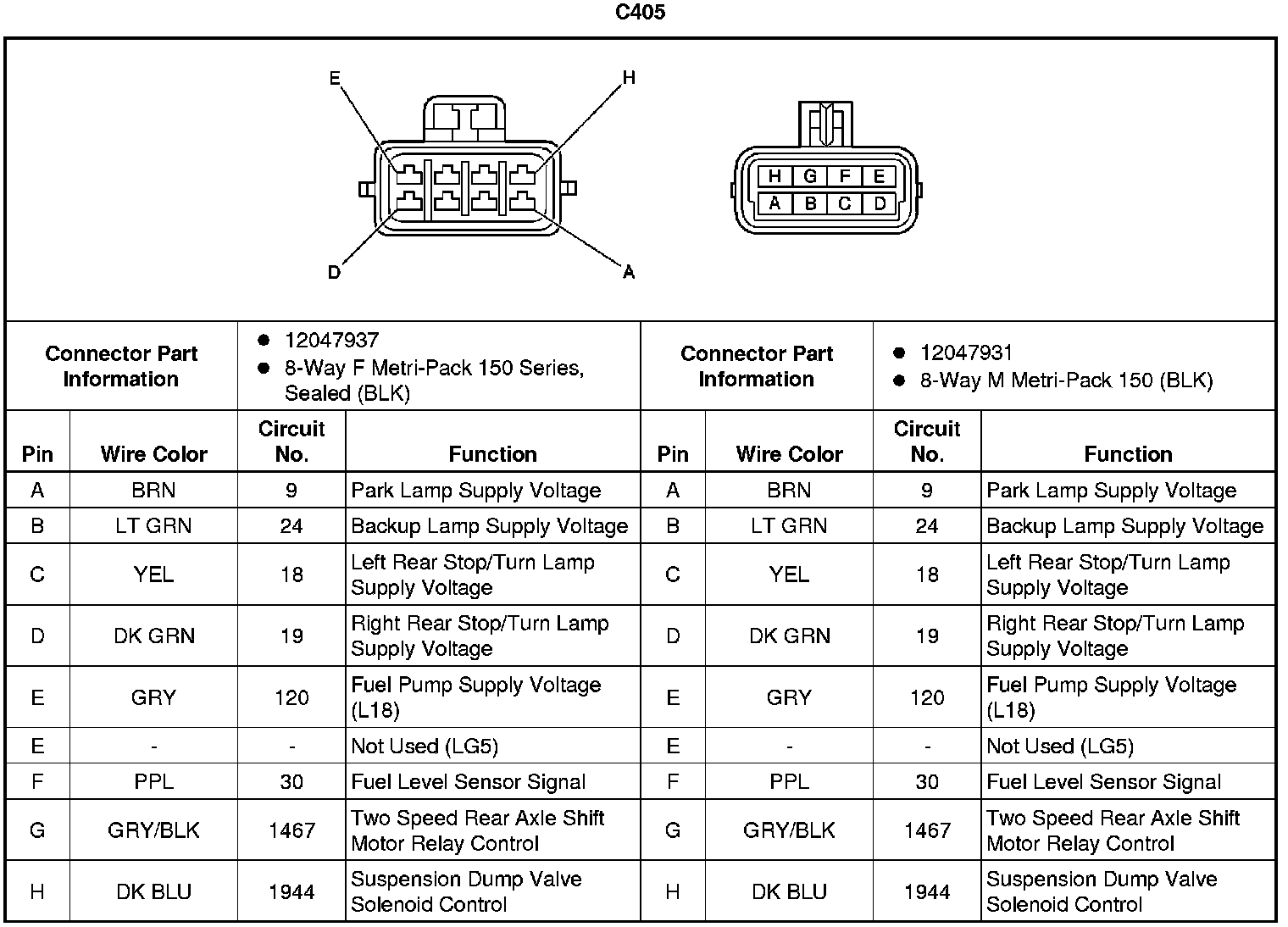

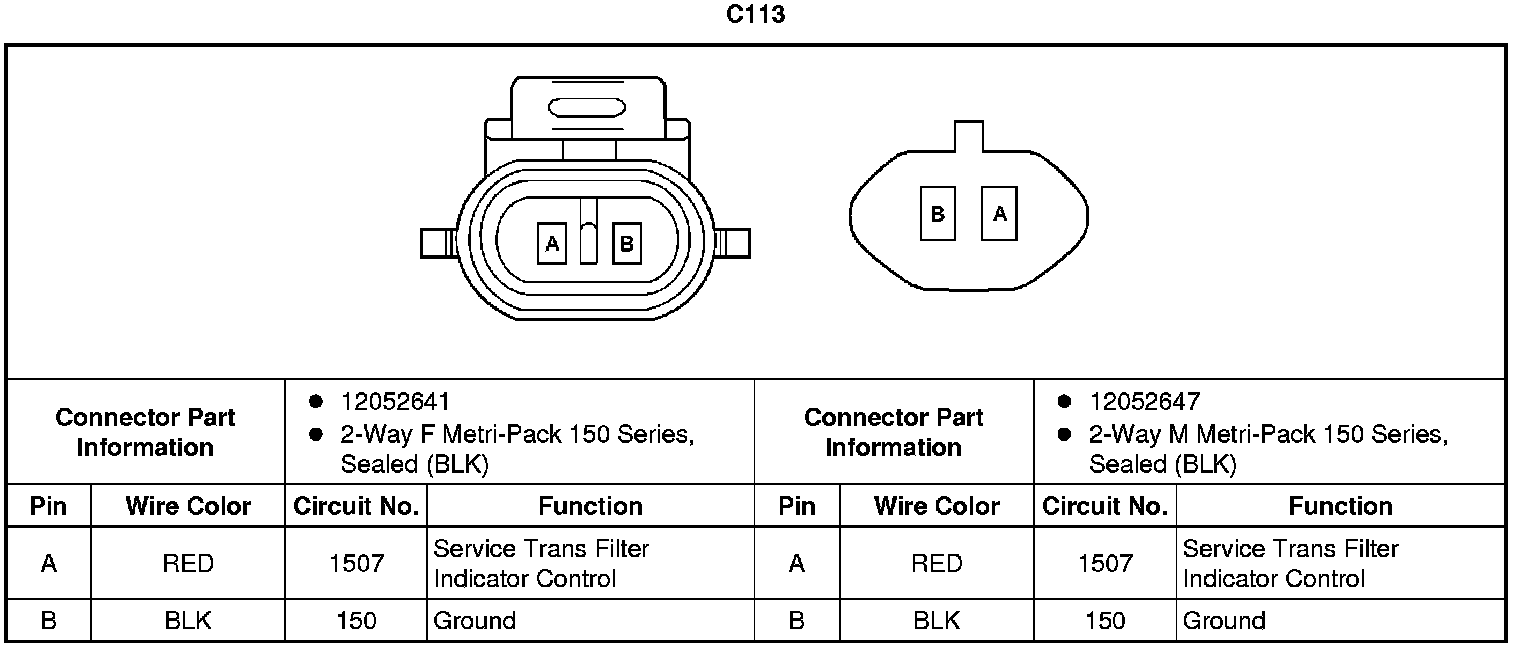

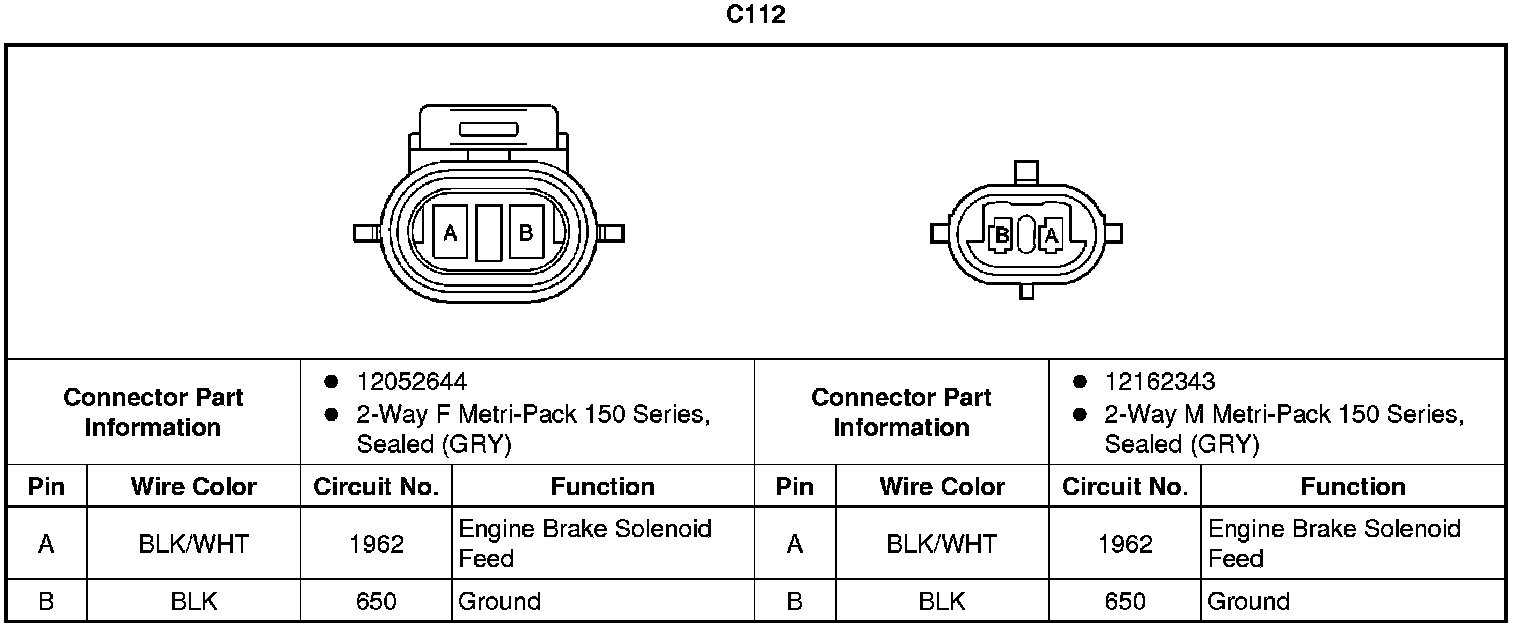

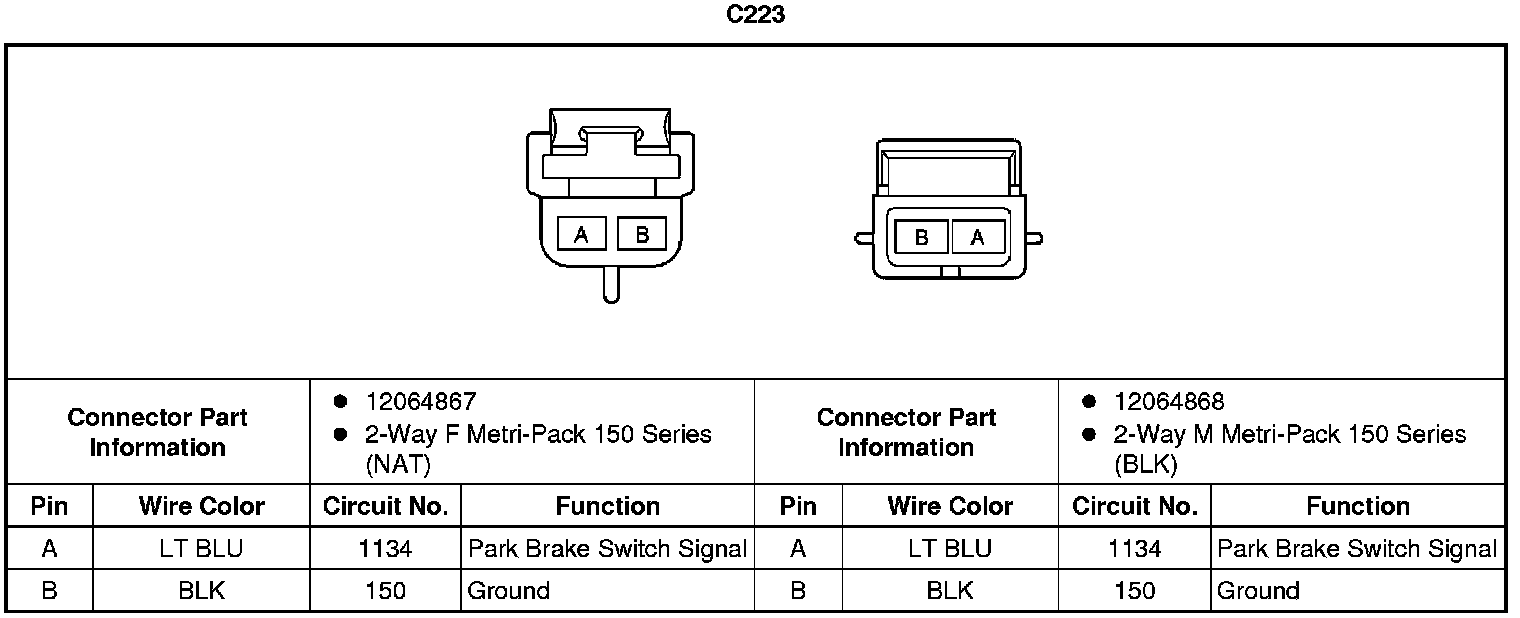

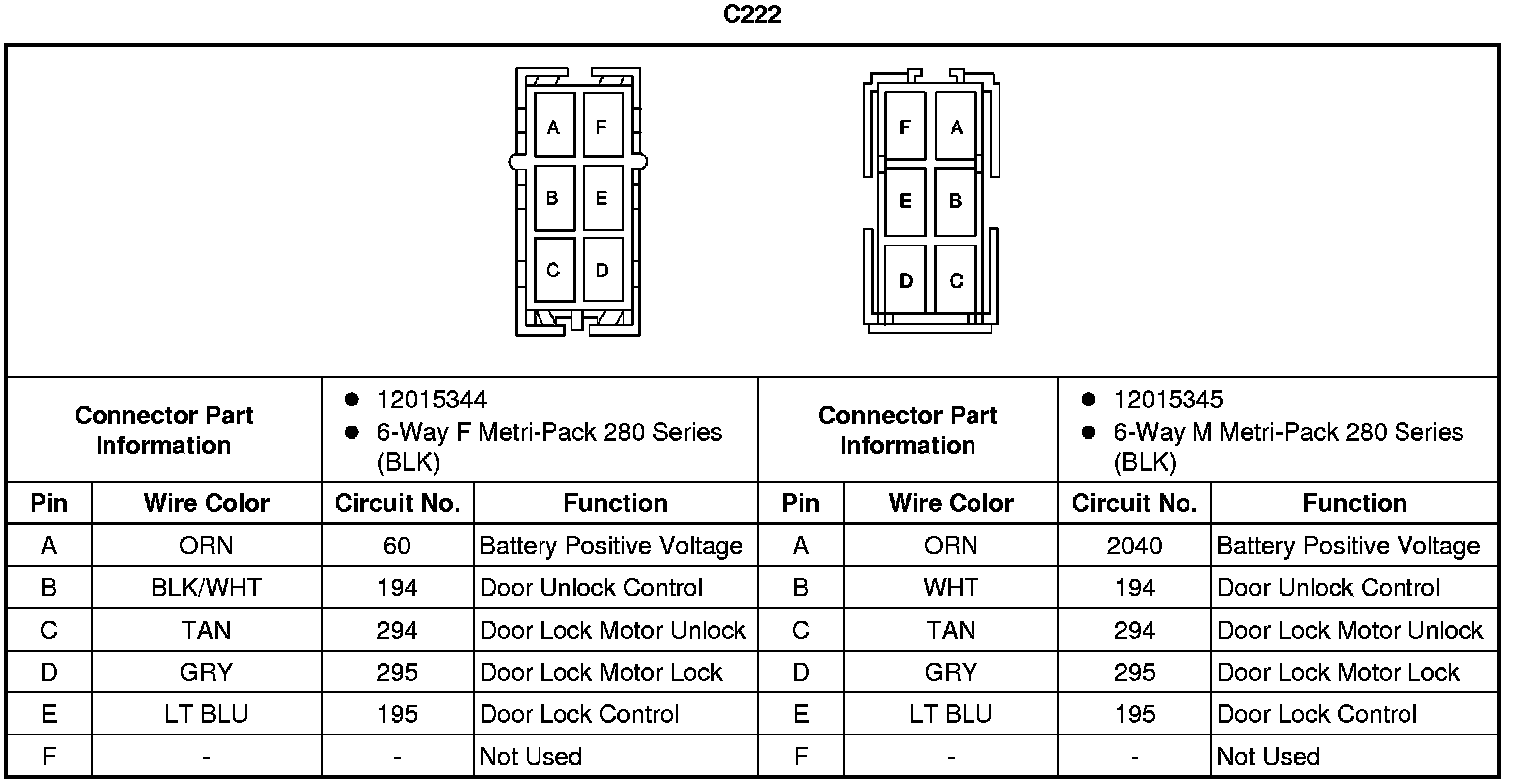

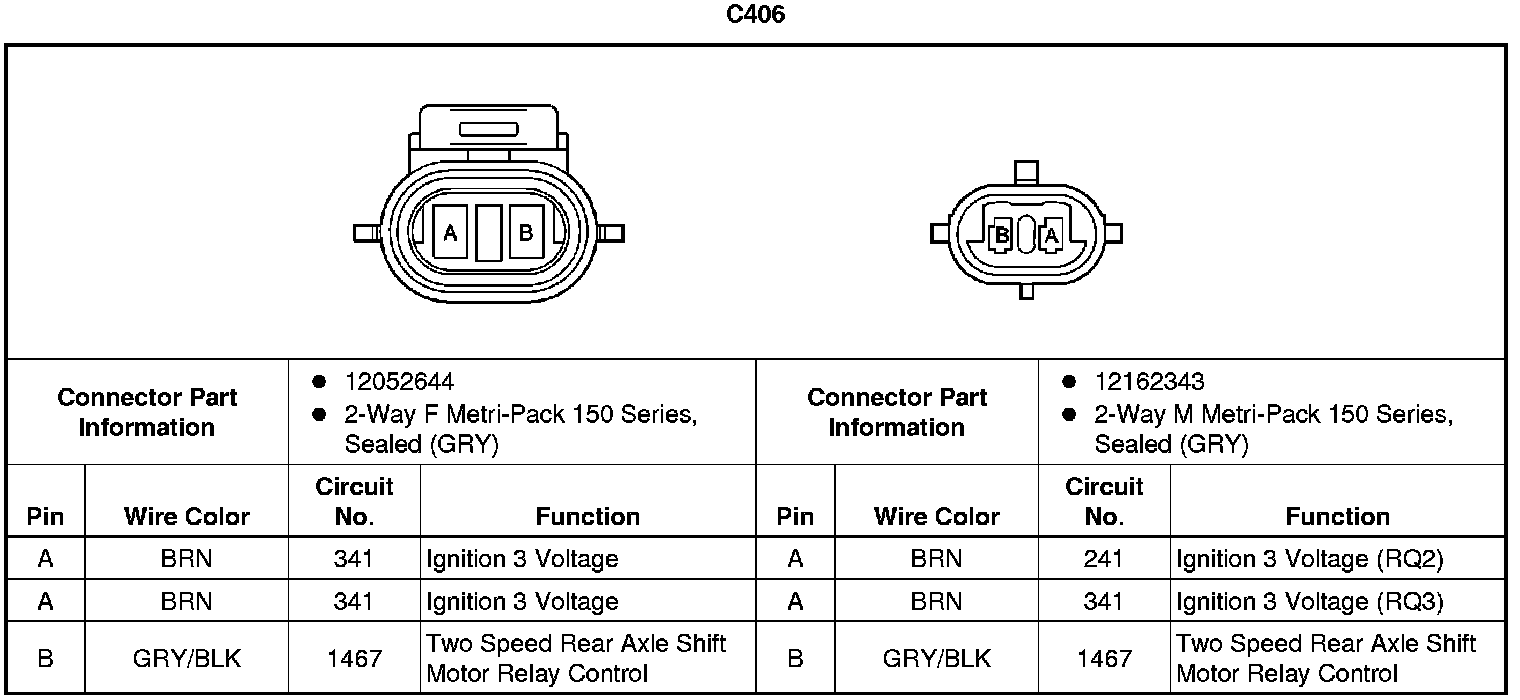

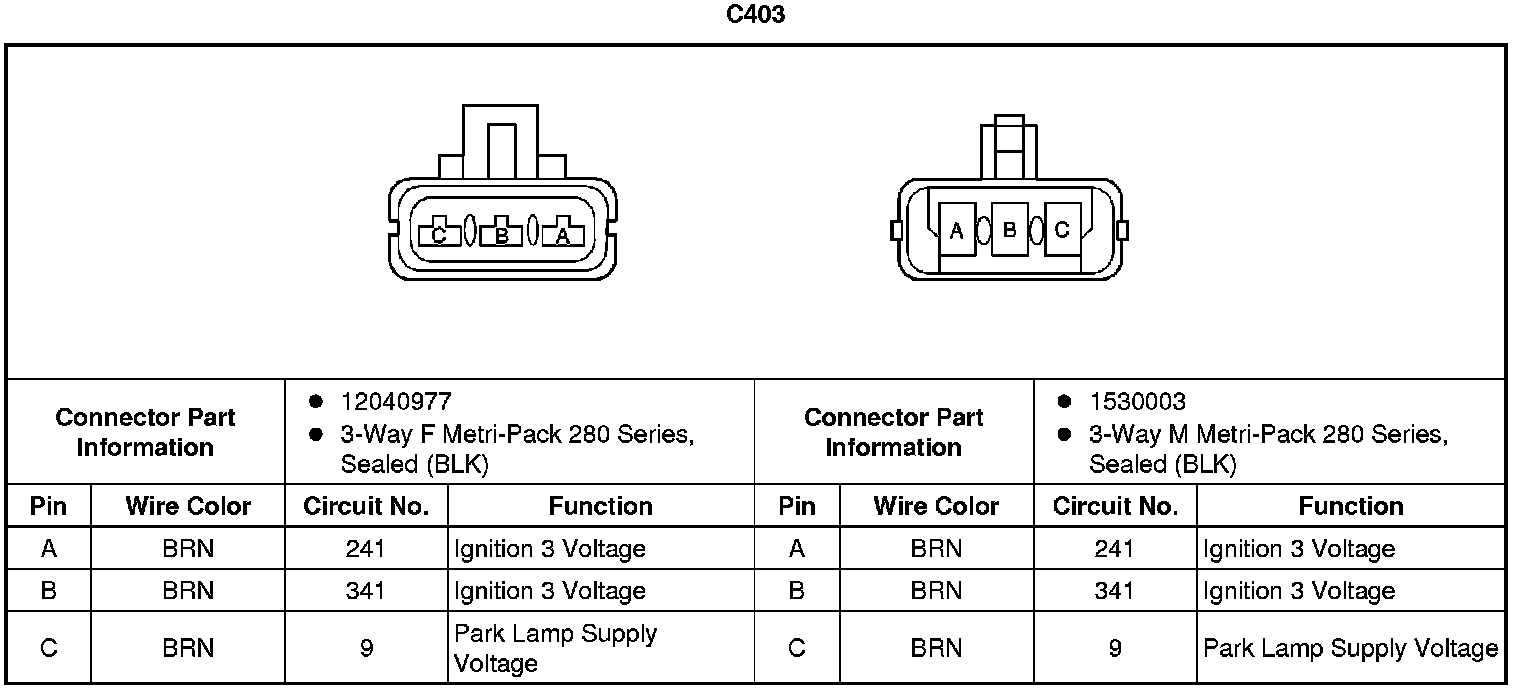

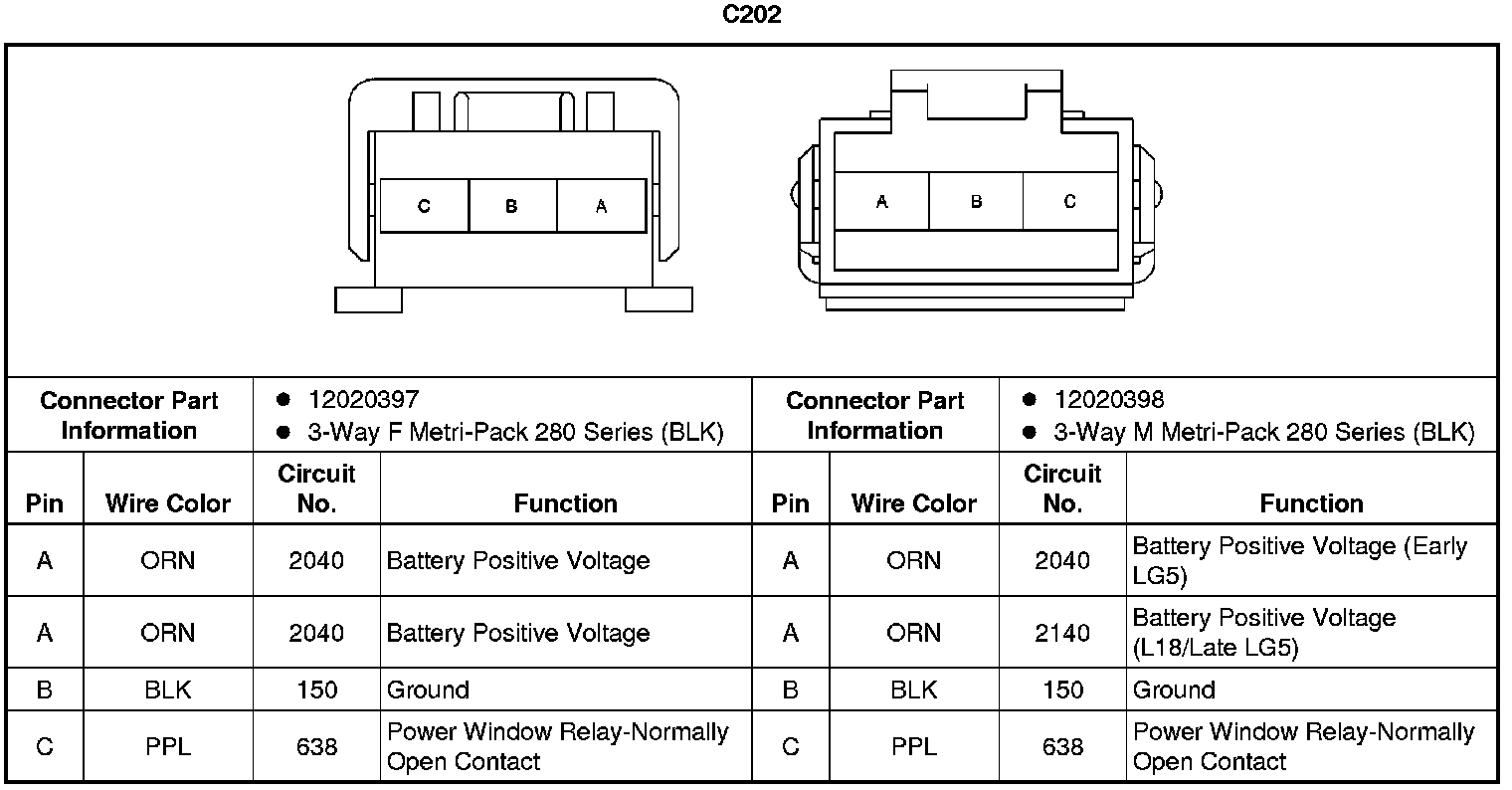

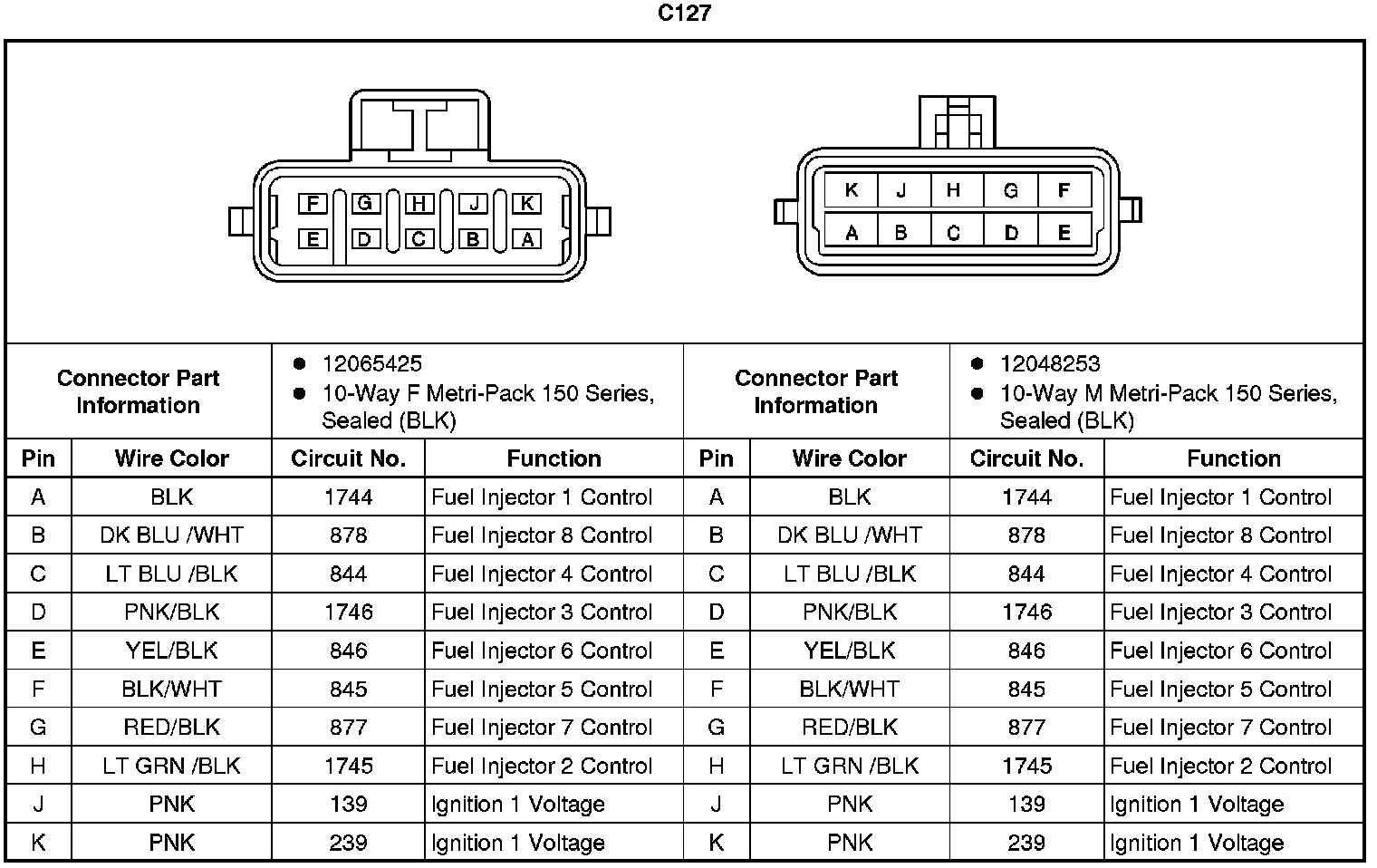

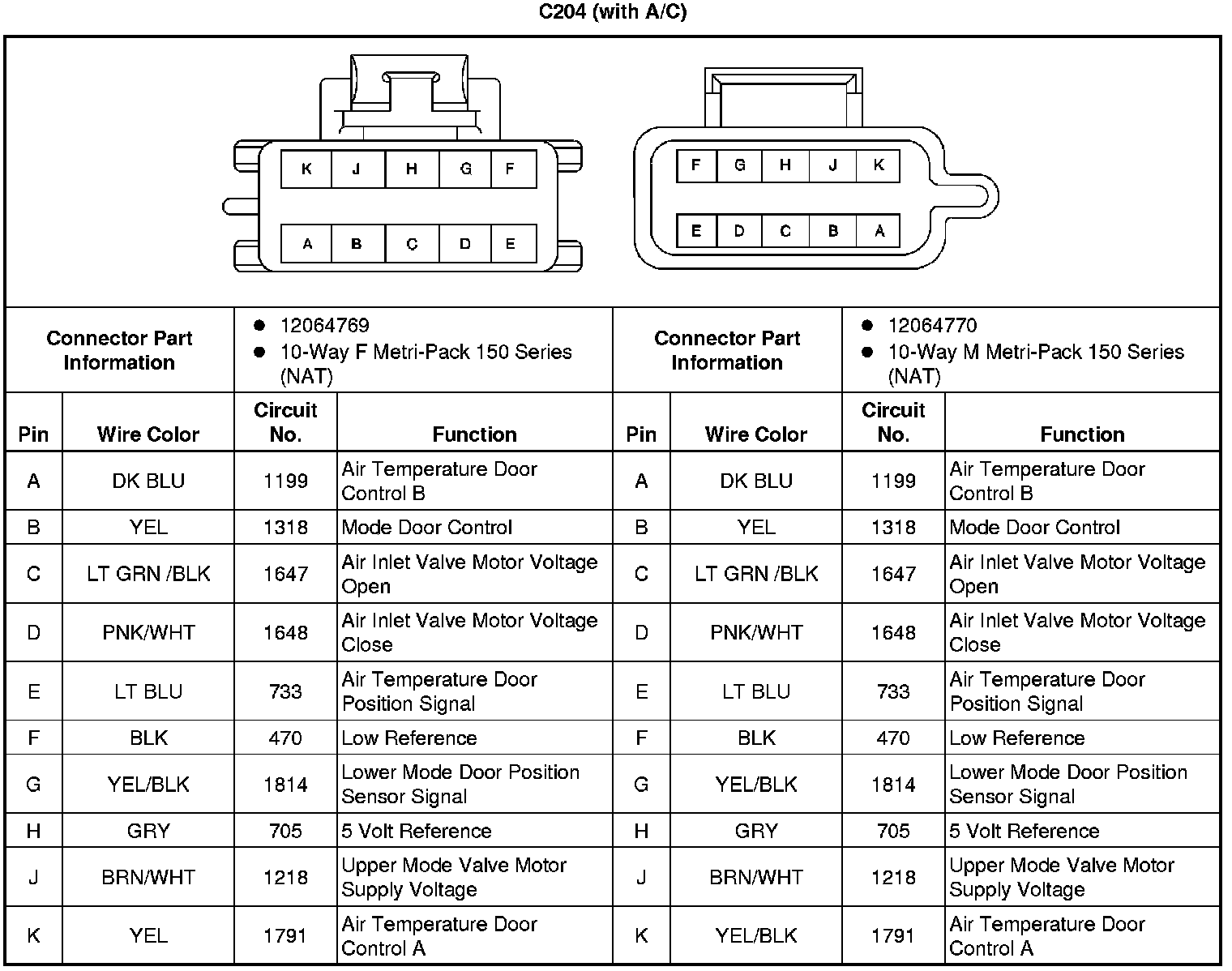

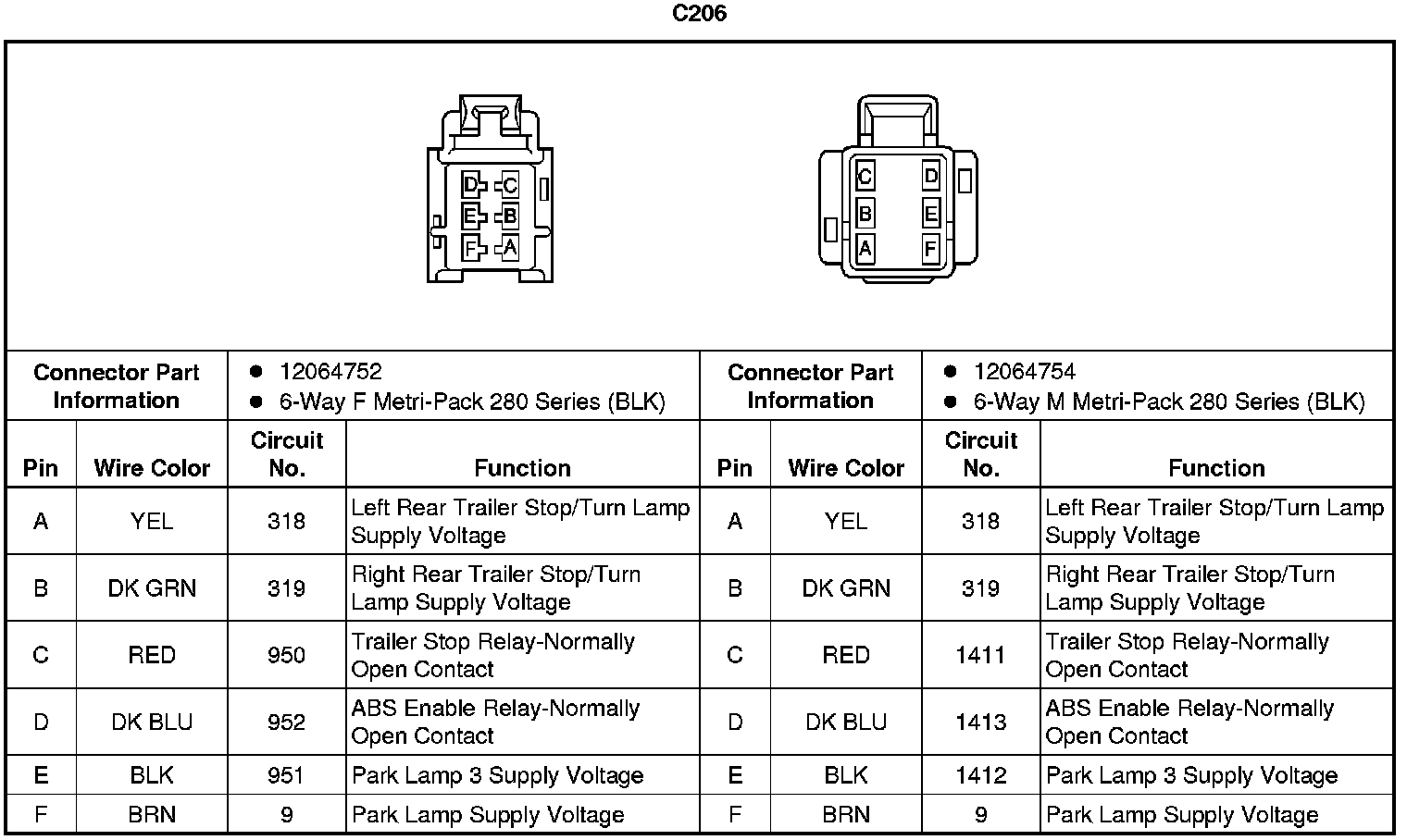

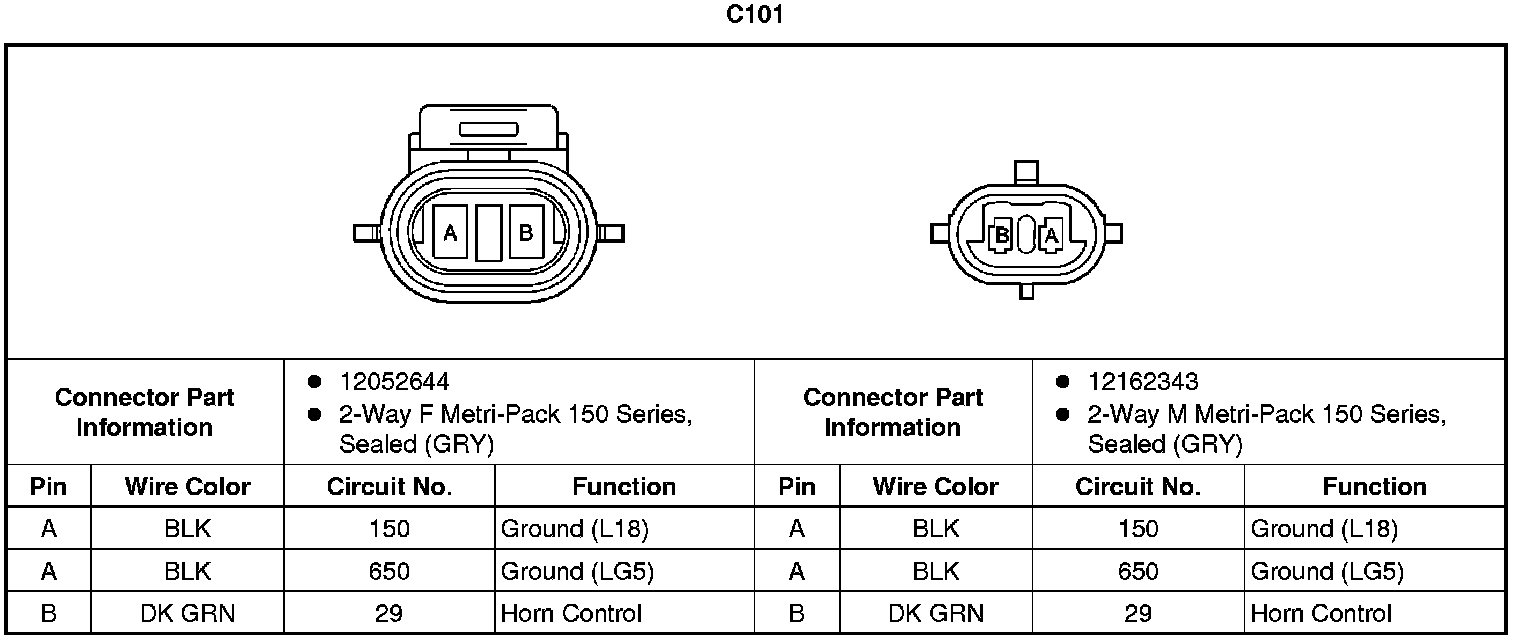

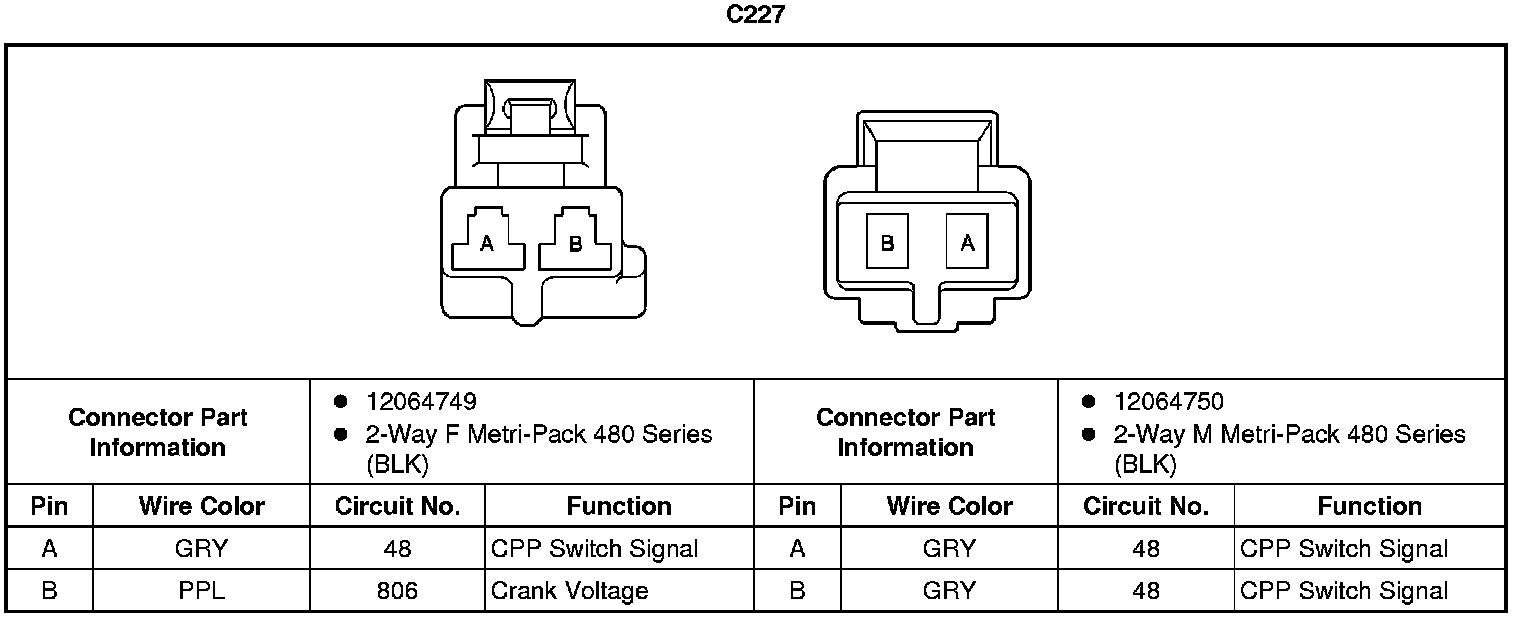

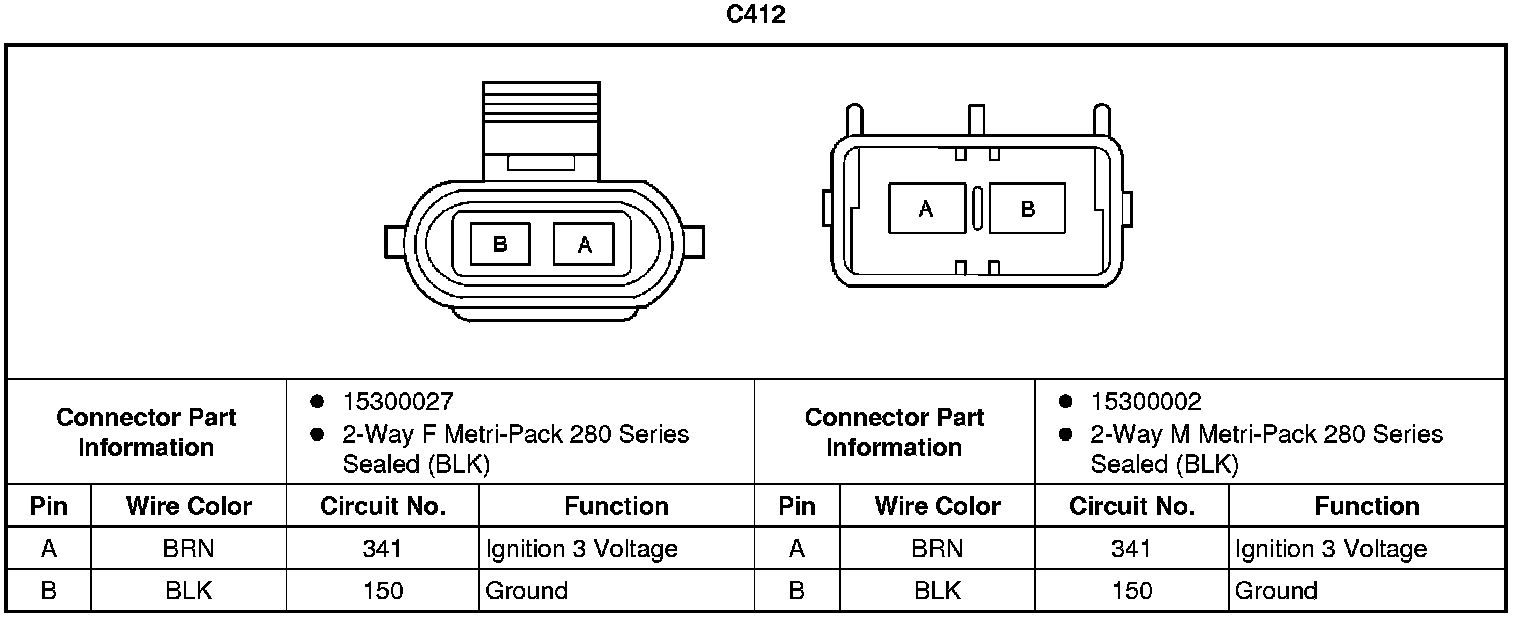

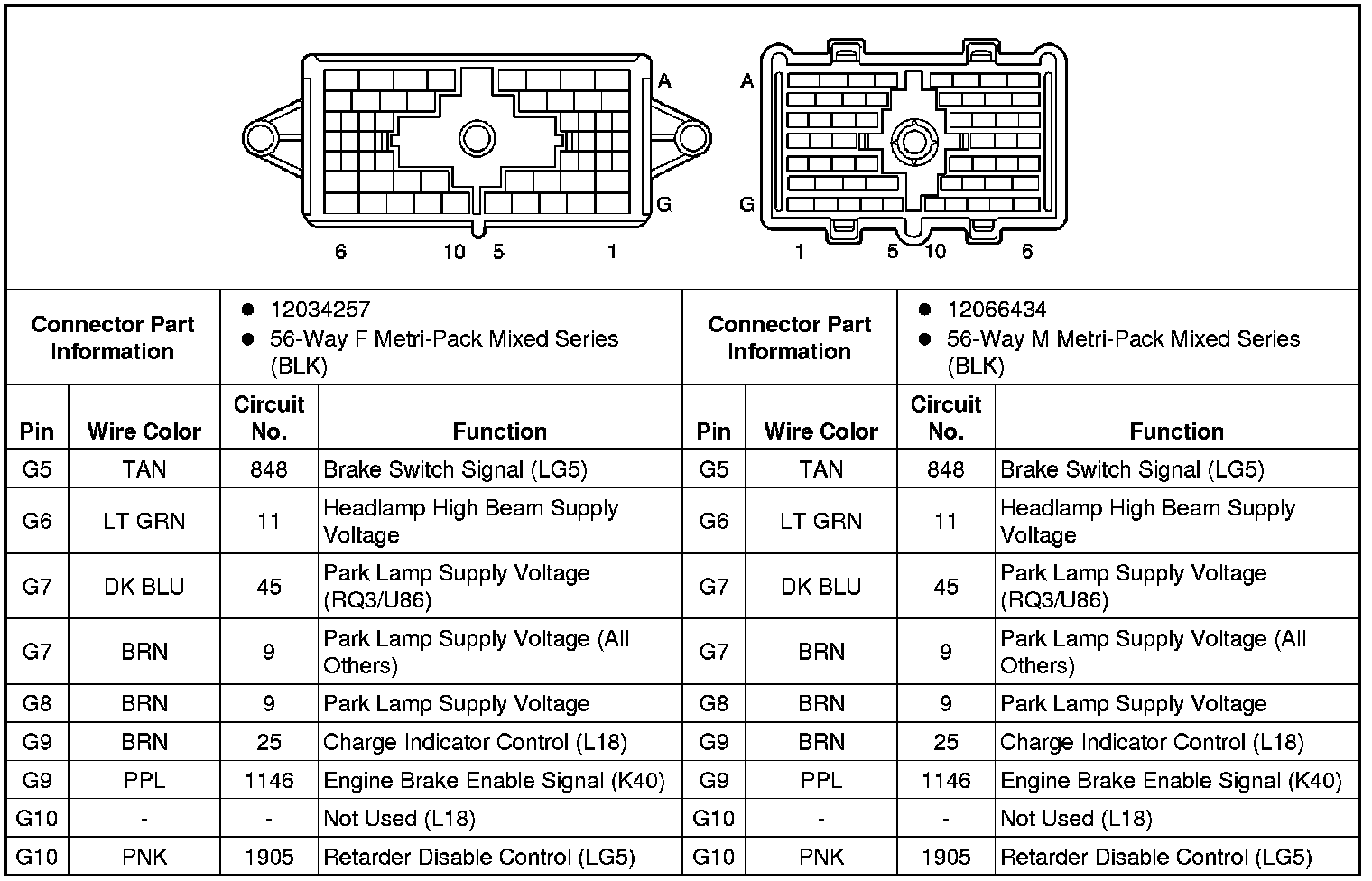

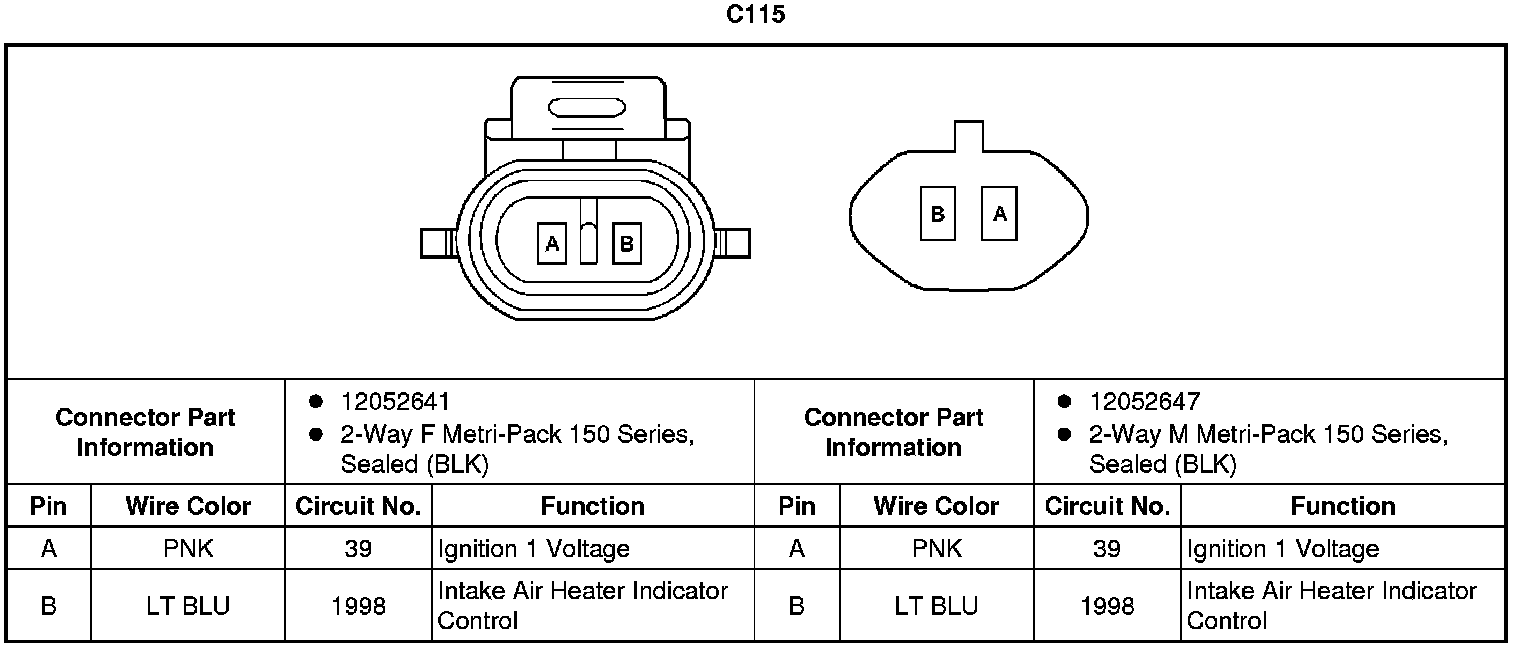

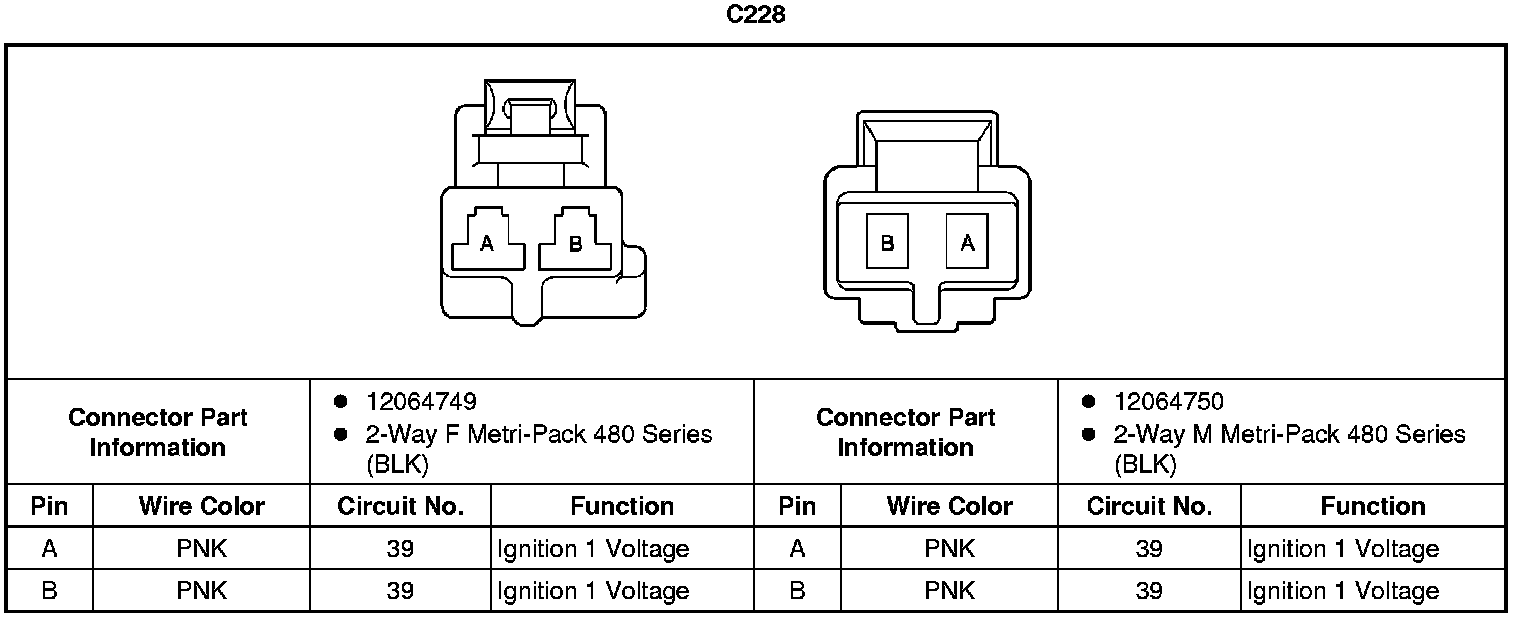

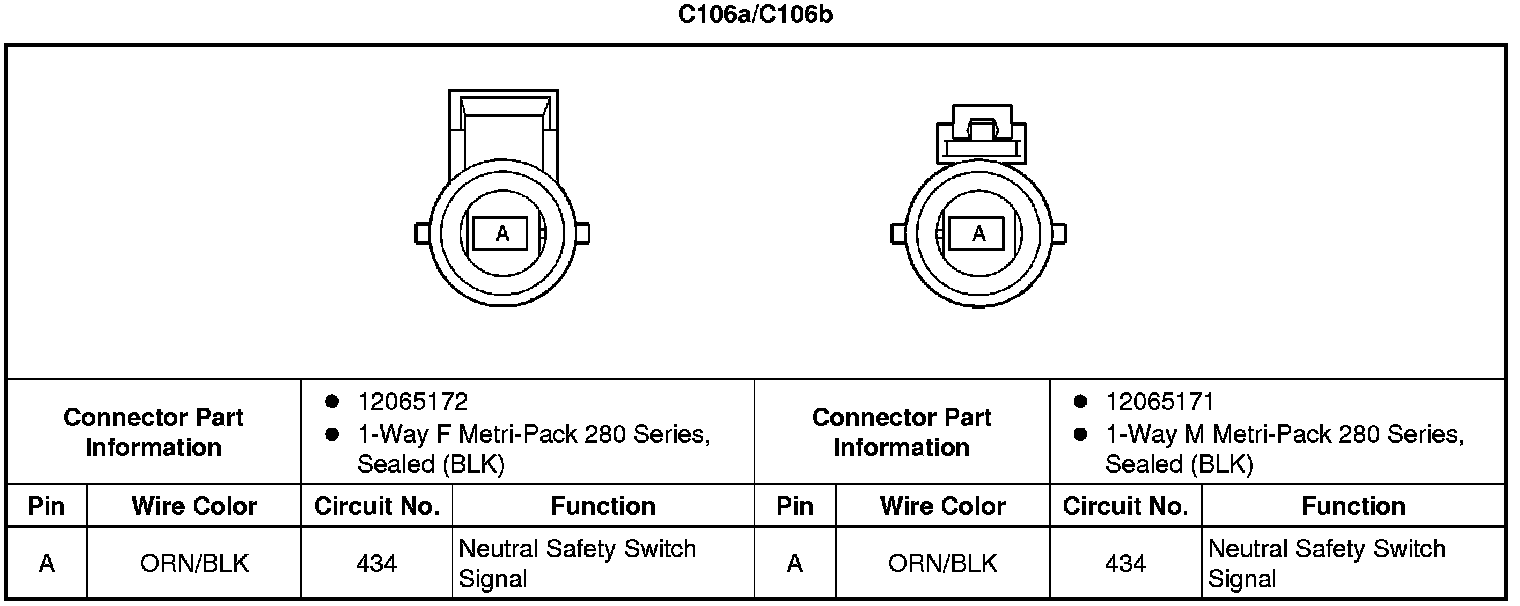

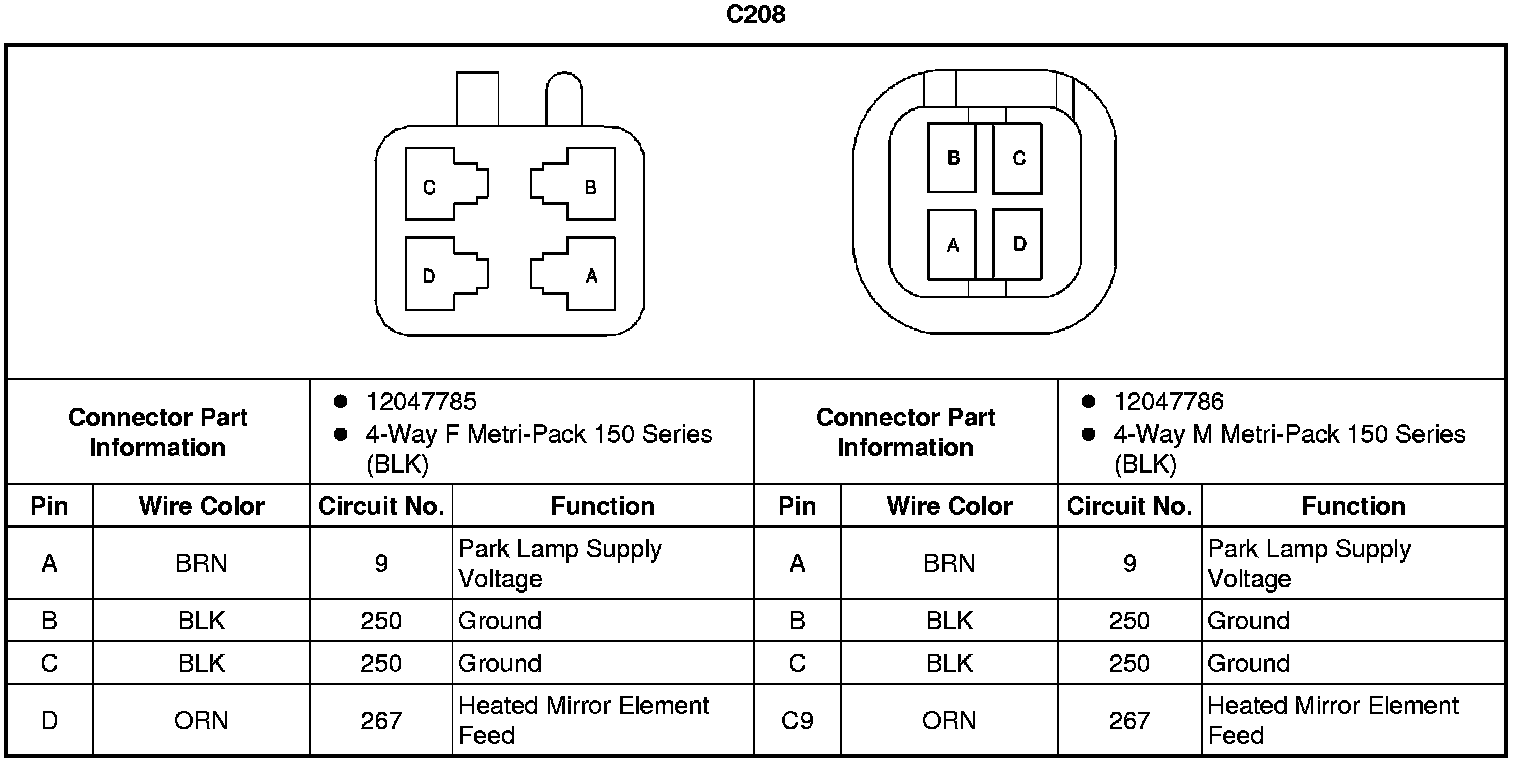

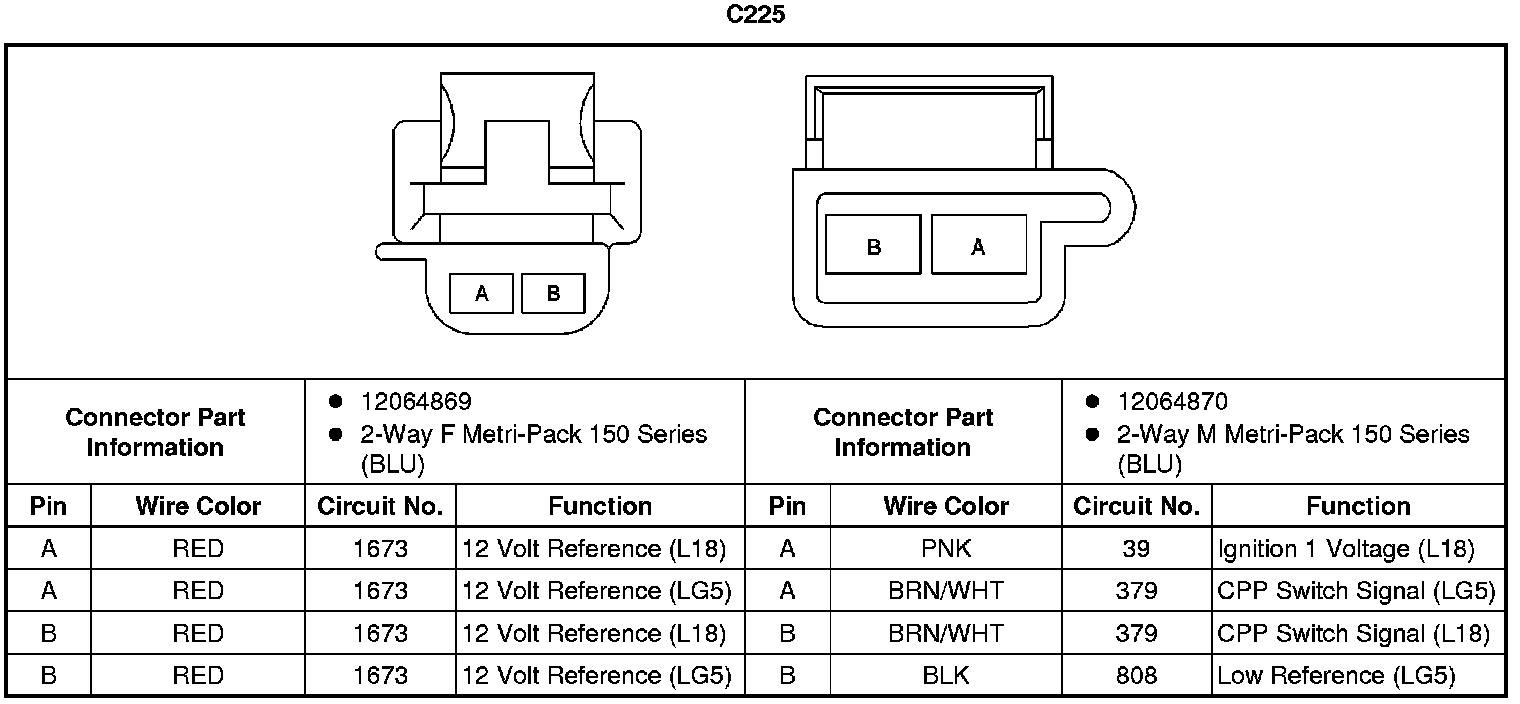

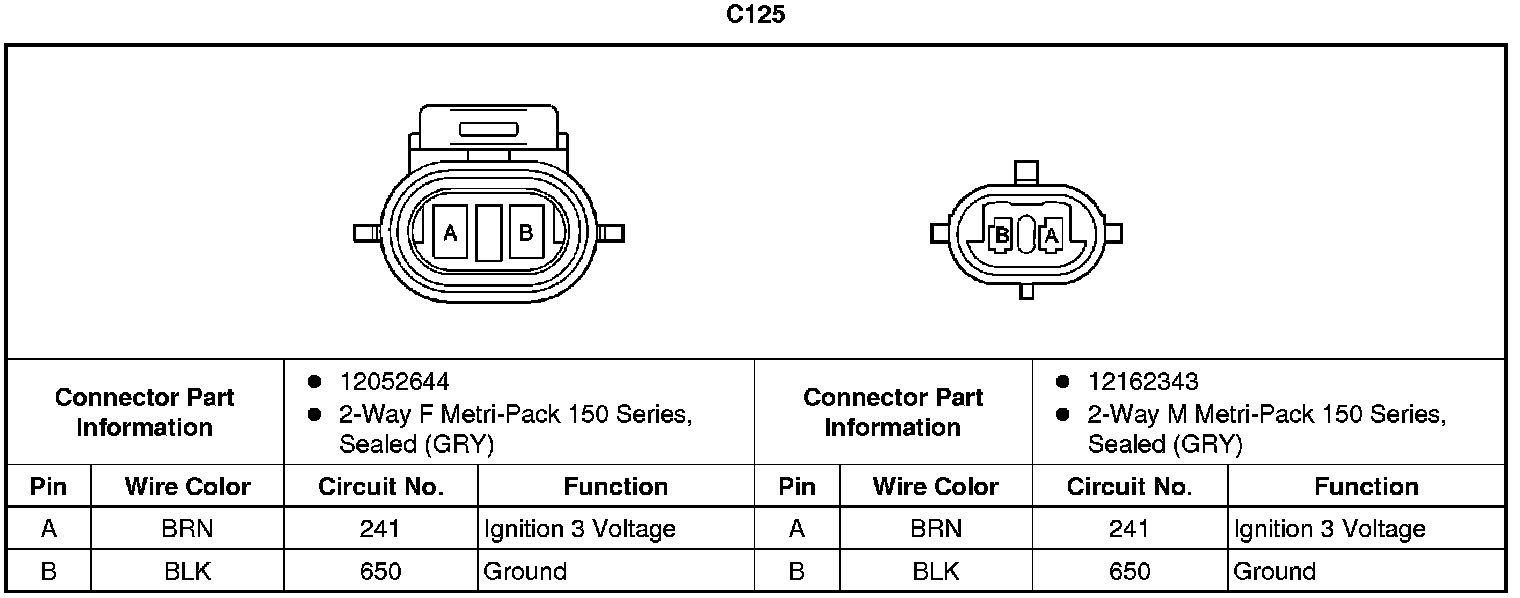

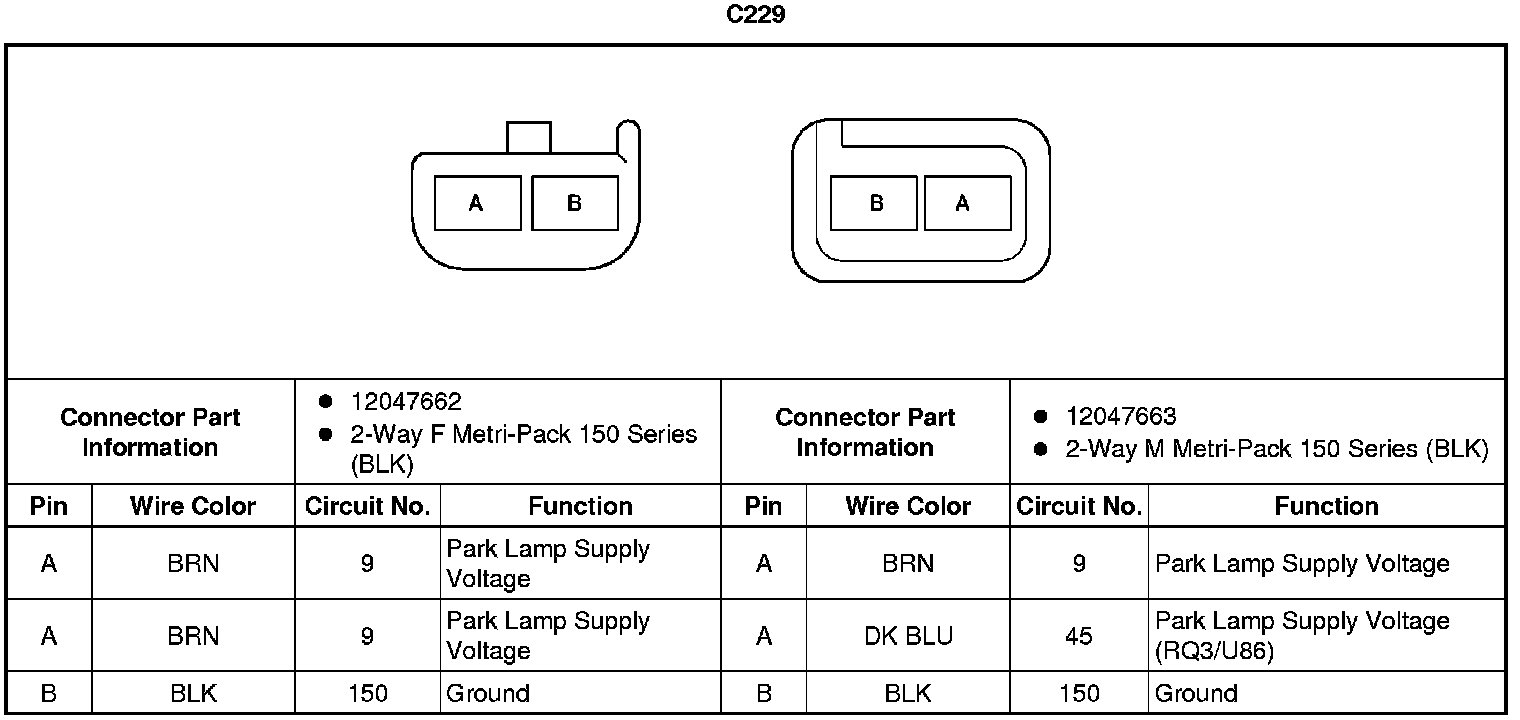

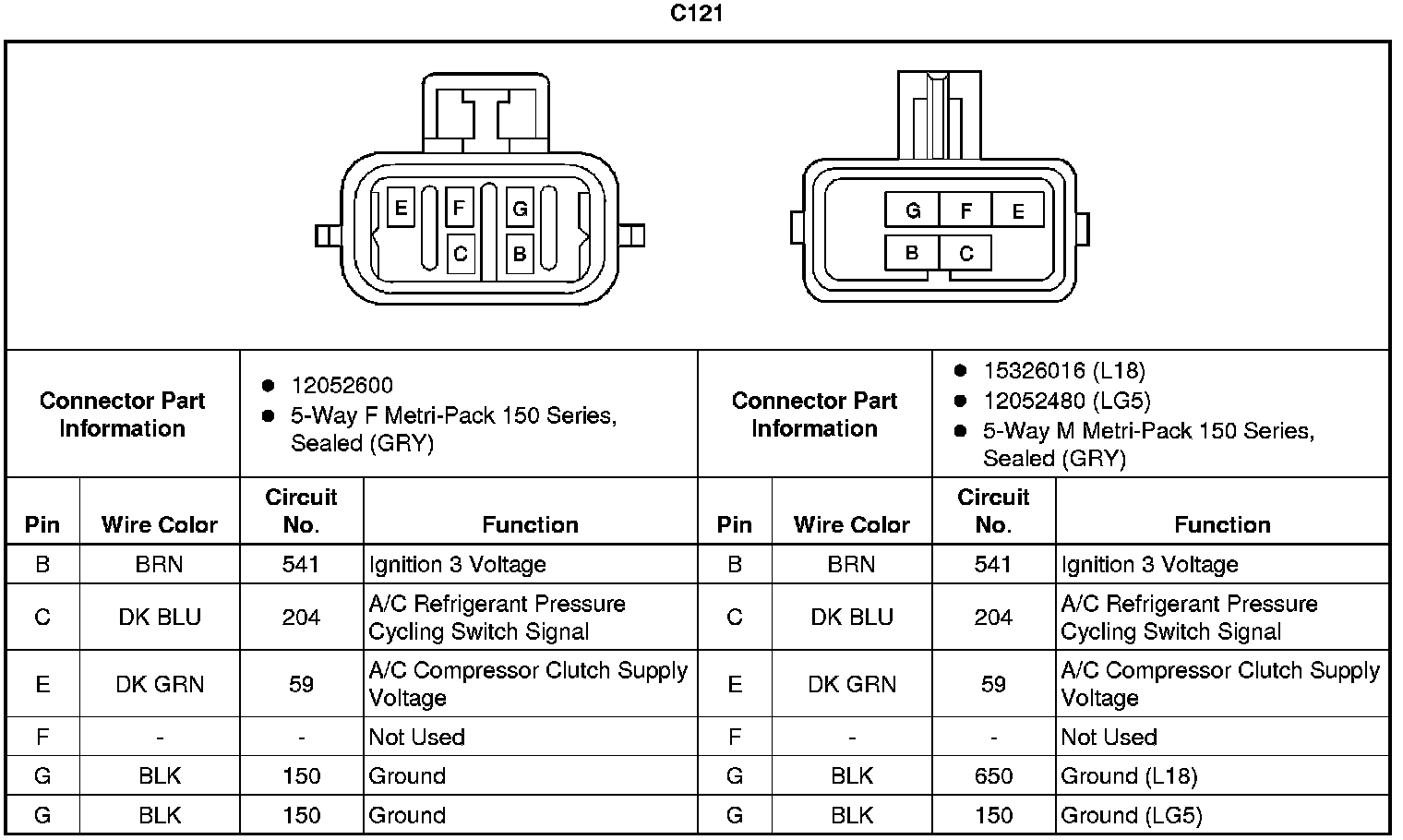

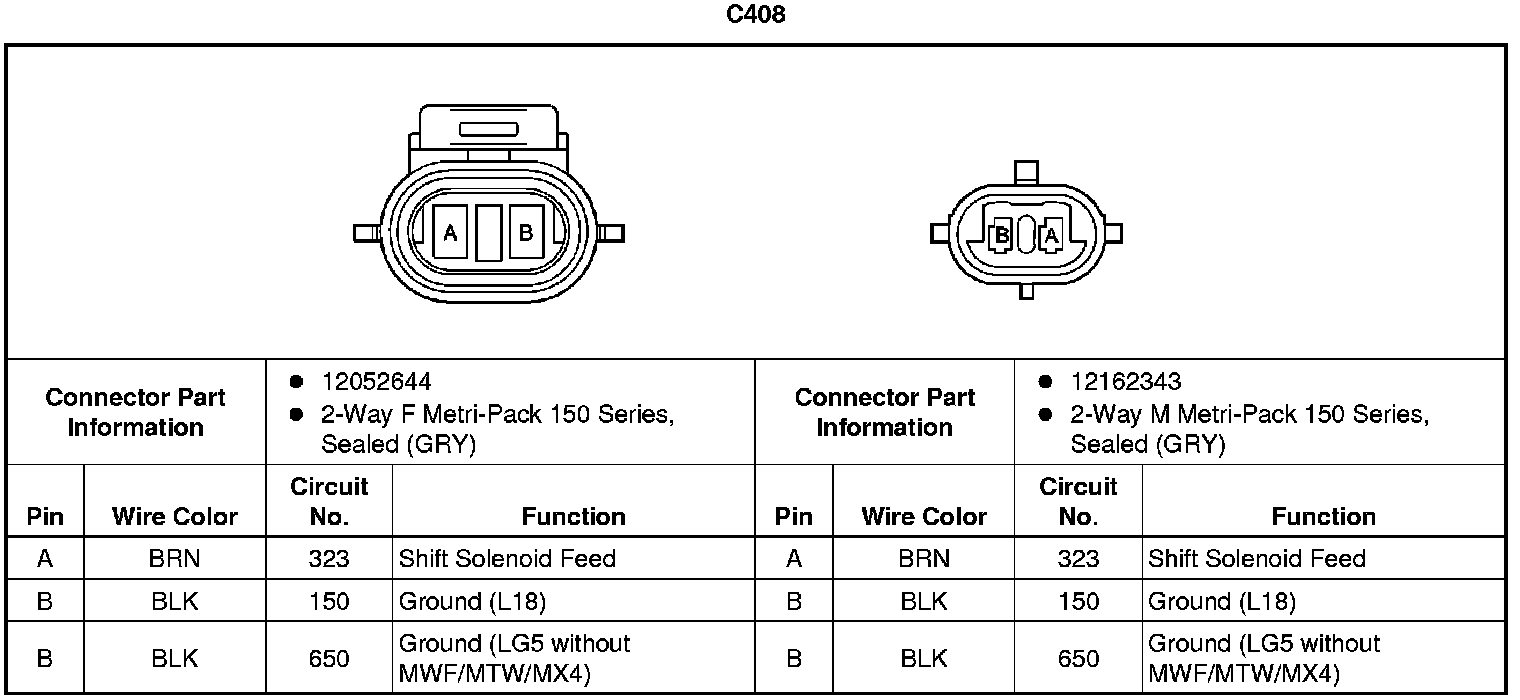

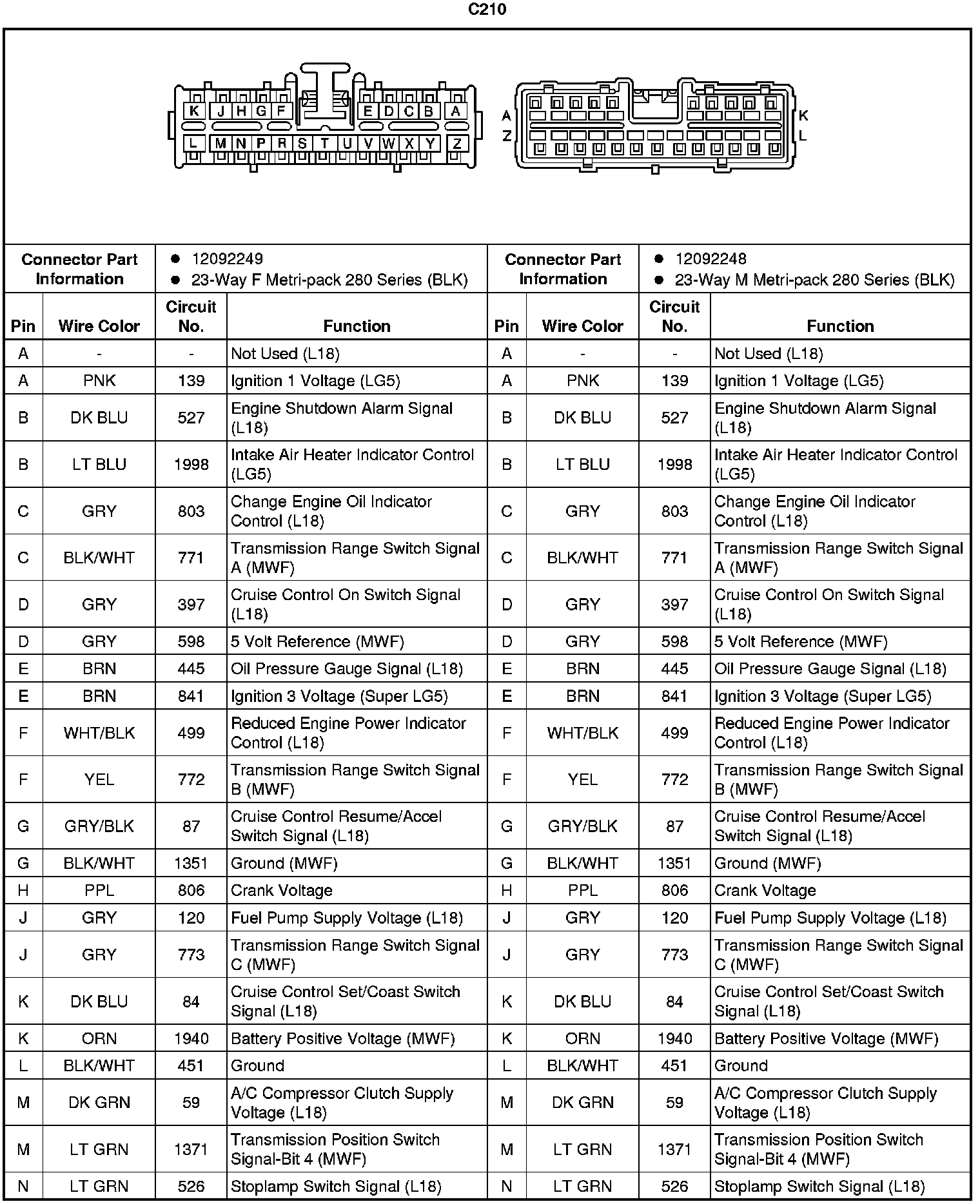

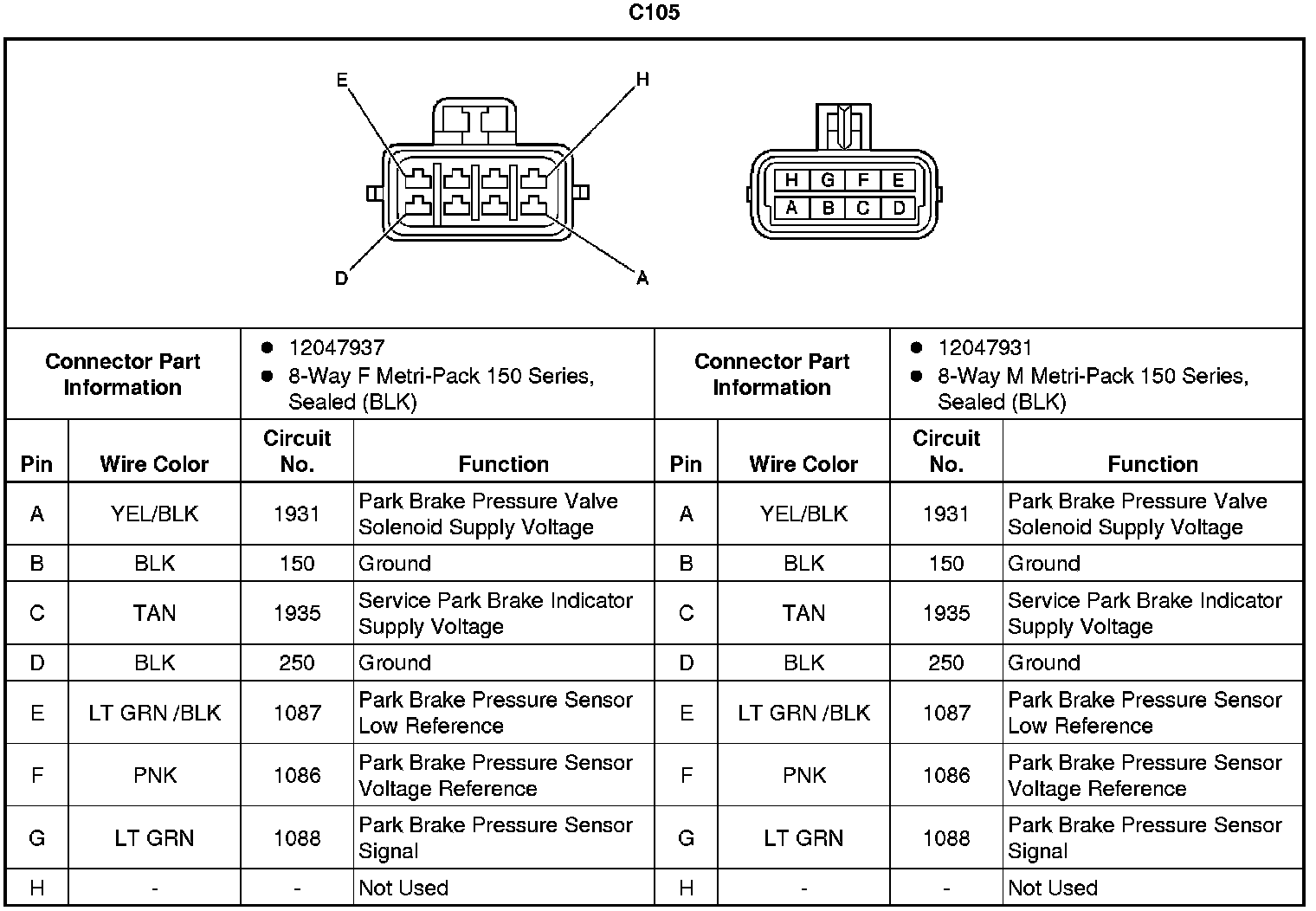

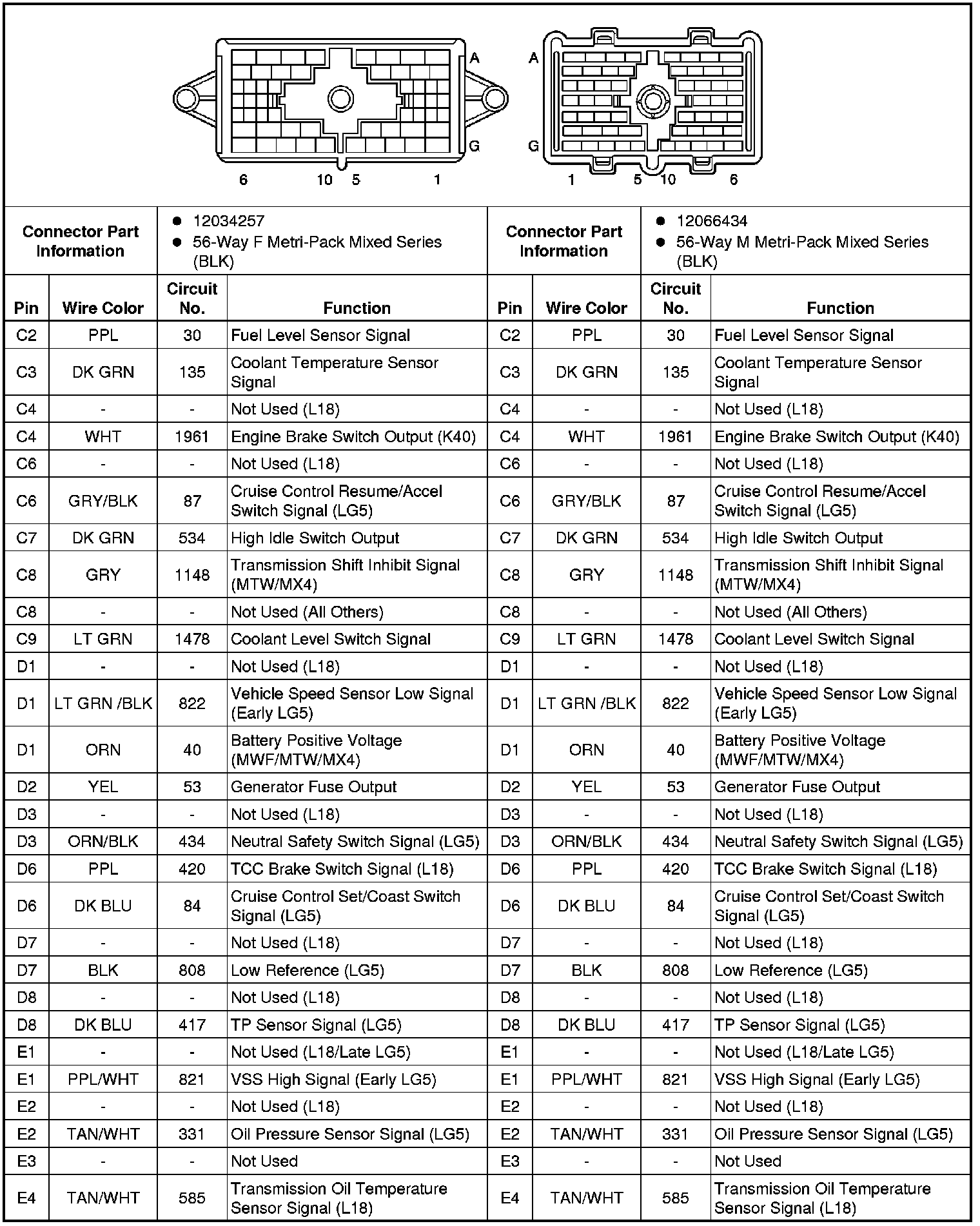

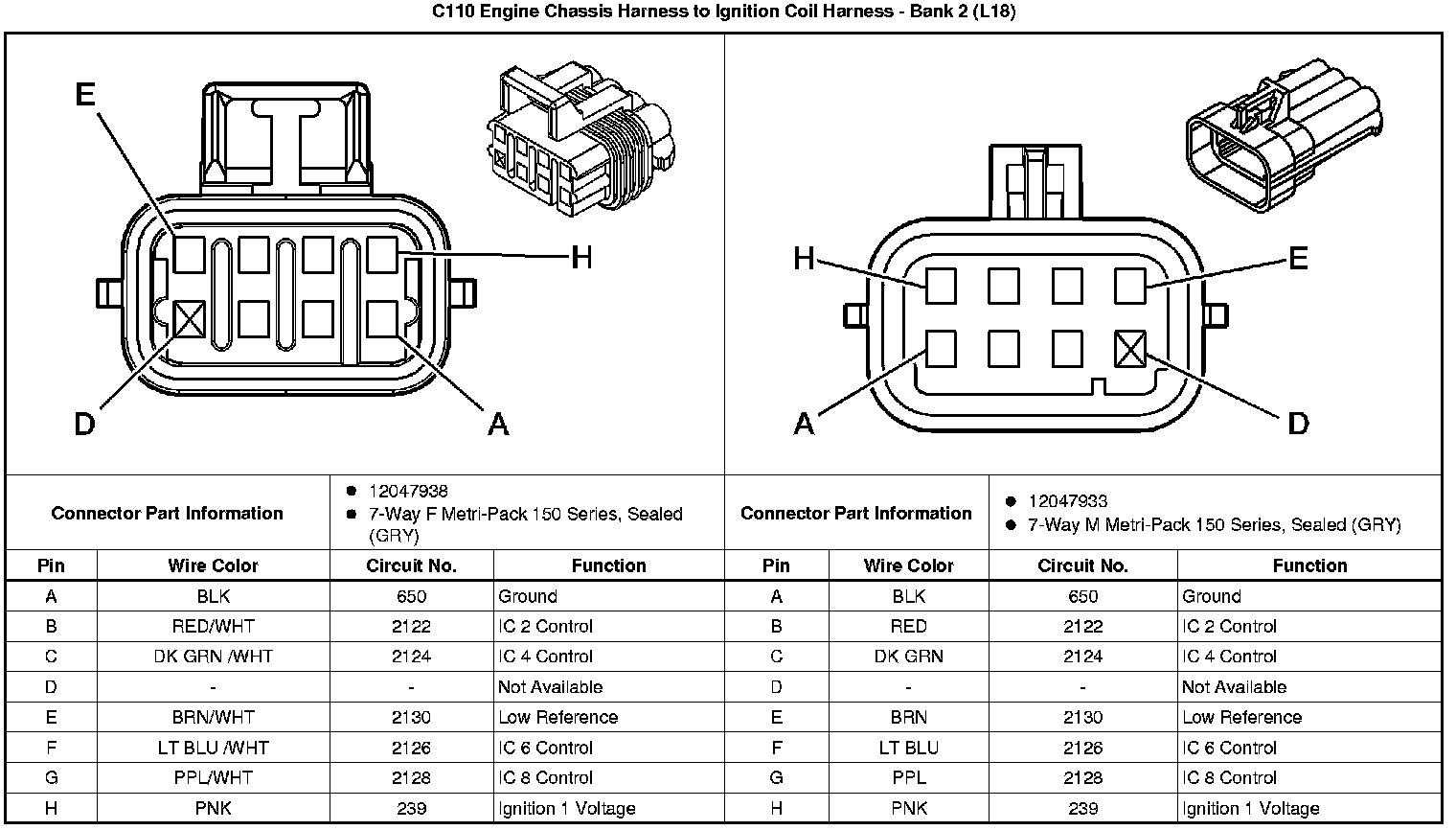

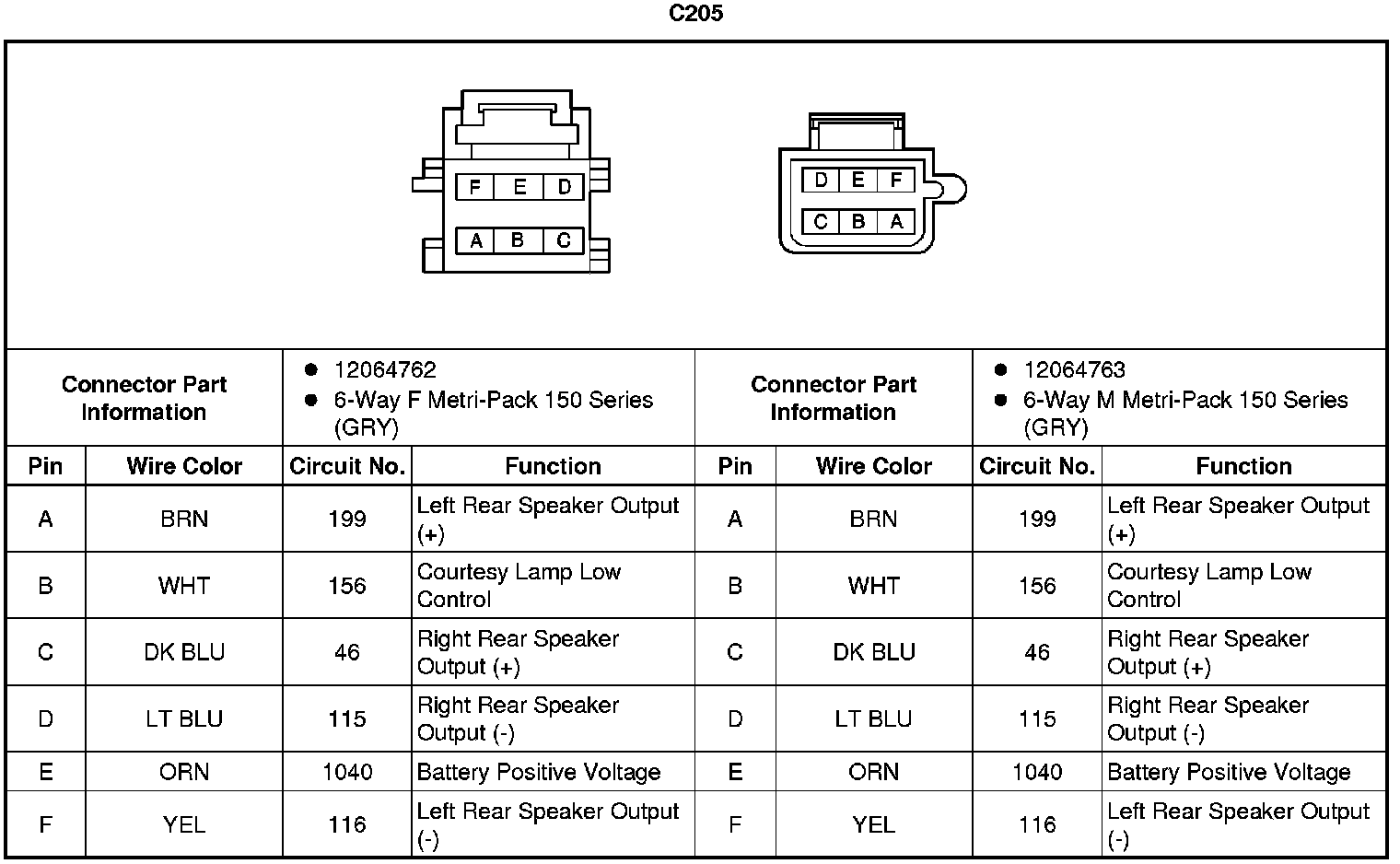

Inline Harness Connector End Views

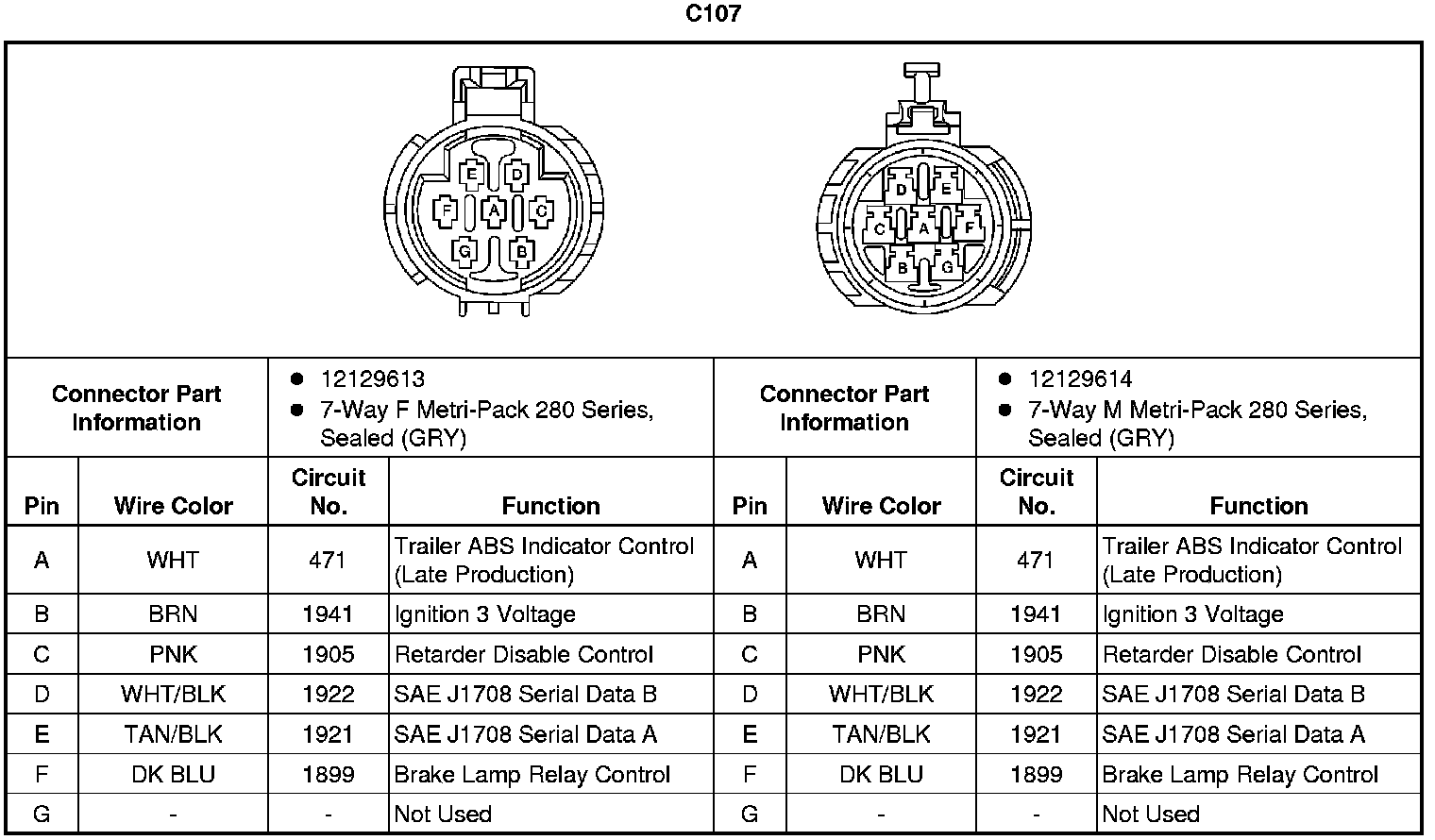

Inline Harness Connector End Views

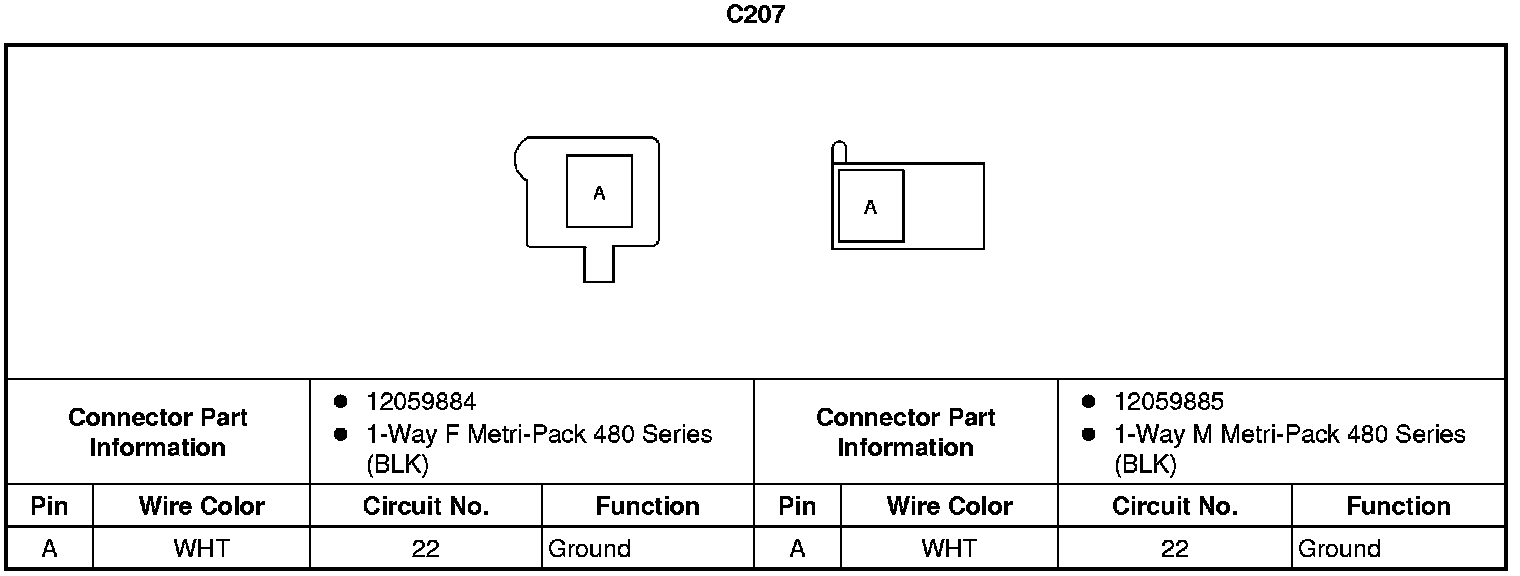

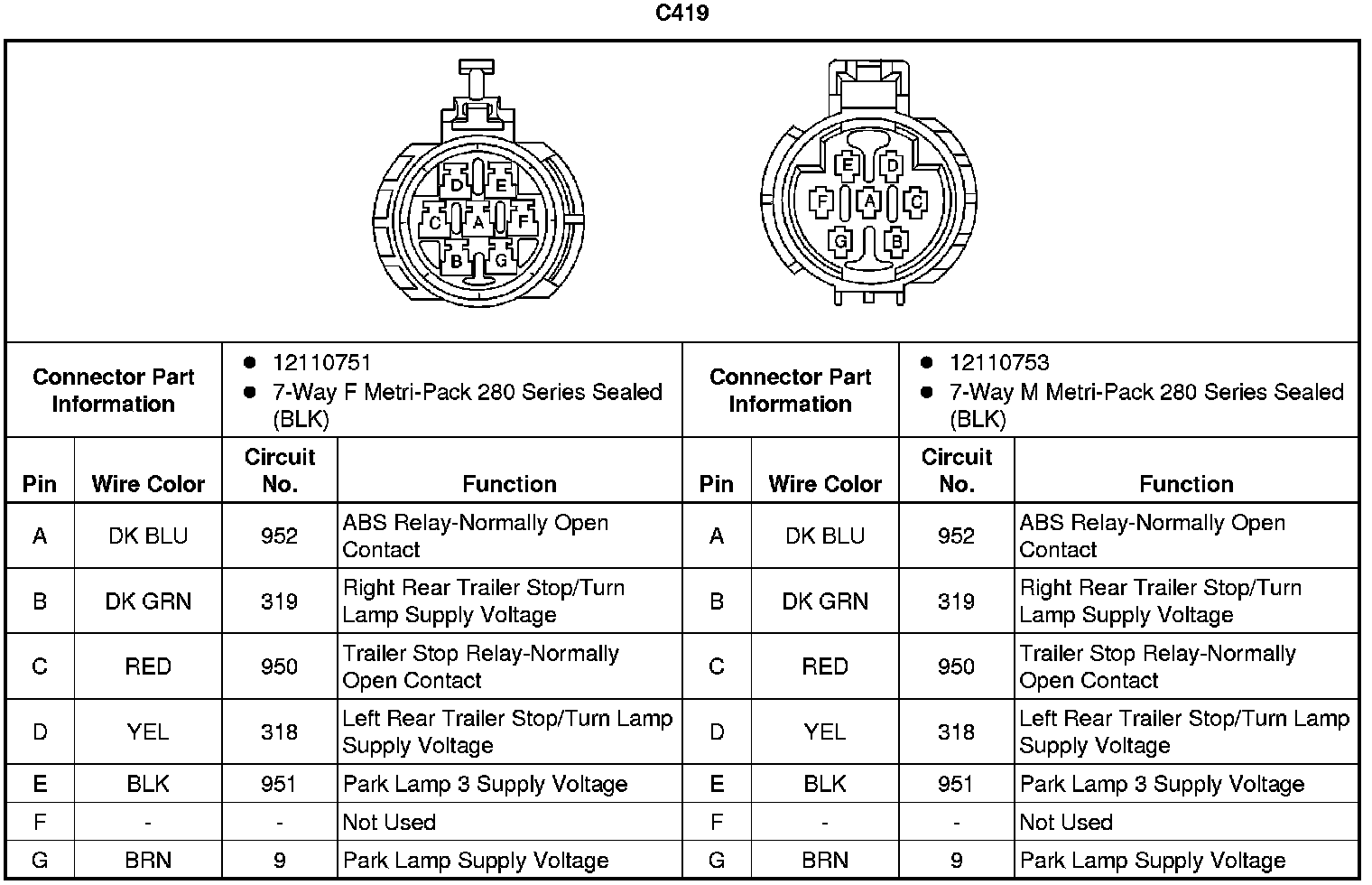

Inline Harness Connector End Views
