Chevy Truck
>>
2001
>>
C 6500 Kodiak V8-8.1L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Differential Assembly
Differential Assembly

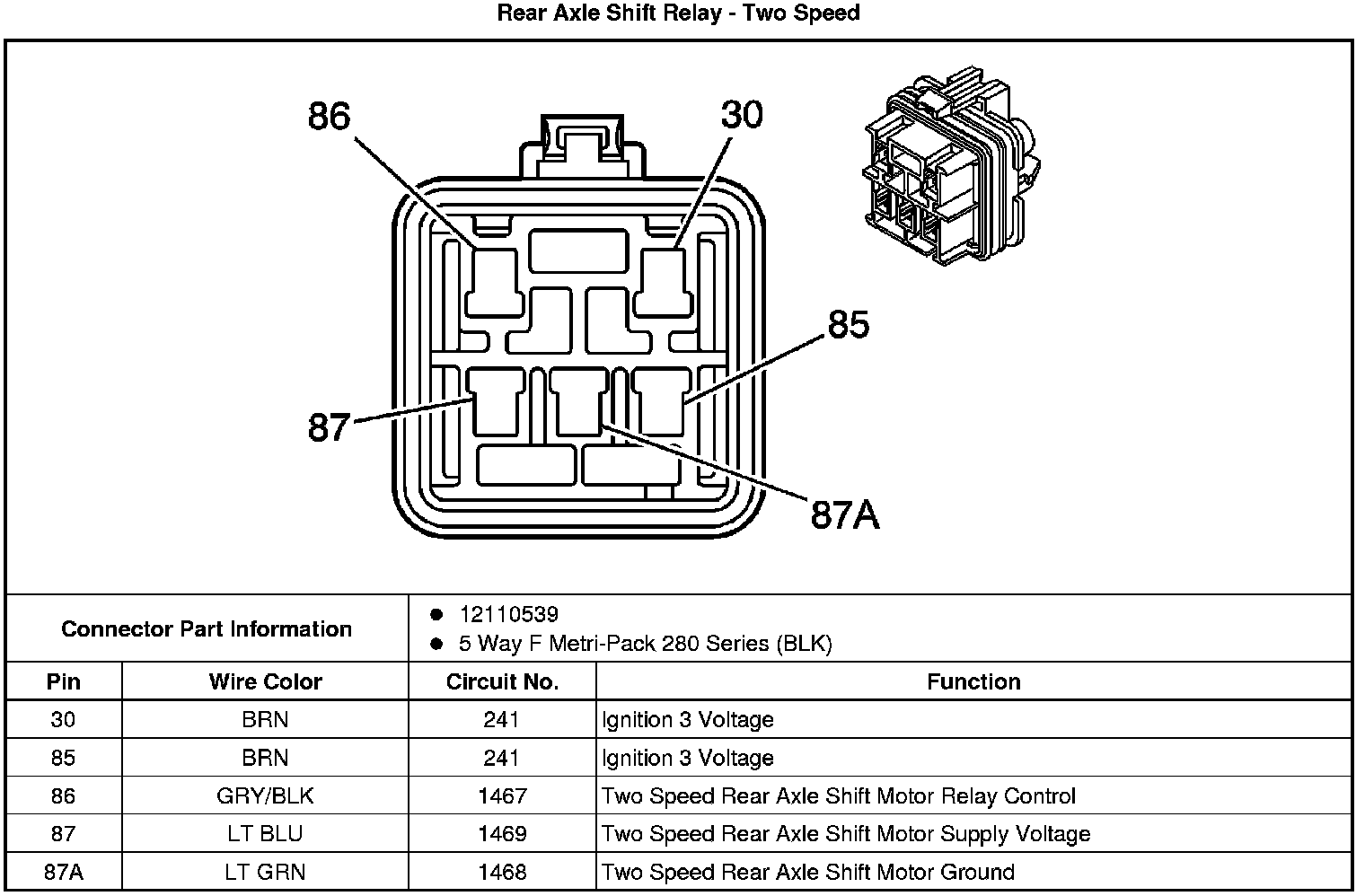

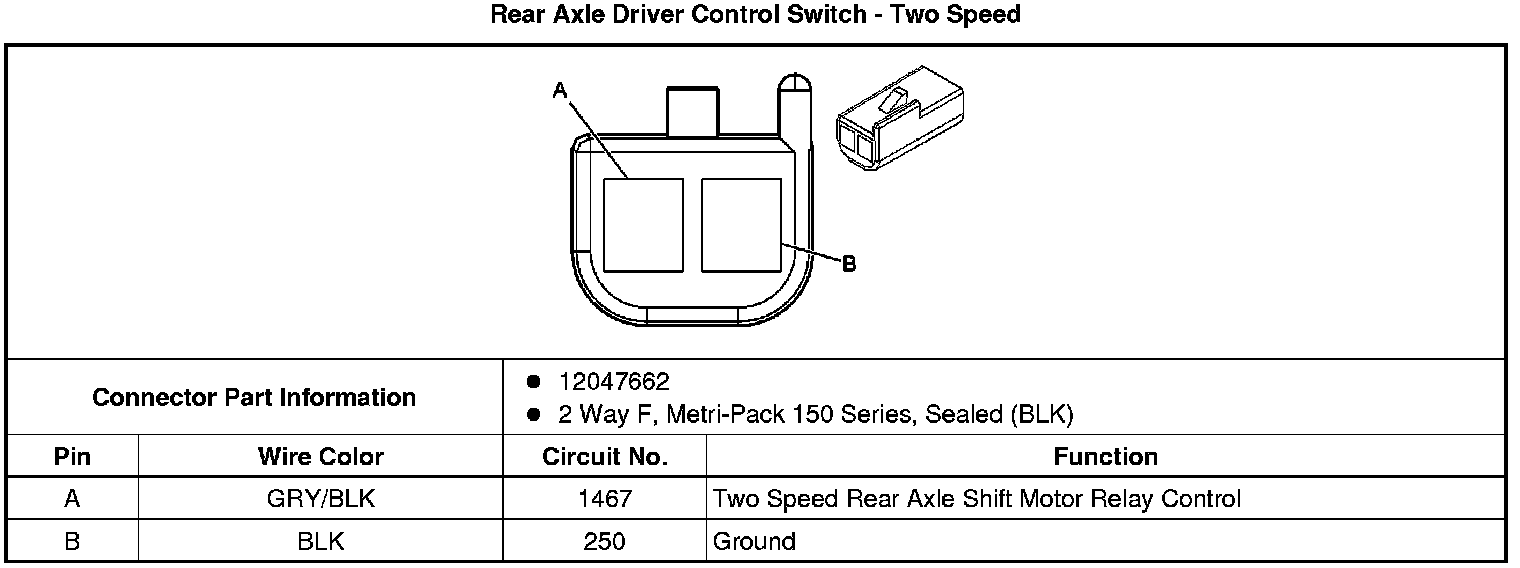

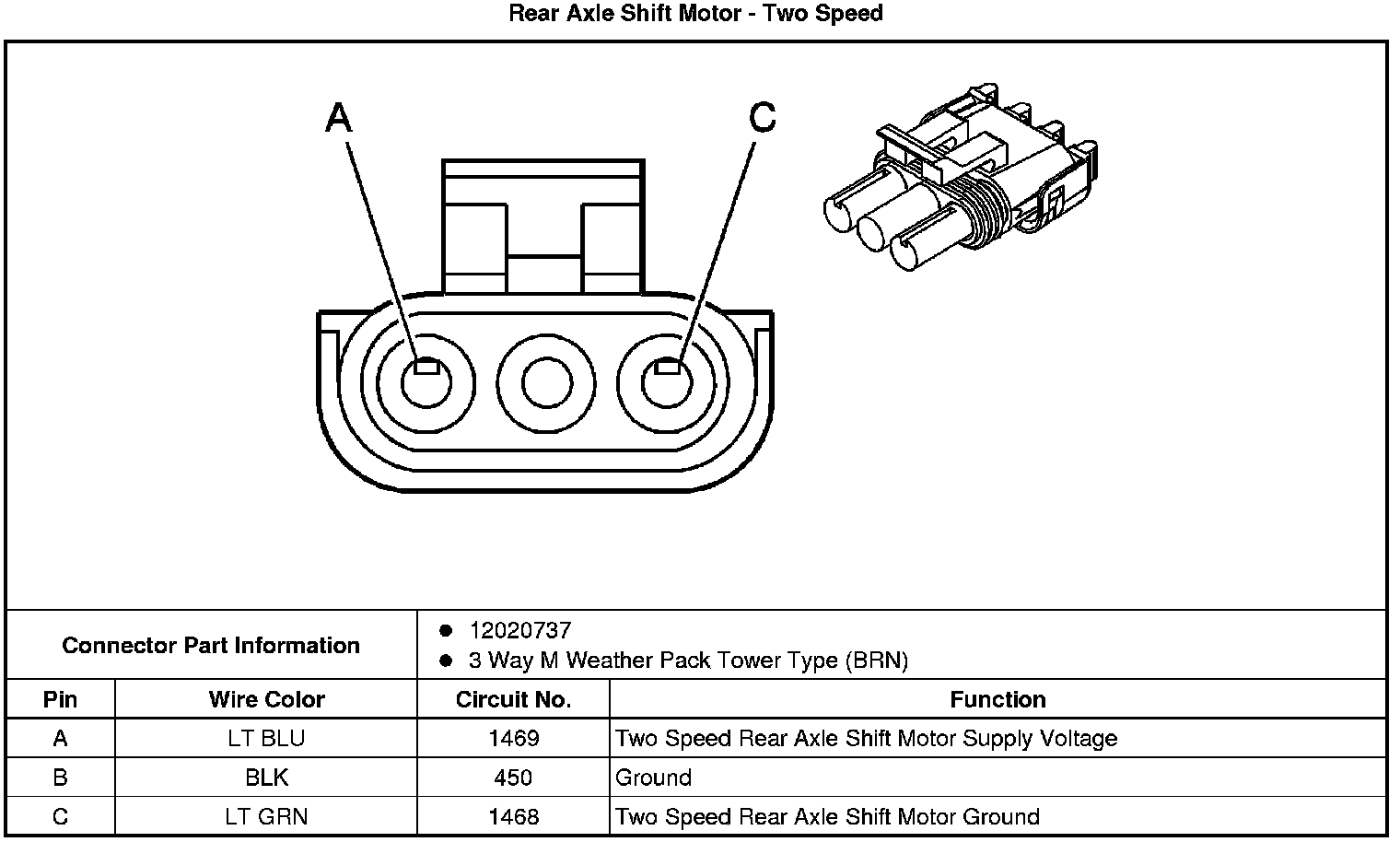

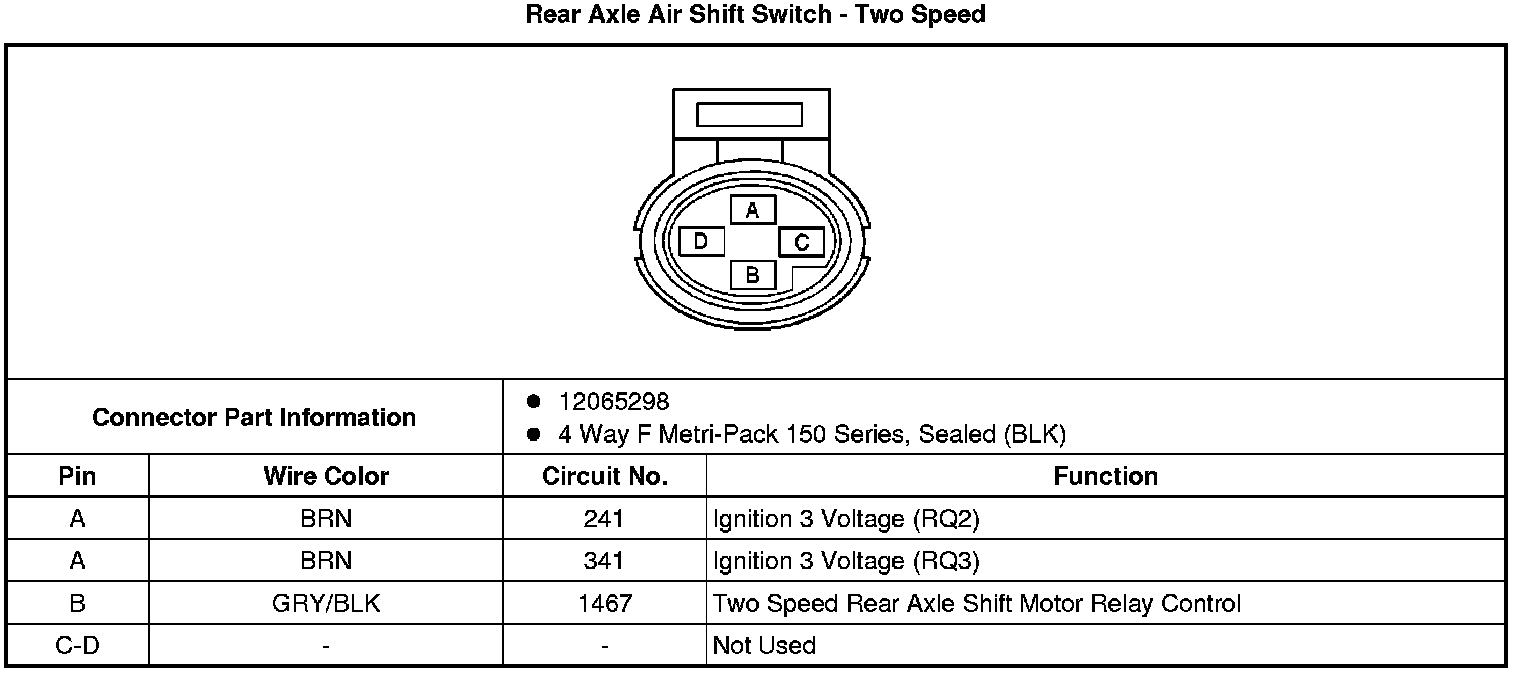

Rear Axle Connector End Views
