Seat Replacement - Suspension

Seat Replacement - Suspension

Removal Procedure

In order to repair or replace the National suspension seat components, refer to the manufacturer's literature accompanying the vehicle at the time of purchase.

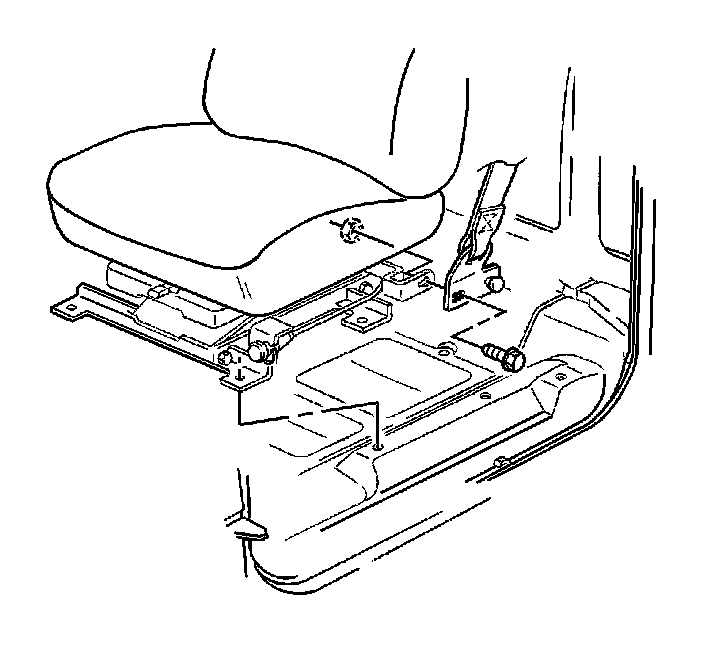

1. Remove the seat belt bracket bolt.
2. Remove the seat belt bracket bolt and washer, if equipped.

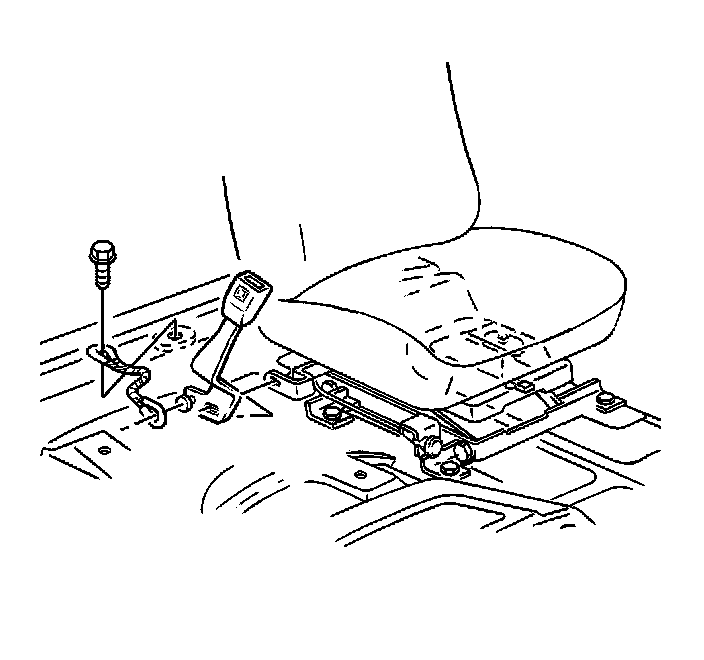

3. Remove the seat belt from the buckle side bolt.
4. Remove the seat belt from the buckle side from the vehicle.




5. Remove the seat bolts. DISCARD the seat bolts.
6. Remove the suspension seat from the vehicle.




7. Remove the seat bolt sealers. DISCARD the seat bolt sealers.

Installation Procedure




1. Install the NEW seat bolt sealers.




2. Install the suspension seat in the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the NEW suspension seat bolts.

Tighten the bolts to 55 Nm (41 lb ft).




4. Install the seat belt bracket bolt.
5. Install the seat belt bracket nut and washer, if equipped.

* Tighten the high back seat belt bracket bolt to 90 Nm (66 lb ft).
* Tighten the low back seat belt bracket bolt to 40 Nm (30 lb ft).




6. Install the seat belt buckle side in the vehicle on the buckle side.
7. Install the seat belt buckle side bolt to the buckle side.

* Tighten the high back seat belt (buckle side) bolt to 90 Nm (66 lb ft).
* Tighten the low back seat belt (buckle side) bolt to 40 Nm (30 lb ft).
