Auxiliary Battery

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Turn off all the lamps and accessories.
2. Turn the ignition OFF.

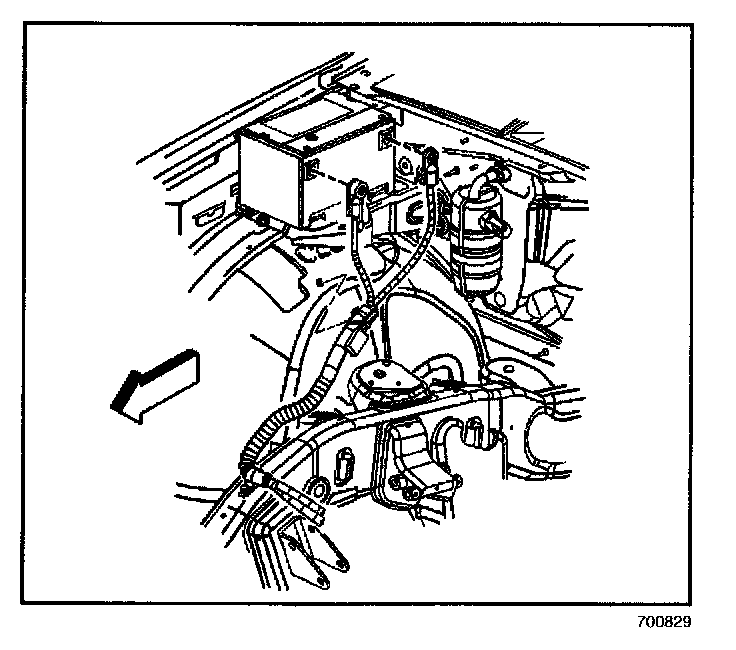

3. Remove the battery ground (negative) cable and bolt from the battery.

INSTALLATION PROCEDURE




1. Connect the battery ground (negative) cable and bolt from the battery.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the battery terminal bolt to 17 N.m (13 lb ft).




2. Set the clock to the current time and program the customer's preferred radio stations.
