Home >> Chevy Truck >> 2001 >> C 3500 HD Truck 2WD V8-8.1L VIN G >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

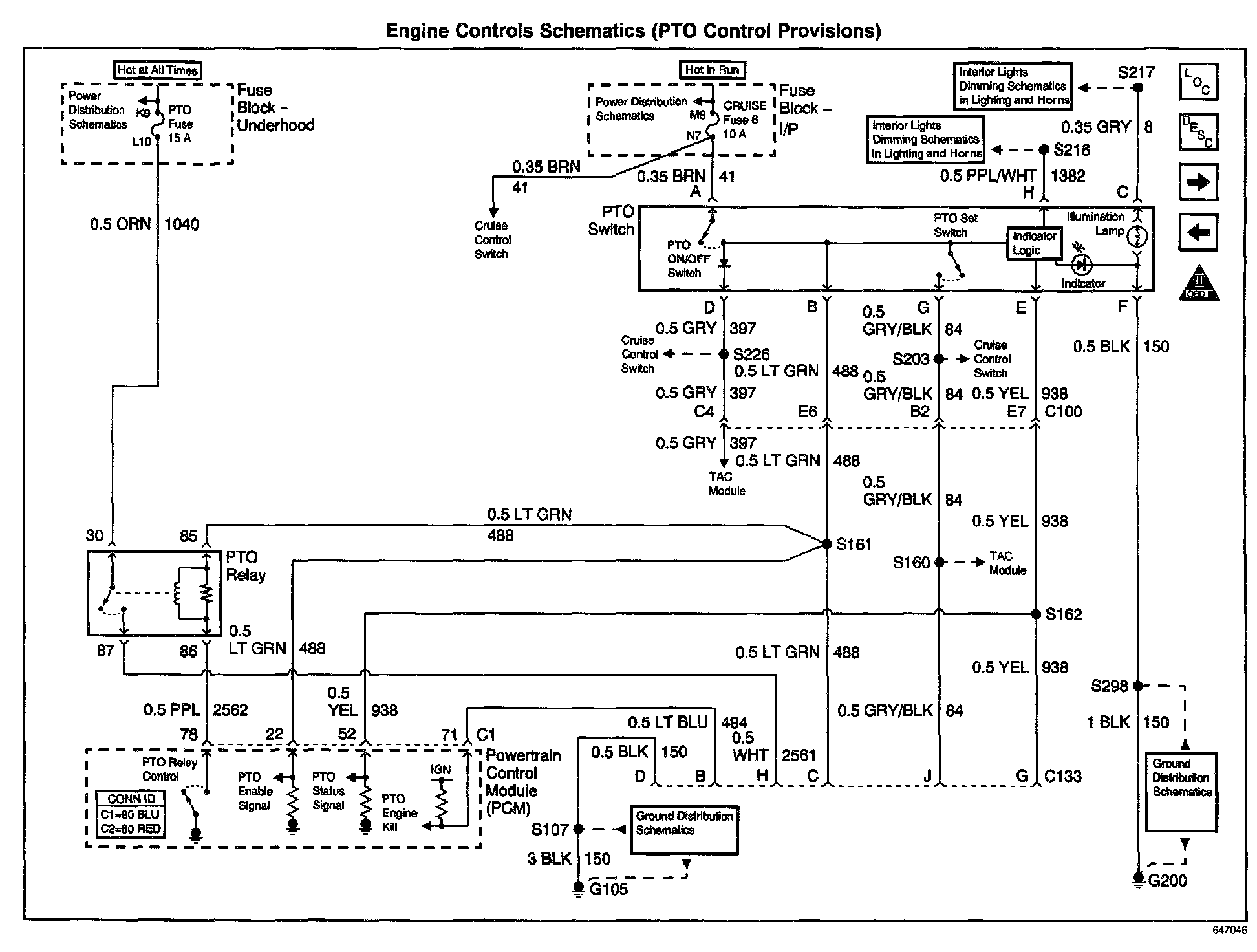

Engine Controls Schematics: PTO Control Provisions:
