Chevy Truck
>>
2001
>>
C 3500 HD Truck 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>
Connector Views
>>
Bank 2
Bank 2

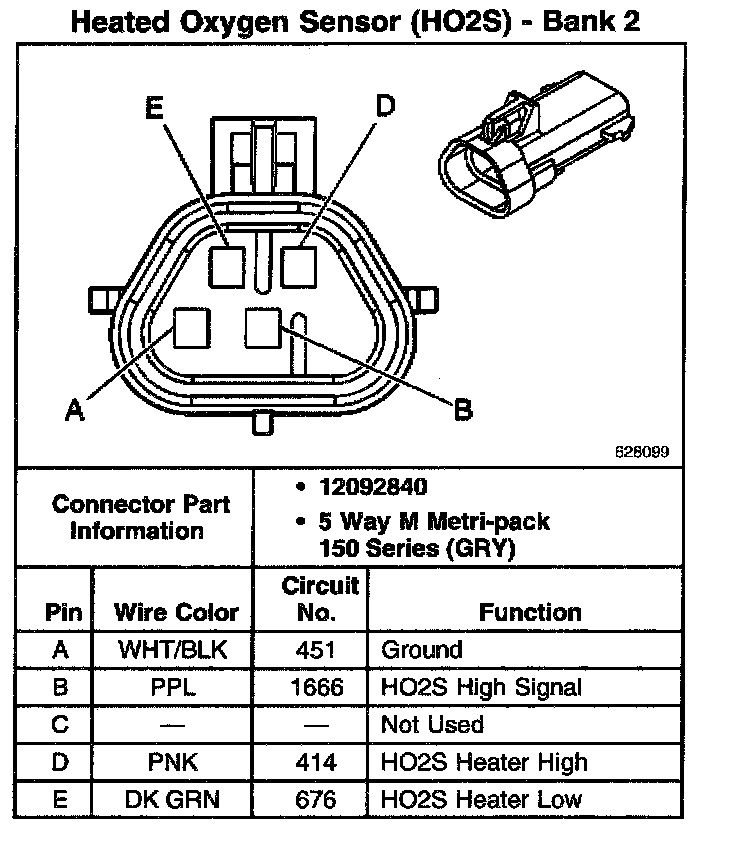

Heated Oxygen Sensor (HO2S) - Bank 2:
