Chevy Truck
>>
2001
>>
C 3500 HD Truck 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diode
>>
Locations
Diode: Locations

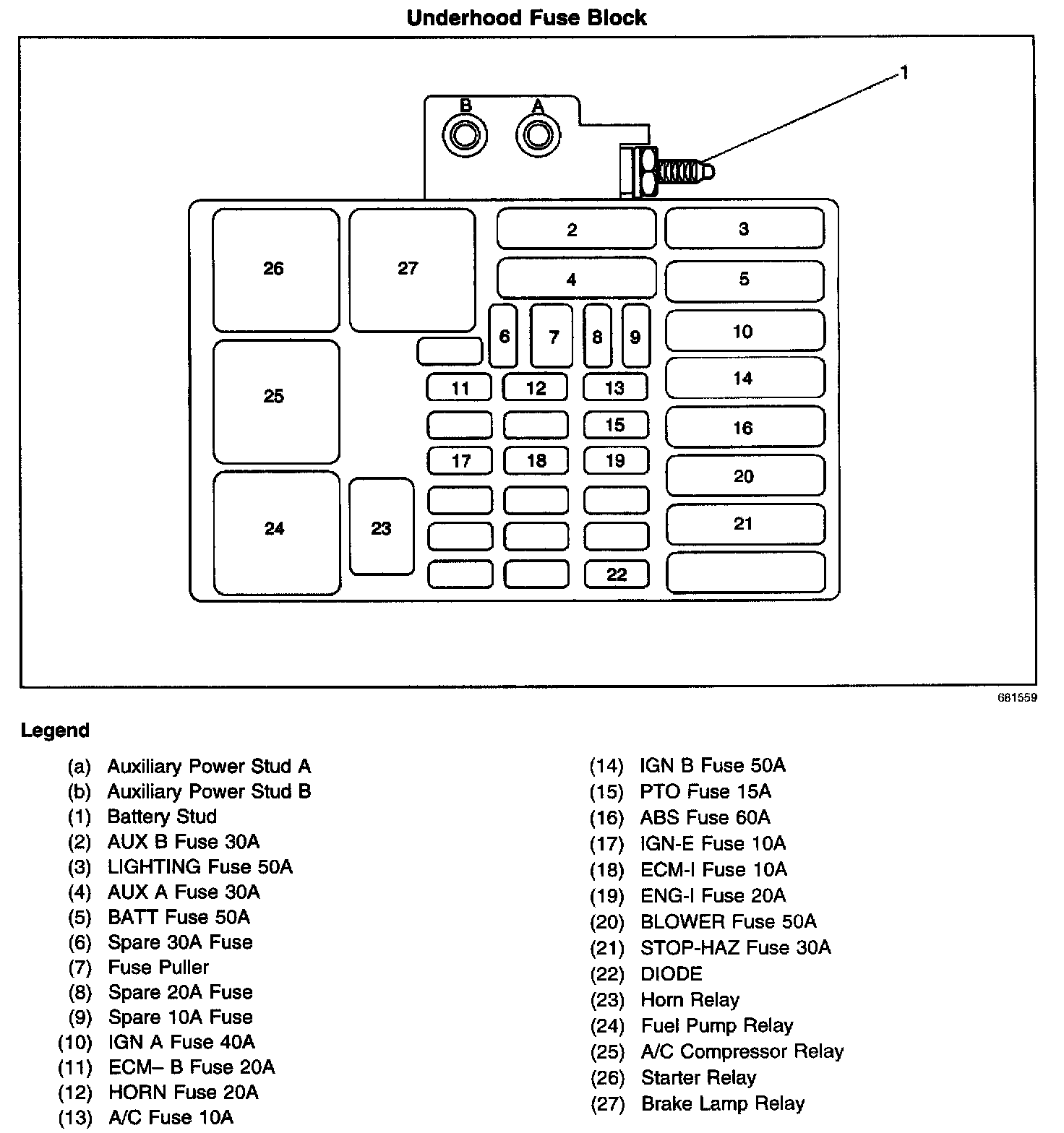

Locations View:
In the underhood fuse-relay center, in the left rear side of the engine compartment, on the fender
