Home
>>
Chevy Truck
>>
2001
>>
C 3500 HD Truck 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Convenience Center
>>
Rear View
Rear View

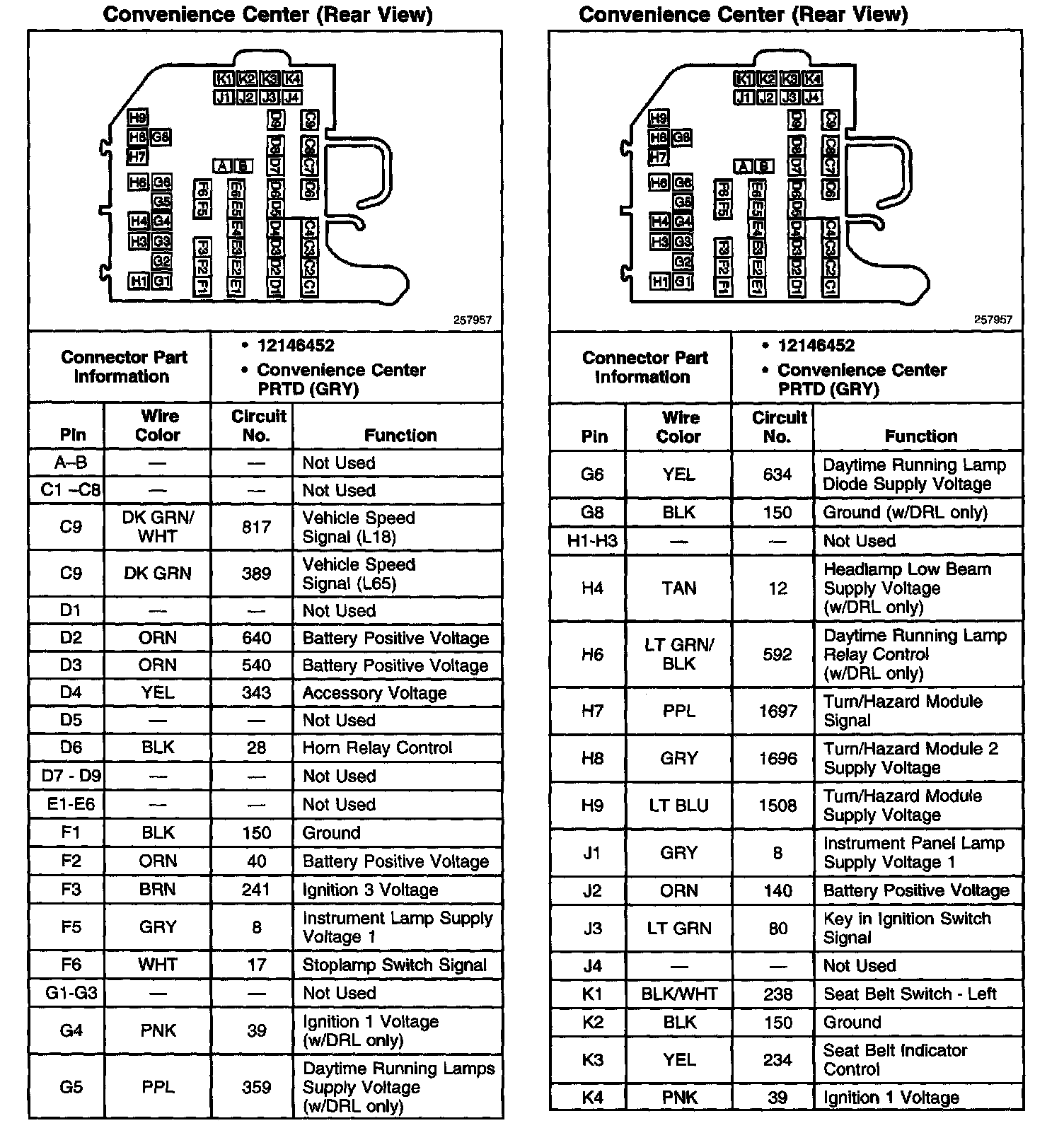

Convenience Center (Rear View):
