Generator Replacement

REMOVAL PROCEDURE




1. Disconnect the batteries negative cable.
2. Disconnect the terminal plug from the back of the generator.
3. Disconnect the battery lead from the back of the generator.
4. Remove the drive belt from the generator.

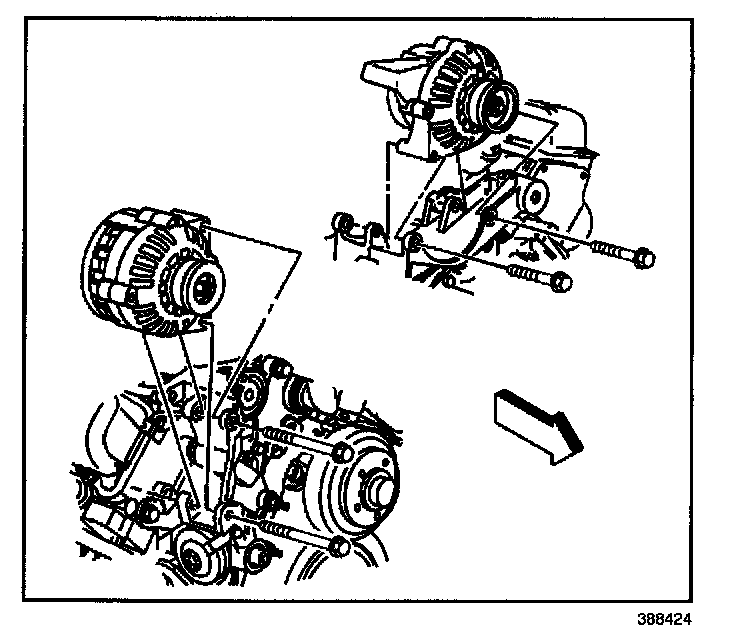

5. Remove the generator mounting bolts holding the generator to the bracket.
6. Remove the generator.

INSTALLATION PROCEDURE




1. Install the generator.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the generator mounting bolts.

Tighten
Tighten the generator mounting bolts to 50 N.m (37 lb ft).

3. Install the drive belt to the generator.




4. Connect the battery lead to the back of the generator.

Tighten
Tighten the battery terminal nut to 8 N.m (71 lb in).

5. Connect the terminal plug to the back of the generator.
6. Connect the battery negative cable.
