Glow Plug - Bank 2
TOOLS REQUIREDJ 39083 Glow Plug Connector Remover and Installer
REMOVAL PROCEDURE
1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the right front tire.
3. Remove the splash shield from the right front wheel well.
4. Remove the lead wire from the glow plug in cylinder (2).
5. Remove the lead wires for glow plugs in cylinders 4 and 6 at the harness connectors.
6. Remove the heat shroud for the glow plug in cylinder 4.
7. Remove the heat shroud for cylinder 6.
^ Slide the shrouds back far enough to allow access for unplugging the wires at cylinders 4 and 6 glow plugs.
^ Use the J 39083 and installer in order to disconnect the glow plug wires.

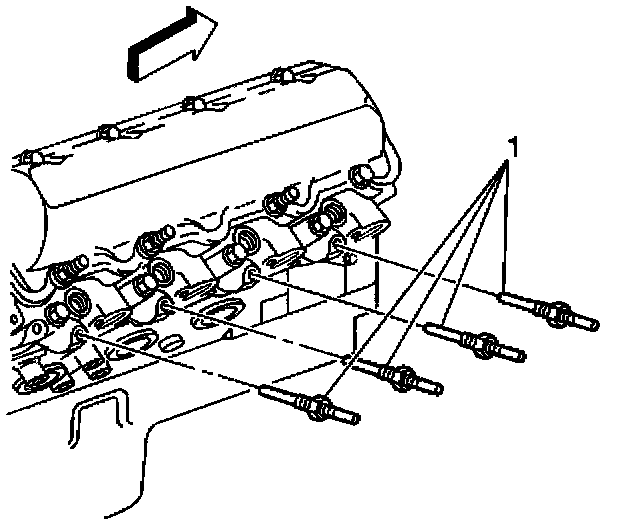

8. Remove the glow plugs (1) from cylinders 2, 4, and 6.
9. Disconnect the lead wire at the glow plug from cylinder 8 by reaching up from underneath the vehicle.
10. Remove the glow plug from cylinder 8.
For easier access to glow plugs on cylinders 6 and 8, remove the exhaust down pipe from turbocharger.
INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.
1. Install the glow plug into cylinder 8.
Tighten
Tighten the glow plugs to 17 N.m (13 lb ft).
2. Install the lead wire to cylinder 8 glow plug.
3. Install the glow plugs into cylinders 2, 4, and 6 by reaching through the right front wheel well.
Tighten
Tighten the glow plugs to 17 N.m (13 lb ft).
4. Install lead wire to glow plug 6.
^ Slide the shroud over the wire lead and fasten to the studs.
^ Repeat Step 4 for the cylinder 4 glow plug.
Tighten
Tighten the heat shroud nuts to 23 N.m (17 lb ft).
5. Install the wires for glow plugs in cylinders 4 and 6 to connectors at the wire harness.
6. Install the lead wire for cylinder 2 glow plug
7. Install the splash shield in the right front wheel well.
8. Inspect the wire routing, making sure the lead wires are not rubbing against the exhaust manifold or any part that may harm the wire insulation.
9. Install the right front tire.
