Mode Control Cable Replacement
MODE CONTROL CABLE REPLACEMENTREMOVAL PROCEDURE
1. Remove the Instrument Panel (IP) bezel.
2. Remove the radio.

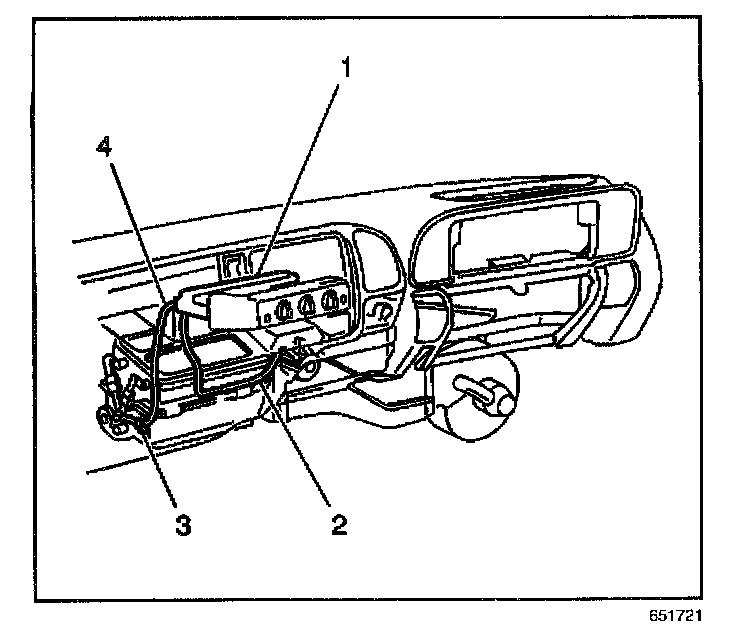

3. Remove the heater control assembly (1).

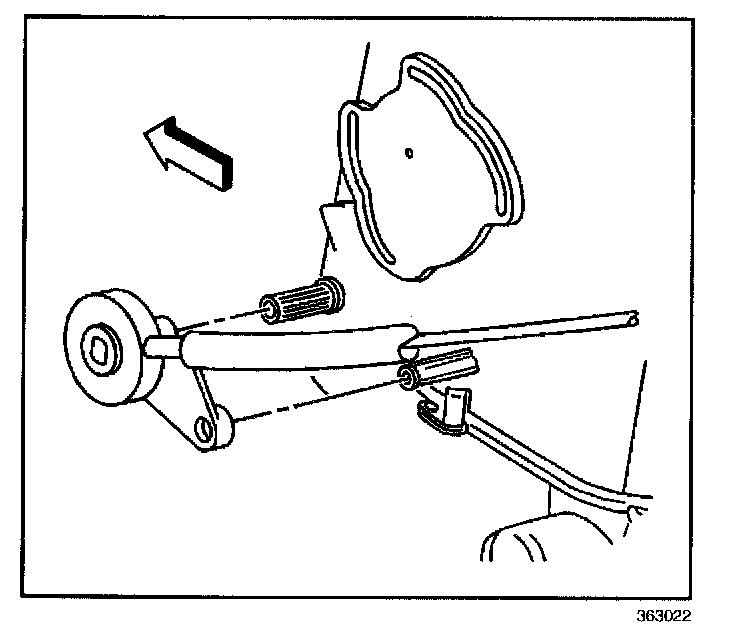

4. Disconnect the mode cable from the HVAC module.

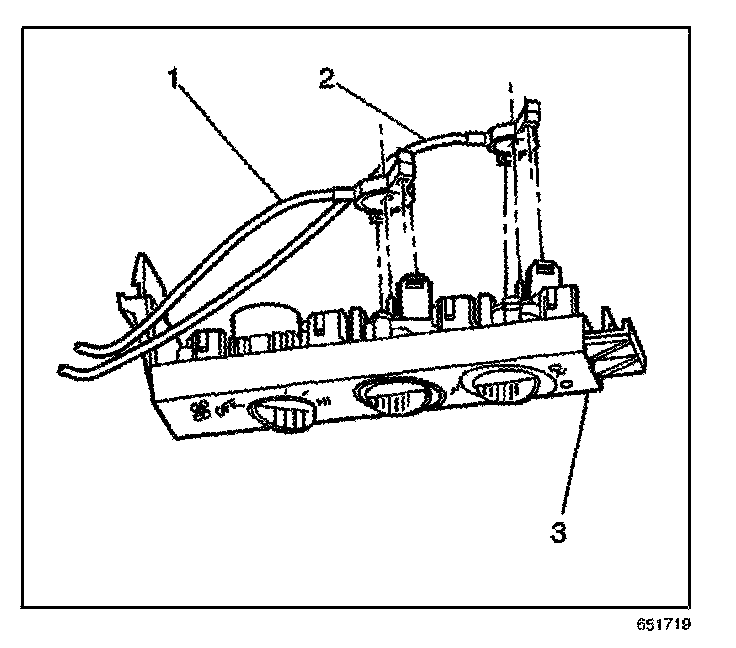

5. Remove the mode cable (2) from the heater control assembly (3).
6. Remove the mode cable from the IP carrier.
INSTALLATION PROCEDURE
IMPORTANT: Verify the following conditions before performing the installation procedure:
- Ensure that the center and RH control dials are fully rotated counter-clockwise.
- Ensure that the heater module large door is open.
- Ensure that the heater module small door is closed.
1. Install the mode cable to the IP carrier.
2. Install the mode cable (2) to the heater control assembly (3).
3. Connect the mode cable to the HVAC module.
4. Install the heater control assembly (1).
5. Install the radio.
6. Install the IP bezel.
