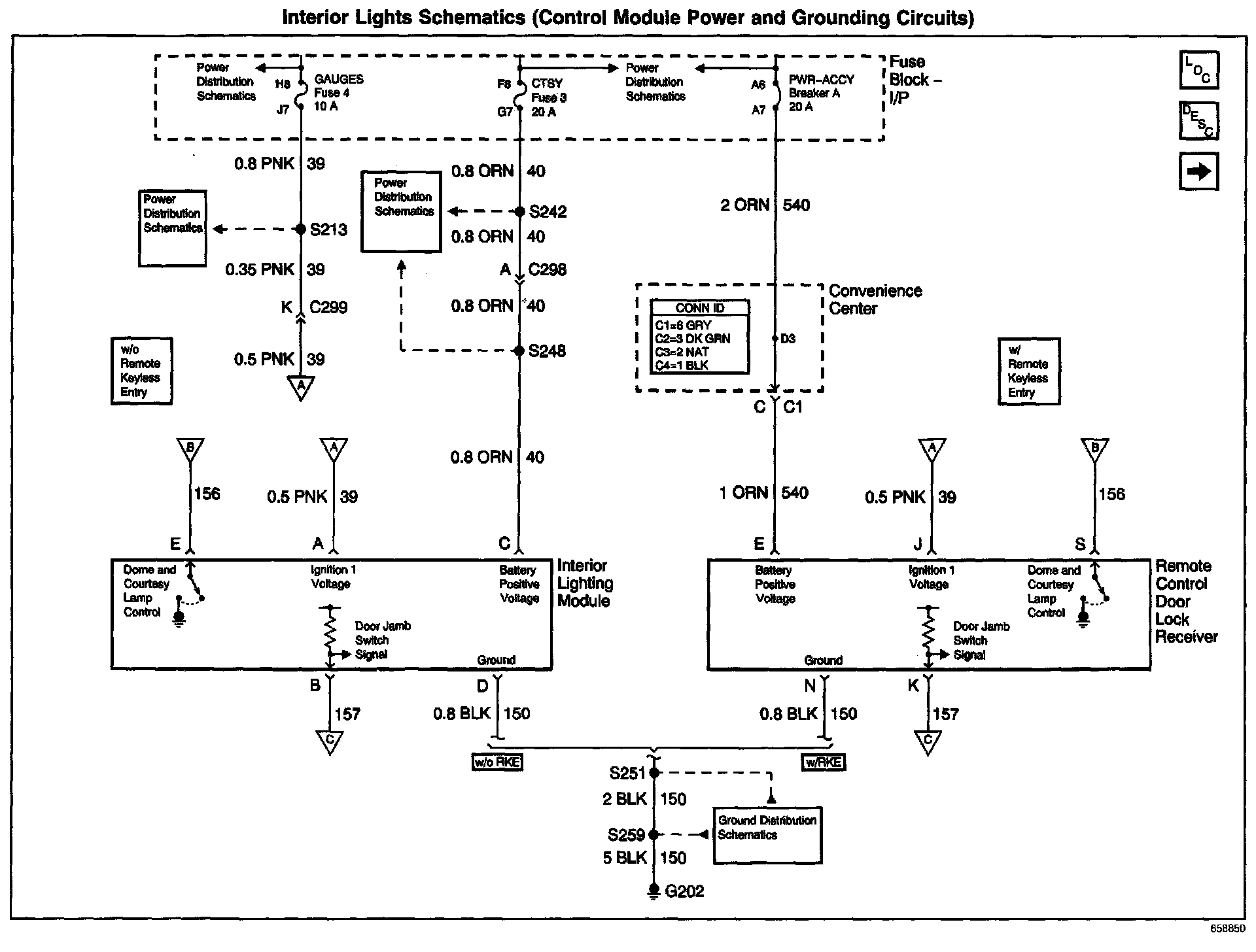

Control Module Power and Grounding Circuits

Interior Lights Schematics: Control Module Power And Grounding Circuits:
