Chevy Truck
>>
2001
>>
C 3500 HD Truck 2WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
HVAC Control Assembly - C1
HVAC Control Assembly - C1

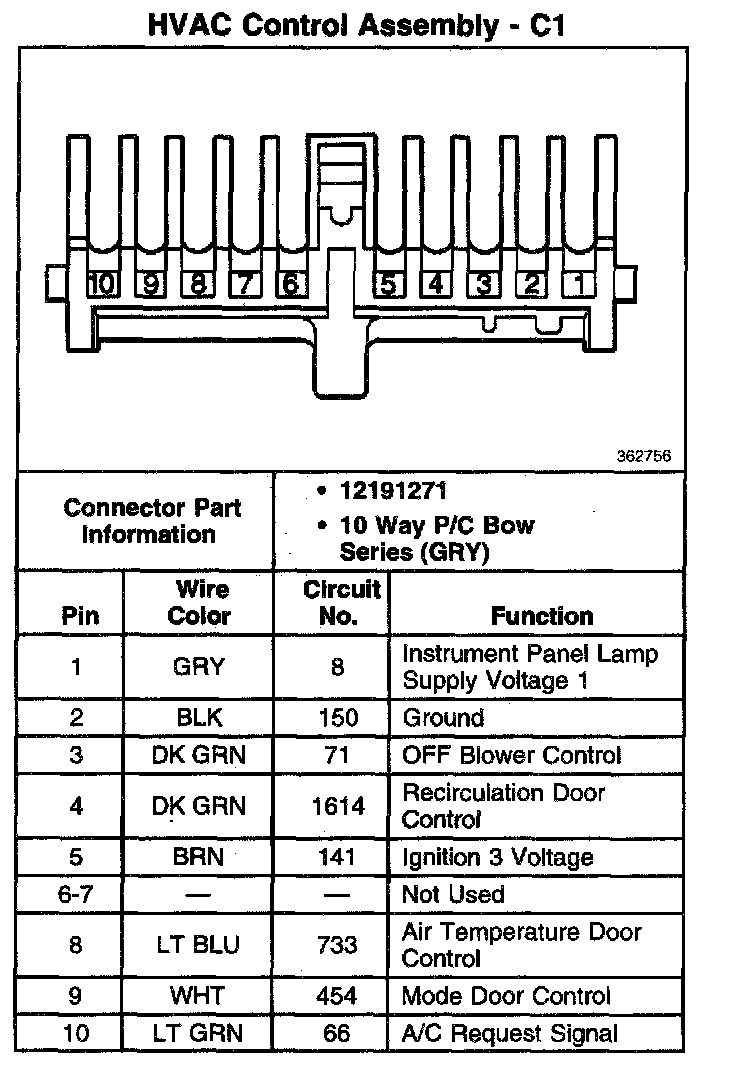

HVAC Control Assembly - C1:
