Brake Pads Replacement - Front
Brake Pads Replacement - FrontRemoval Procedure
Notice: Support the brake caliper with heavy mechanic's wire, or equivalent, whenever it is separated from it's mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
1. Remove the caliper.

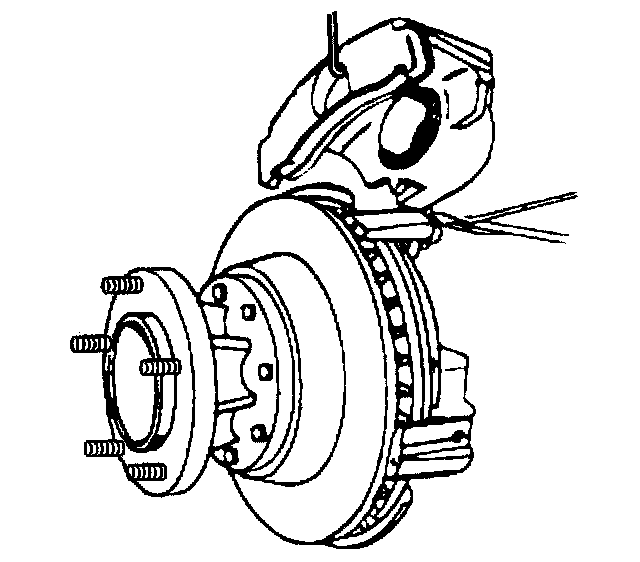

2. Suspend the caliper.

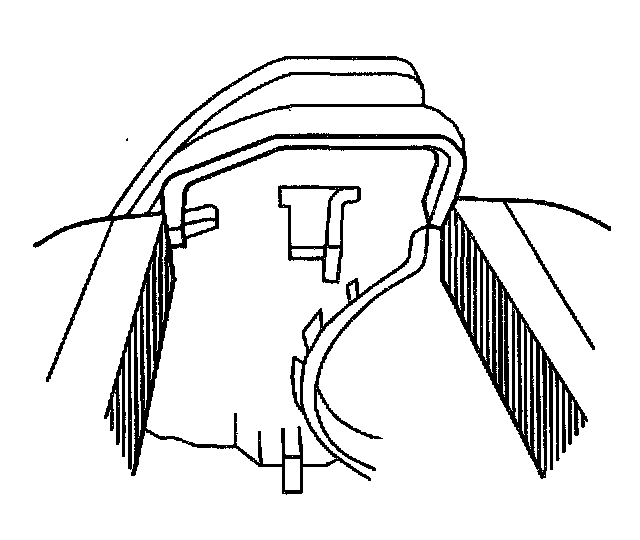

3. Remove the inboard lining.
4. Remove the outboard lining.

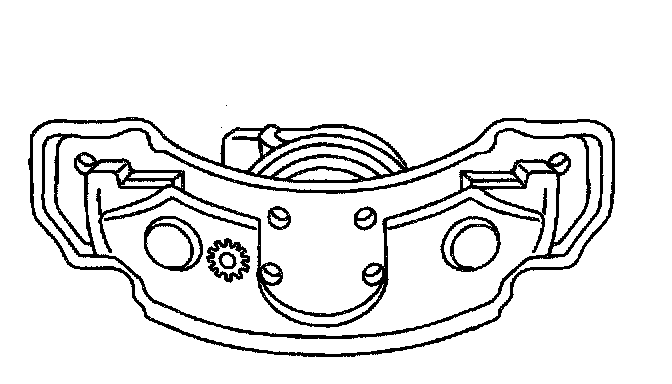

5. Inspect the caliper assembly for signs of fluid leakage. If any leakage is detected refer to Brake Caliper Overhaul - Front.
6. Use a wire brush to remove any corrosion from the machined surfaces of the steering knuckle and the caliper.
Installation Procedure
1. Lubricate the caliper and the steering knuckle, or support, sliding surfaces and the spring with Shell Aeroshell(R) #5 or the equivalent.
2. Place the new pad in a vise.
3. Compress the vise as needed to obtain a secure fit between the outer brake pad and the caliper.

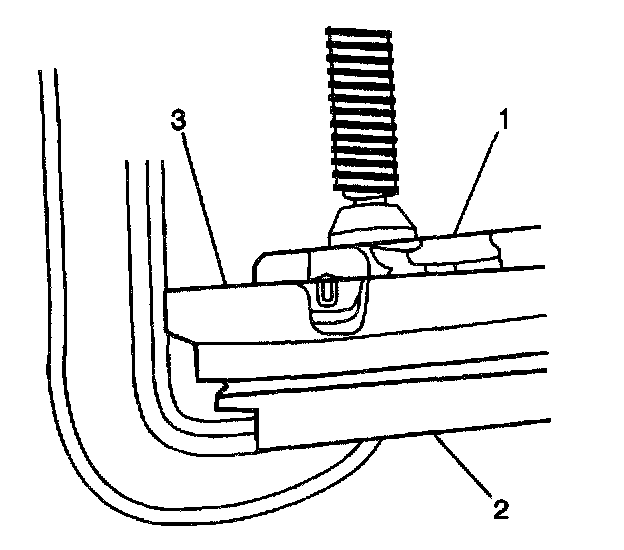

4. Install the outer brake pad (3) onto the caliper (1).
^ If it is necessary use a C-clamp to install the pad onto the caliper.
^ Do not allow the C-clamp to come into contact with the lining.
^ Insert a used brake pad between the C-clamp and the new brake lining.

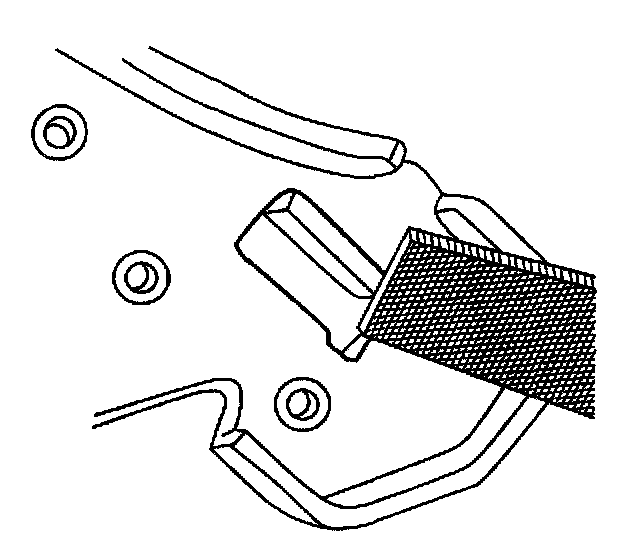

5. File the leading edge of the brake pad tang to aid in the installation of the brake pad to the caliper.
6. Install the caliper.
7. Pump the brakes until the brake pedal is firm before moving the vehicle. Check the brake fluid level in the master cylinder after pumping the brakes.
